Mechanical CNC Turret Punch Press TC-MAX1250

Mechanical CNC Turret Punch Press TC-MAX1250

By offering the choice between of our well known TC-H series machines classical thick-turret style, Accurl proudly offers a full range of punching solutions both in performance and price range.

The user friendly Siemens 808D CNC system offers everything you need to fit the high demands in contemporary punching. The high speed control, fast processing and intuitive user interface results in an innovative system capable of handling simple as well as complex tasks. From the initial idea to the production of parts, the T Siemens 808D CNC system is your ideal partner.

Standard Equipments
• 4 Axes CNC System
• Siemens 808D CNC unit, servo motors and drivers
• Rexroth and HL hydraulic unit
• 16 Stations Turret 6 A Stations 4 B Stations 2 C Stations 4 D Station
• Repositioning of Clamps
• Automatic reference
• CAD/CAM program
• Automatic Clamping

Design to Production;
Metalix CNCCAD CAD/CAM software offersan integrated system cover to the user whichincludes the complete cycle of CNC operation.

Technical Parameters of the Mechanical Driven CNC Turret Punch Press:

Item Unit TC-MAX1250
Nominal Force kN 250
Max. Sheet Thickness mm 6.35
Max. Tool Size mm Φ88.9
Max. Sheet Size (One-time repositioning) mm 1250×2500
Punching Accuracy mm ±0.1
Max. Hit Rate h.p.m 360
Ram Stroke mm 30
Number of Tool Stations 20
Quantity of Control Shaft pcs 4(X, Y, T, C)
Machine Weight kg 11000
Overall Dimensions mm 4800×2600×2000

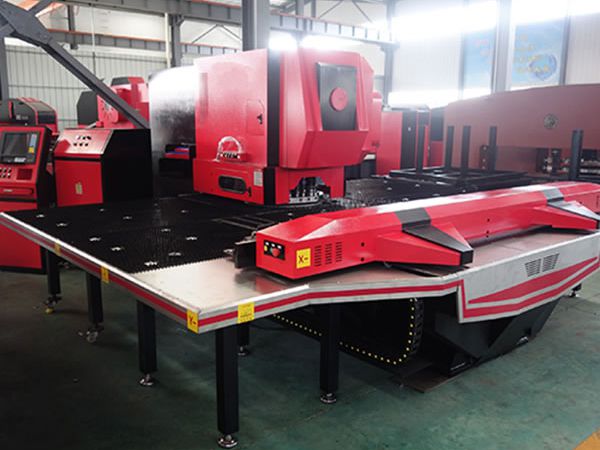

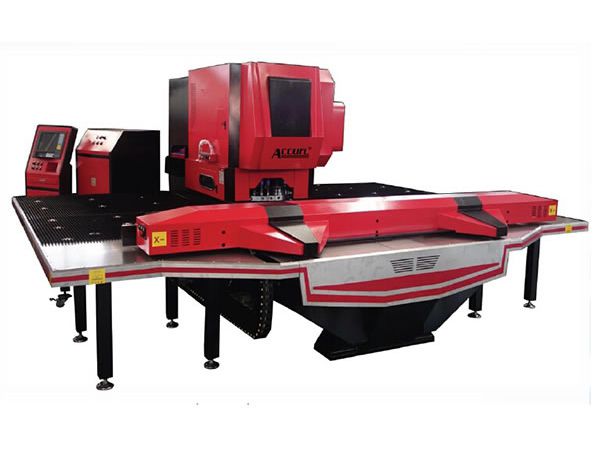

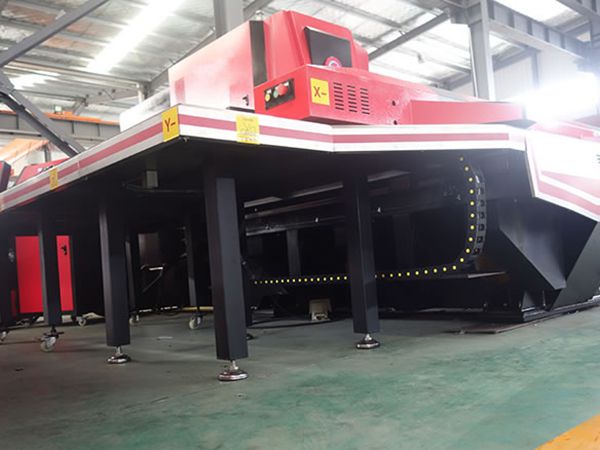

Detailed Pictures
  • Mechanical CNC Turret Punch Press TC-MAX1250
  • Mechanical CNC Turret Punch Press TC-MAX1250
  • Mechanical CNC Turret Punch Press TC-MAX1250
  • Mechanical CNC Turret Punch Press TC-MAX1250
  • Mechanical CNC Turret Punch Press TC-MAX1250
