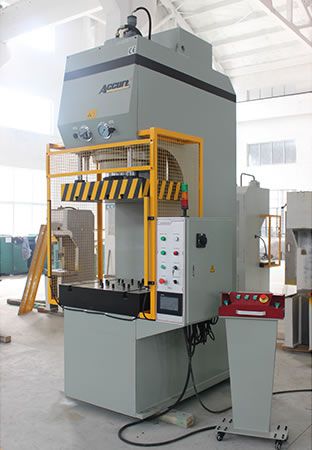

High Speed C-Type Hydraulic Press, YSK Series

High Speed C-Type Hydraulic Press, YSK Series
Request a Quote
Features
  • The C-Type High Speed Press is one of the new generation of plate process and developed by AccurL. C-frame design for large operating spaces - suitable for automatic operations forming, punching, bending, straightening and multi-press assemblies to form automatic production line.
  • Totally European design, monoblock, welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
  • Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts, slide and bolster tables with T-slots.
  • The C-frame hydraulic press uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise.
  • Main cylinder is specially designed for high velocity, motor uses less power, high ascending and descending speed, increased efficiency.
Request a Quote
  • Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch, Germany.
  • Protective fence and the safety interlock to ensure the operation safety. The hydraulic press has a movable single-hand pedal switch, easy to operate.
  • Front side covers with safety switches, back light safety guards (Category-4), foot pedal conforming to CE regulation.
  • Guiding device: the metal fabrication equipment adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain.
  • Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic.
  • This gap press uses PLC control, is flexible and safe. djustable proximity switches allows stroke adjustments in seconds.
  • All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe.
  • The metalworking machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
  • Dual control you can select to use:
    a) Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop.
    b) movable single-hand pedal switch.
  • Optional touch screen terminals offer.
    a) Data storage of mould(s) and manufacturing conditions.
    b) Reduced mould replacement time and calibration, fabrication requirements.
    c) Programmable memory for working conditions, displays pressure, stroke, spend data, etc; one cycle process sequence.
Specifications
Model
HPP-40
HPP-63
HPP-80
HPP1-100
HPP-100A
HPP-160
Capacity kN 400 630 800 1000 1000 1600
Return Force kN 80 69 115 135 135 210
Max. Hydraulic Pressure mm 25 25 25.5 25 25 26
Slide Stroke mm 400 500 500 500 500 560
Throat Depth kN 280 320 320 380 500 400
Shut
Height		 Straightening mm 600 700 700 700 750 900
Pressing mm 800 1000 1000 1000 1100 1120
Slide
Speed		 Idle Stroke mm/s 110 130 70 75 75 75
Pressing mm/s 9-22 6-14 8-18 7-15 7-15 7-15
Return mm/s 110 125 100 90 90 110
Bolster LR Straightening mm 1100 1200 1200 1400 2000 1600
Pressing mm 620 720 720 850 1000 1000
FB mm 520 600 600 720 800 720
Slide LR mm 560 620 700 700 700 700
FB mm 420 460 500 500 500 500
Bolster Height Above Floor mm 720 750 780 820 820 600
Bolster Opening mm φ120 φ150 φ180 φ200 φ200 /
Outline
Size		 LR Straightening mm 1250 1280 1350 1400 2000 1600
Pressing mm 1250 1280 1350 1400 1400 1600
FB mm 1300 1450 1550 1900 2250 2300
Above
Floor		 Straightening mm 2600 2750 2860 2920 3020 3200
Pressing mm 2800 3050 3160 3220 3370 3350
Below Floor mm / / / / / /
Main Motor Power kW 5.5 5.5 7.5 7.5 7.5 15
Weight Straightening kg 2800 4200 5300 6400 7400 11000
Pressing kg 3000 4500 5500 6800 7800 12000
Model
HPP-200
HPP-315A
HPP-315
HPP-400
HPP-500
HPP-630
Capacity kN 2000 3150 3150 4000 5000 6300
Return Force kN 240 300 300 350 580 650
Max. Working Pressure mm 25 25 25 25 25 26
Slide Stroke mm 710 800 800 800 900 1100
Throat Depth kN 500 800 1250 1250 1500 1500
Shut
Height		 Straightening mm 1120 1250 1250 1250 1500 1500
Pressing mm 1500 1600 1600 1700 1900 1900
Slide
Speed		 Idle Stroke mm/s 80 80 80 90 80 80
Pressing mm/s 5-12 7-15 7-15 5-12 7-15 7-15
Return mm/s 100 75 75 88 80 80
Bolster LR Straightening mm 1600 1800 2000 2200 2500 2500
Pressing mm 1200 1250 1400 1600 1800 1800
FB mm 800 1000 1200 1300 1400 1400
Slide LR mm 750 1250 1100 1150 1200 1200
FB mm 600 800 800 900 1000 1000
Bolster Height Above Floor mm 600 400 400 400 400 400
Bolster Opening mm / / / / / /
Outline
Size		 LR Straightening mm 1600 1800 2000 2200 2500 2500
Pressing mm 1400 1450 1500 1700 1800 1800
FB mm 3600 3600 3800 3900 4600 4600
Above
Floor		 Straightening mm 3400 4600 4700 4700 5100 5100
Pressing mm 3800 4800 4900 5000 5300 5300
Below Floor mm / 1200 1350 1400 1600 1600
Main Motor Power kW 15 30 30 30 22×2 22×2
Weight Straightening kg 16800 26000 33000 42000 51000 51000
Pressing kg 18500 28000 36000 46000 56000 56000
