Hydraulic CNC Shearing Machine

The QC12K series of hydraulic CNC shearing machines are high performance metalworking machinery. The shearing equipment can adjust blade gap by CNC with an easy to use system that lets you make precise adjustments in order to get the perfect cut every time.

Hydraulic CNC Shearing Machine

Features of the Hydraulic CNC Shearing Machine
Estun E200S user-friendly controller
Durable steel blades
Front support arm and side gauge

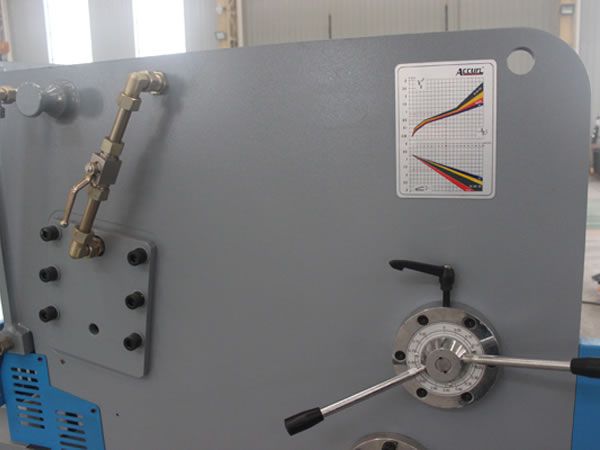

Hydraulic gap adjustment
Laser guided cutting
Angle gauge
Easy installation and training

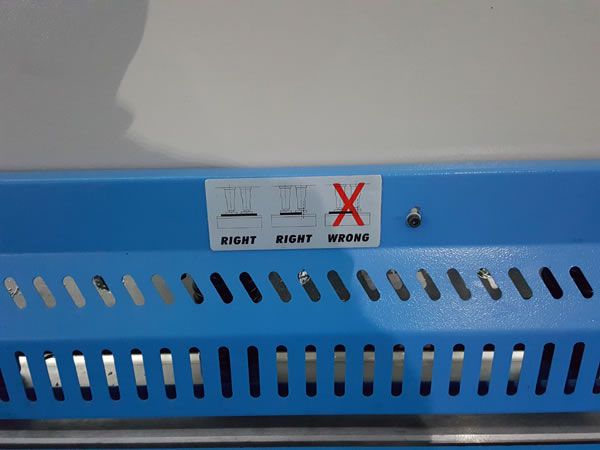

Front curtain for finger protection
Durable choice for precise cutting operations

Sheet Metal Cutting Solutions based on Your Needs
ACCURL CNC Shears are designed to meet all of your fabricating needs when fast and flexible cuts are necessary. Metal fabrication equipment such as this can increase your production output as well as improve the quality of your metal fabrications.

Delem DAC310 CNC System - Optional Controller
User- friendly
Monochrome 130 x75mm LCD Box Panel
Cutting gap control
Programmed material types
Backgauge control and retract function
Easy configuration and operation
Rapid data input using an ergonomic keyboard with large keys.

Improved features
Blade gap and cutting length are automatically adjusted based on material type and thickness
Language selection
Protected microprocessor
Data recorded with internal SRAM memory
Upgradable using flash memory (RS 232).
Numerically programmable axis data.
16 input and output ports (24-32 options).
mm/inch conversion
EASYCUT page

Superior cutting settings
Backgauge adjustment according to blade gap.
Backgauge retraction feature.
Sub-program and programming loop.
Sequence repeat function.
Auto cutting (Flying cut).

Specifications

Model(DC/MS7) QC12K-4 × 2500 QC12K-4 × 3200 QC12K-4 × 4000 QC12K-6 × 2500 QC12K-6 × 3200 QC12K-6 × 4000 QC12K-6 × 6000
Cutting Thickness mm 4 4 4 6 6 6 6
Cutting Length mm 2500 3200 4000 2500 3200 4000 6000
Cutting Angle ° 1 ° 30' 1 ° 30' 1 ° 30' 1 ° 30' 1 ° 30' 1 ° 30' 1 ° 30'
SPM min-1 ≥ 22 ≥ 18 ≥ 12 ≥ 16 ≥ 12 ≥ 10 ≥ 7
Back Gauge mm 20-600 20-600 20-600 20-600 20-600 20-800 20-800
Throat Depth mm 85 85 85 145 145 145 140
Main Motor kW 5.5 5.5 5.5 7.5 7.5 7.5 11
Net Weight kg 3460 4280 6600 5140 6220 8520 17000
Outline Size
 (L × W × H)
mm 3100 × 1430
× 1450
3800 × 1555
× 1500
4600 × 1705
× 1600
3150 × 1500
× 1600
3850 × 1600
× 1620
4650 × 1850
× 1700
6780 × 2450
× 2100
Model(DC/MS7) QC12K-8 × 2500 QC12K-8 × 3200 QC12K-8 × 4000 QC12K-8 × 5000 QC12K-8 × 6000 QC12K-12 × 2500 QC12K-12 × 3200
Cutting Thickness mm 8 8 8 8 8 12 12
Cutting Length mm 2500 4000 3200 5000 6000 2500 3200
Cutting Angle ° 1 ° 30' 1 ° 30' 1 ° 30' 1 ° 30' 1 ° 16' 2 ° 2 °
SPM min-1 ≥ 12 ≥ 10 ≥ 10 ≥ 8 ≥ 6 ≥ 10 ≥ 9
Back Gauge mm 20-600 20-600 20-600 20-800 20-800 20-800 20-800
Throat Depth mm 145 145 145 300 300 300 300
Main Motor kW 11 11 11 18.5 18.5 18.5 18.5
Net Weight kg 5900 10200 7360 18000 21800 9000 10700
Outline Size
 (L × W × H)
mm 3180 × 1680
× 1700
3880 × 1830
× 1720
4680 × 1980
× 1780
5855 × 2260
× 2100
6880 × 2260
× 2100
3300 × 2030
× 1840
4000 × 2100
× 1940
Detailed Pictures

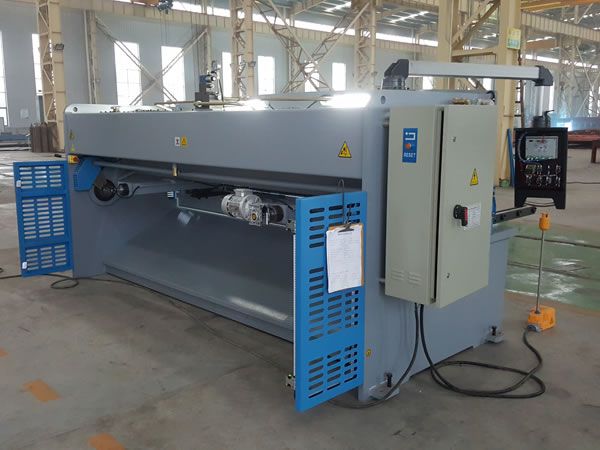

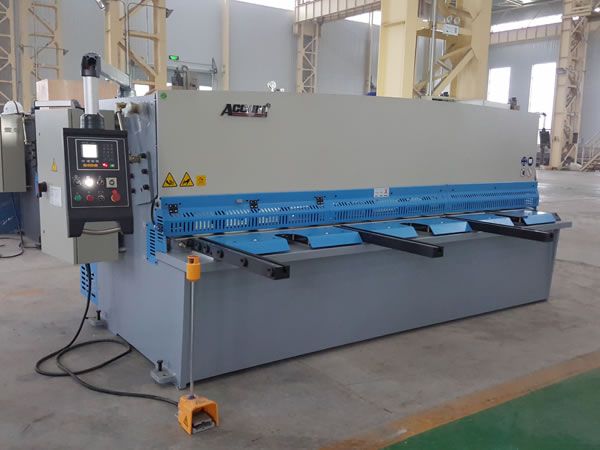

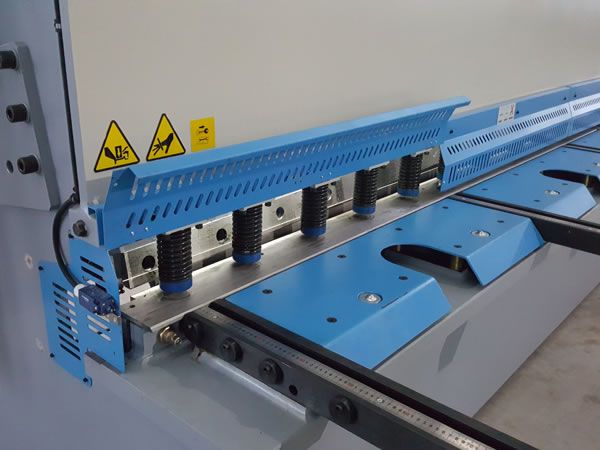

  • Hydraulic CNC Shearing Machine
  • Hydraulic CNC Shearing Machine
  • Hydraulic CNC Shearing Machine
  • Hydraulic CNC Shearing Machine
