8-Axis CNC Press Brake

ACCURL® 8 axis CNC press brake features an automatic CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and a 3D capable graphical control unit to simulate bending sequences and collision points.

8-Axis CNC Press Brake

• Provides a combination of performance, cost effectiveness and easy to use features
• Outstanding Value! Best brake for the money on the market.
• User friendly DELEM DA66T CNC control unit and Profile 3D software
• Precise bending results
• Tough construction with the same solid framework we use for all ACCURL 8-Axis CNC Press Brakes
• Large daylight opening allows the entire length of the machine to be put to optimal use
• Designed and built with the objective to help you achieve low cost manufacturing
• Standard 8 axis X1, X2 , R1 , R2 , Z1, Z2, Y1, Y2 for CNC Press Brake Machine

Standard Equipment:
• Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.
• Delem DA66T 3D/2D graphical touch screen controller
• BGA-6 for Back gauge system with X1, X2, R1, R2, Z1, Z2 axis driven by AC servo with colored graphics.
• HOERBIGER servo hydraulic system.
• CNC controlled motorized anti-deflection system.
• Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).
• Easy to clamp tool holding system with upper and lower tools.
• Ergonomic user friendly, pendant control panel.
• Back light safety guards (category-4)
• Front side covers with safety switches.
• Synchronization of Y1+Y2 axis provided by linear encoders with 0.01 mm tolerances.
• Foot pedal suitable to CE regulation.
• Sliding front support arms with T slot and mm/inch rulers.
• Electrical panel with cooling system designed to meet CE standards & comprised of Siemens automatic and electrical equipment

Optional Equipment:
• Graphical controllers; Cybelec ModEva RA Premium 3D with PC-RA Premium offline software, Delem DA-69T 3D graphical color controller with Profile T3D offline software.
• SICK C4000 advanced finger protections 14 mm (easy programmable Sick software with PC: Blanking, reduced resolution, cascade working etc.)
• Laser protection system for die area, LASERSAFE PCSS, AKAS LASER SAFETY IILC2000, Sick V 4000 (Camera based system), DSP electric laser safety.
• Laser angle measurement system, with Data-M cobra laser check system.
• Hydraulic and Dynamic-Hydraulic anti-deflection (crowning) features.
• ACCURL top tool clamping system. Hydraulic top and bottom tool clamping system.
• CNC controlled bending supports (AP1+AP2 axis).
• Hydraulic oil coolant and oil heaters.
• Automatic central lubrication system.
• Special throat depth (500,600,750 mm and above).
• Special top and bottom tools.
• Software options.
• Tandem applications.
• Tool cabinets.

Specification
Model(EURO PRO) B1560 B2580 B32110 B32135 B32175 B40175 B32220
Bending force KN 600 800 1100 1350 1750 1750 2200
Bending Length mm 1500 2500 3200 3200 3200 4200 3200
Between Columns mm 1100 2060 2700 2700 2700 3700 2700
Daylight mm 405 405 430 430 430 430 430
Slide Stroke mm 200 200 200 200 200 200 200
Throat Depth mm 370 400 400 400 400 400 400
Bolster Width mm 80 80 100 100 100 100 140
Down Speed mm/min 200 200 180 180 160 160 160
Pressing Speed mm/min 8 8 10 10 10 10 10
Return Speed mm/min 180 180 150 150 150 150 140
Back Gauge Stroke mm 500 600 800 800 800 800 800
Outline Size L mm 1825 2825 3500 3550 3500 4500 3500
W mm 1650 1650 1650 1650 1650 1650 1730
H mm 2300 2350 2650 2700 2700 2750 2900
Weight kg 4600 5600 8000 9500 10000 12000 13200

The best bending results! Users can bend longer and deeper parts with the standard Euro Pro B series!

Detailed Pictures

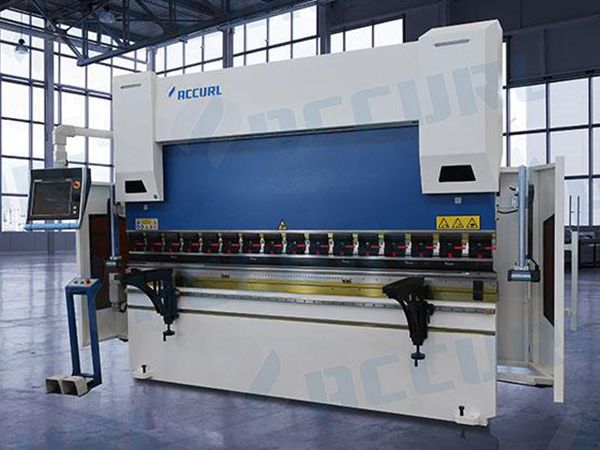

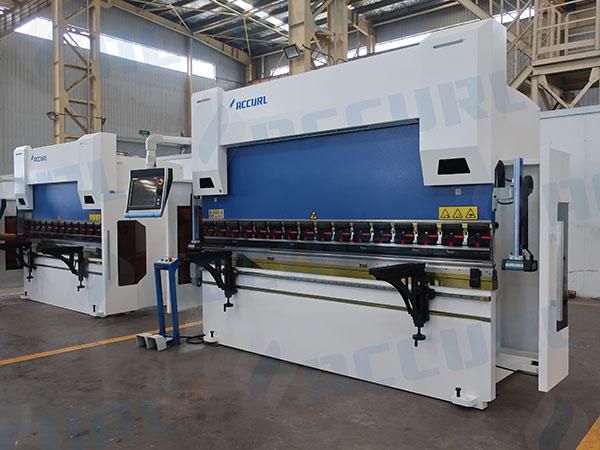

  • CNC 8 Axis Press Brake Machine with DELEM DA-66T 3D2D graphical CNCCNC 8 Axis Press Brake Machine with DELEM DA-66T 3D2D graphical CNC

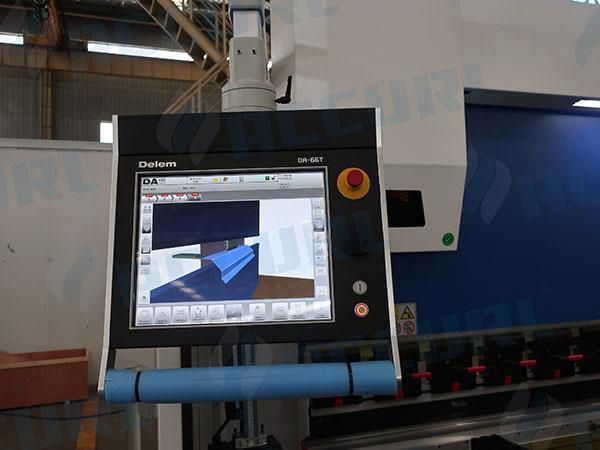

  • DELEM DA66T CNC System for Press BrakeDELEM DA66T CNC System for Press Brake

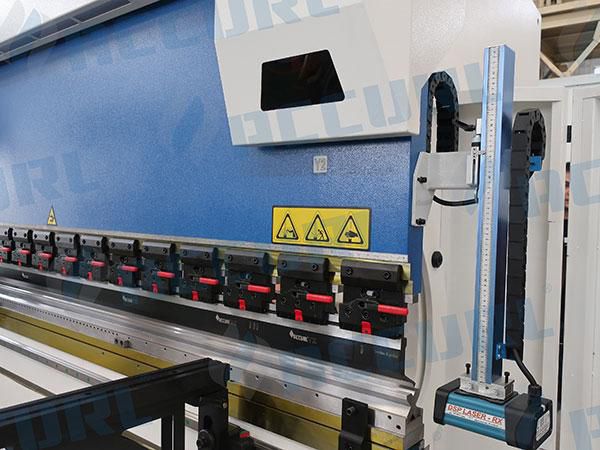

  •  DSP Lazersafe for Accurl CNC Press Brake DSP Lazersafe for Accurl CNC Press Brake

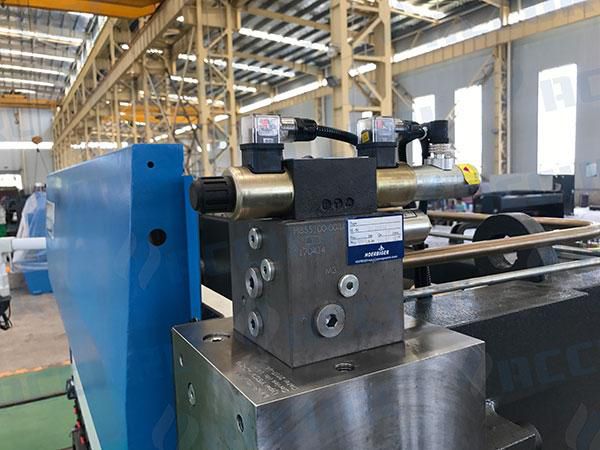

  •  HOERBIGER servo hydraulic system HOERBIGER servo hydraulic system

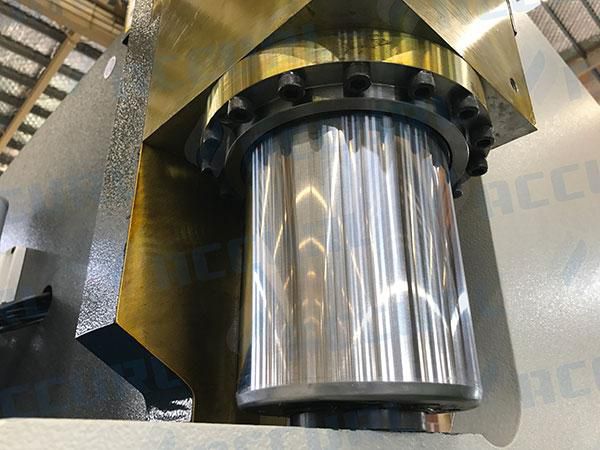

  • Hydraulic cylinder with German Trumpf technologyHydraulic cylinder with German Trumpf technology

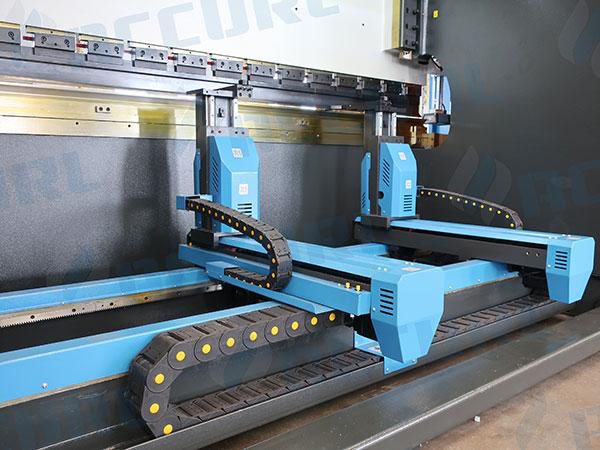

  • Press Brake with CNC Back Gauge for X1 X2 R1 R2 Z1 Z2-axisPress Brake with CNC Back Gauge for X1 X2 R1 R2 Z1 Z2-axis
