C-Frame High Speed Hydraulic Press

with HMI Control

C-Frame High Speed Hydraulic Press with HMI Control
Characteristics
  • C-frame structure enjoys outstanding rigidity. Each press is designed through Finite Element Structural Analysis and optimization to assure high strength and rigidity.
  • Main cylinder is specially designed for high velocity, motor uses less power, high ascending and descending speed, increased efficiency. (Such technology is introduced from Taiwan.)
  • C-frame are made of high strength alloy steel with hard chromium plated surface featuring good wear-resistance.
  • The main hydraulic and electric parts adopt brand-name components from Japan, France, Germany and Taiwan, so the machine enjoys high reliable performance.
  • Mitsubishi PLC +Touch Screen (HMI) integrated control. There are 3 operation manners, adjustable, manual and semi-automatic.
  • Designed with adjustable drawing speed, the machine is applicable for various thickness metalworking and deep drawing.
  • The Press fully meets CE safety requirements.
  • The slide has fast speed and high productive efficiency.
Request a Quote
High Reliability
  • Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,
  • The entire equipment totally security (according to EN292:1994, EN60204:1994 and NR12) and defined as Level 4 of safety.
  • Intrinsic hydraulic safety valve block with redundant control and dynamic monitoring carried out by a security interface
  • Right side protection: vertical door, pneumatic actuating, made of aluminium frame and polycarbonate transparate plates.
Applications

Deep draw press is applied in production techniques, like deep drawing, stamping, cutting, bending, flanging of metal sheet.
Particularly applied in the following industries:

  • Automobile Industry: steel ring, vehicle body, chasis, axle housing, fuel tank, door and many more.
  • Household Appliance Industry: Components for air conditioner, refrigerator, washing machine, electric cooker etc.
  • Kitchen Ware Industry: stainless steel utensil, gas cylinder, stainless steel sink, cooking bench, etc.
  • Aluminum Cookware.
  • Steel Plate Straightening & Bending
Control function
  • Double hand action button + Emergency Button 4-Category
  • Control panel with manual override to change and tool setting;
  • Course setting for inductive sensor with fine tuning;
  • Monitor the Press working process
  • limitation of working stroke, for particular drawing operations
  • with upper triple action (both active and passive)
  • with drawing from the bottom
  • Light curtain, protection grid and monitored block (according to local regulations);
Standard Equipment
  • Delta HMI (Human Machine Interface)
  • PLC (Programmable Logic Controller)
  • Ruler Transducer position (adjustable HMI);
  • Germany Bosch-Rexroth Hydraulic
  • Telemecanique/Schneider Electrics
  • Hydraulic and Electrical overload protection
  • Forced air cooling system
  • Safety light curtain protection
  • Side metal barrier protection
Optional
  • Die Change Trolley
  • Mould Hydraulic clamping
  • Oil Cooler Machine
  • Safety Light Curtain
  • Pressure transducer (adjustable HMI);
  • Cushion Device for anti-shock while stamping
  • Stamping Dampers for shock proof while stamping
  • Air breathing design as per request
C-Frame High Speed Hydraulic Press with HMI Control
Specifications
Model
HPP-40
HPP-63
HPP-80
HPP1-100
HPP-100A
HPP-160
Capacity kN 400 630 800 1000 1000 1600
Return Force kN 80 69 115 135 135 210
Max. Hydraulic Pressure mm 25 25 25.5 25 25 26
Slide Stroke mm 400 500 500 500 500 560
Throat Depth kN 280 320 320 380 500 400
Shut Height Straightening mm 600 700 700 700 750 900
Pressing mm 800 1000 1000 1000 1100 1120
Slide Speed Idle Stroke mm/s 110 130 70 75 75 75
Pressing mm/s 9-22 6-14 8-18 7-15 7-15 7-15
Return mm/s 110 125 100 90 90 110
Bolster LR Straightening mm 1100 1200 1200 1400 2000 1600
Pressing mm 620 720 720 850 1000 1000
FB mm 520 600 600 720 800 720
Slide LR mm 560 620 700 700 700 700
FB mm 420 460 500 500 500 500
Bolster Height Above Floor mm 720 750 780 820 820 600
Bolster Opening mm φ120 φ150 φ180 φ200 φ200 /
Outline Size LR Straightening mm 1250 1280 1350 1400 2000 1600
Pressing mm 1250 1280 1350 1400 1400 1600
FB mm 1300 1450 1550 1900 2250 2300
Above Floor Straightening mm 2600 2750 2860 2920 3020 3200
Pressing mm 2800 3050 3160 3220 3370 3350
Below Floor mm / / / / / /
Main Motor Power kW 5.5 5.5 7.5 7.5 7.5 15
Weight Straightening kg 2800 4200 5300 6400 7400 11000
Pressing kg 3000 4500 5500 6800 7800 12000
Configuration list
No. Item Standard MAKE High Standard MAKE
1 PLC Mitsubishi Siemens
2 Motor WanNan/China top brand Siemens / Rexroth
3 Pump Anson/Taiwan, Yuken/Japan Siemens / Rexroth
4 Servo Pump DAIKIN/Japan DAIKIN/Japan
5 Directional Valve Yuken/Japan Atos/Italy, Rexroth
6 Proportional Valve) Yuken/Japan Atos/Italy, Rexroth
7 Cartridge Valve Jeou Gang/Taiwan,SUN/USA SUN, Atos, Rexroth
8 Prefill Valve TAI COLN/Taiwan Atos/Italy, Rexroth
9 Electric Units Schneider/France Schneider/France
10 Light Curtain LNTECH with CE Mark LNTECH with CE Mark
11 Touch Screen(HMI)9 Weinview/Taiwan Siemens
12 Pressure Gauge SKON/Taiwan S KON/Taiwan
13 Hydraulic Manifold MADE IN TAIWAN MADE IN TAIWAN
No worse quality components are adopted in ACCURL Presses.

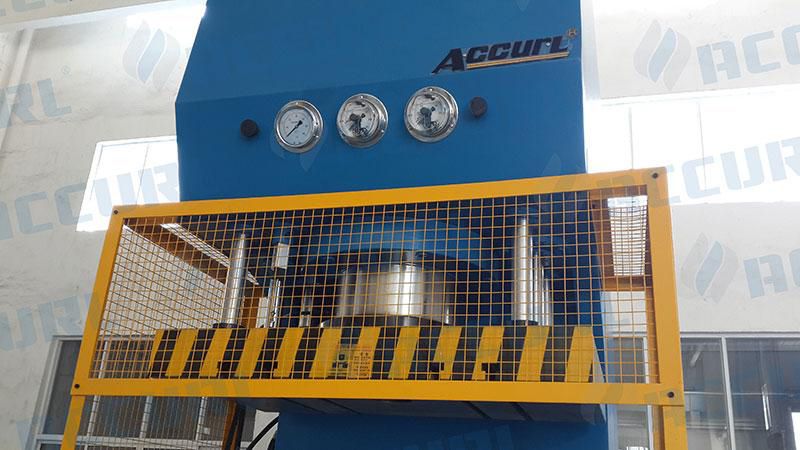

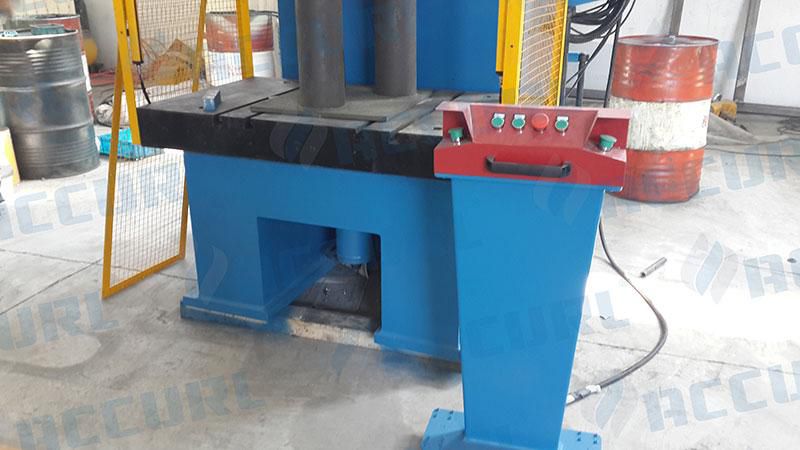

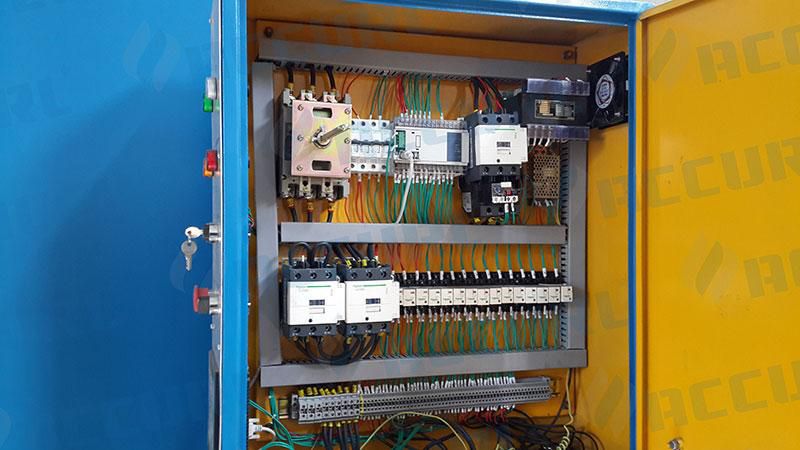

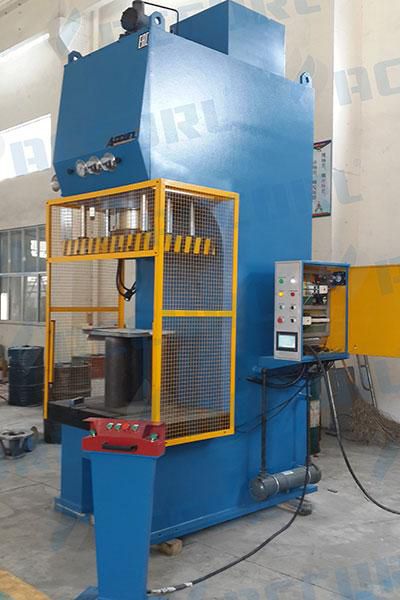

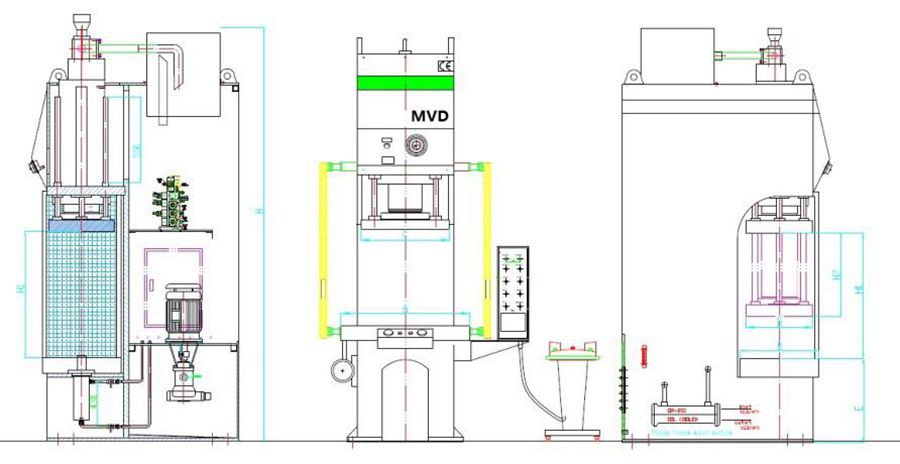

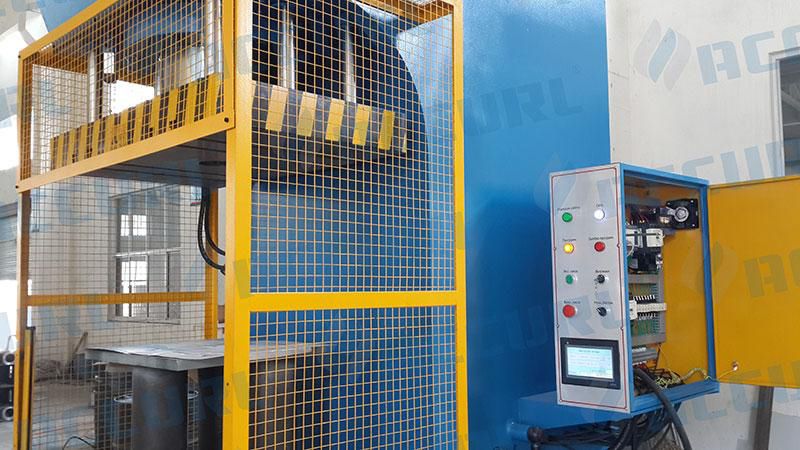

Detailed Pictures
  • C-Frame High Speed Hydraulic Press with HMI Control
  • C-Frame High Speed Hydraulic Press with HMI Control
  • C-Frame High Speed Hydraulic Press with HMI Control
  • C-Frame High Speed Hydraulic Press with HMI Control
