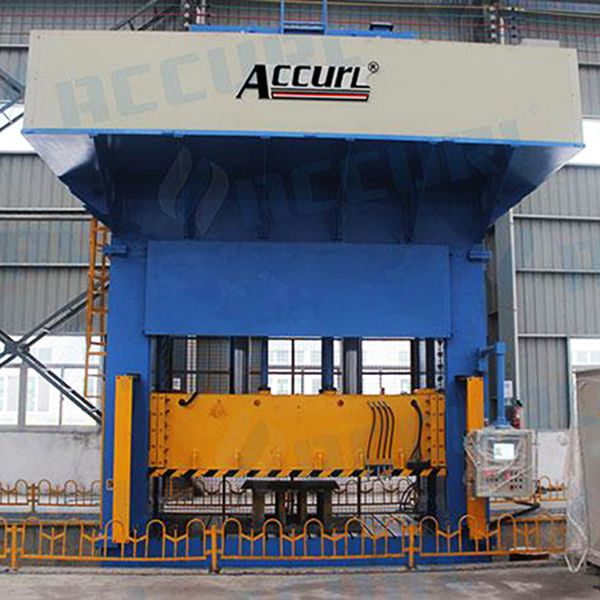

H Frame Hydraulic Compression Moulding Press

H Frame Hydraulic Compression Moulding Press
Applications

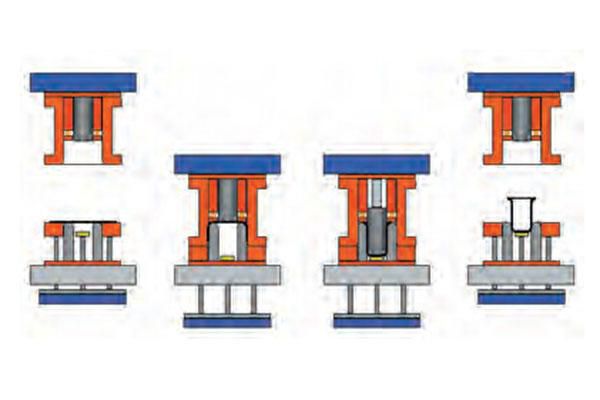

Deep draw press is applied in production techniques, like deep drawing, stamping, cutting, bending, flanging of metal sheet.
Particularly applied in the following industries:

  • Automobile Industry: Steel ring, vehicle body, chasis, axle housing, fuel tank, door, wheelbarrow tray and more.
  • Household Appliance Industry: Components for air conditioner, refrigerator, washing machine, electric cooker etc.
  • Kitchen Ware Industry: Stainless steel utensil, LPG cylinder, cooking bench, etc.
  • Aluminum Cookware.
Request a Quote
High Reliability
  • Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,
  • The entire equipment totally security (according to EN292:1994, EN60204:1994 and NR12) and defined as Level 4 of safety.
  • Intrinsic hydraulic safety valve block with redundant control and dynamic monitoring carried out by a security interface
  • Right side protection: vertical door, pneumatic actuating, made of aluminium frame and polycarbonate transparate plates.
Specifications
  • H Frame Hydraulic Compression Moulding Press
  • H Frame Hydraulic Compression Moulding Press

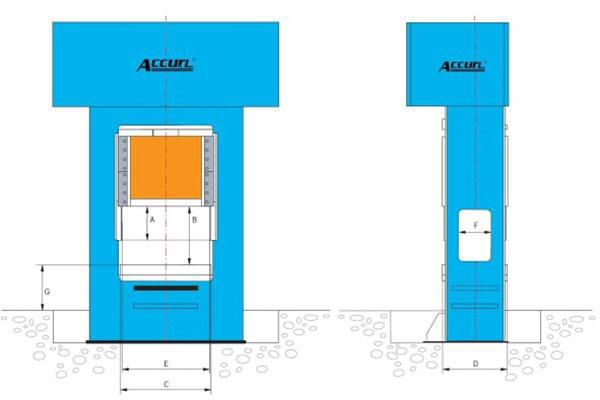

  • A = Ram stroke
  • B = Maximum installation height
  • C = Table width
  • D = Table depth
  • E = Daylight between guides
  • F = Lateral throughway
  • G = Table height above floor
Model
HSP-200
HSP-250
HSP-315
HSP-400
HSP-500
HSP-630
HSP-800
Capacity kN 2000 2500 3150 5000 4000 3150×2 8000
Return Force kN 240 400 600 900 500 450×2 1000
Slide Stroke mm 710 710 800 900 800 900 1000
Shut Height mm 1120 1120 1200 1400 1200 1500 1800
Hyd . Pad Capacity kN 630 1000 1250 2000 1250 1250×2 1600×2
Hyd . Pad Return Forc kN 250 320 360 780 360 360×2 600×2
Hyd . Pad Stroke mm 250 250 300 350 300 350 400
Slide Speed Idle Stroke mm/s 200 220 150 140 180 150 150
Pressing mm/s 8~19 9~20 10~22 8~19 9~20 8~19 8~18
Return mm/s 140 120 120 90 160 130 140
Hyd . Pad Speed Eject mm/s 60 50 55 45 60 45 45
Return mm/s 150 155 140 165 220 165 125
Bolster LR mm 1200 1200 2200 1500 1750 2500 2200
FB mm 1000 1000 1600 1200 1250 1800 1600
Hydraulic Pad LR mm 950 950 1720 1120 1270 2020 1570
FB mm 800 800 1120 820 820 1270 1120
Outline Size LR mm 3280 3380 4700 3900 4250 5100 4900
FB mm 2000 2100 3100 2500 2750 3400 3300




Above Floor mm 3900 4300 5800 5200 5350 6200 6700
Main Motor Power kW 22 30 37 2×30 2×22 2×30 2×37
Weight kg 13000 16200 25000 57000 31000 80000 90000
Model
HSP-1000
HSP-1000A
HSP-1250
HSP-1500
HSP-1500A
HSP-2000
Capacity kN 10000 4000+3000×2 6300+3150×2 6000+4500×2 6000+4500×2 8000+6300×2
Return Force kN 1350 560×2 850+600×2 625×2 625×2 1000+850×2
Slide Stroke mm 1000 1500 1300 1500 1600 1600
Shut Height mm 1800 2200 1800 2000 2200 2200
Hyd . Pad Capacity kN 2000×2 700×4+1250 2000×2 1000×4+1600 1000×4+1600 1600×4
Hyd . Pad Return Force kN 580×2 400 580×2 610 610 600×4
Hyd . Pad Stroke mm 400 400 400 450 450 500
Slide Speed Idle Stroke mm/s 160 280 150 150 150 130
Pressing mm/s 8~19 15~30 7~15 8~19 8~19 8~18
Return mm/s 140 250 90 150 150 150
Hyd . Pad Speed Eject mm/s 45 150 45 100 100 55
Return mm/s 155 150 155 150 150 145
Bolster LR mm 2500 4500 3500 4000 4500 4600
FB mm 1800 2600 2000 2600 2600 2600
Hydraulic Pad LR mm 2020 3520 2920 3220 3520 3820
FB mm 1270 1870 1420 2020 1870 2020
Outline Size LR mm 4000 6800 5500 5600 6100 6200
FB mm 3500 4000 3800 4000 4000 4200
Above Floor mm 6800 9000 7300 8000 8300 8600
Main Motor Power kW 3×37 3×55 3×37 3×55 3×55 3×75
Weight kg 100000 210000 180000 240000 265000 37000
Characteristics
  • Totally European streamlined design, Monoblock welded steel frame rigid & Heat Treated. the Press body is reasonably designed through finite element structural analysis and optimization. It is mainly applied to compression moulding of SMC/FRP sheets.
  • The press is equipped with advanced and systemized Taiwan hydraulic system featuring oil leakage resistance, anti-vibration, low energy consumption, low noise level and easy maintenance.
  • Eight sides of brass guide rails of full stroke length not only ensure high accuracy but also allow easy adjustment of slide leveling.
  • Constant pressure and stroke can be set for same production. It is also functioned by adjustable pressure holding time delay.
  • The press fully meets CE safety requirements. Two side locking cylinders lock the slide when it reaches top position. And two sets of light curtain sensors are fitted in the front and rear that will stop the machine when human body carelessly enters the working area
  • Mitsubishi PLC and 7 / 10 inch Taiwan Weinview touch screen make the machine easy for operation and specification adjustable.
  • Each press is manufactured under strict quality control management with good quality components from France, Japan, Germany, USA and Taiwan to assure the best performance and accuracy.
Optional
  • Moving Bolster
  • Stamping Dampers for shock proof while stamping
  • Trolley / Moving Bolster for easy die change
  • Cushion Device for anti-shock while stamping
  • Water Cooler / Oil Chiller
  • Mould Hydraulic clamping
  • Air breathing design as per request
  • Accumulators for fast speed and low energy consumption
Configuration list
No. Item Standard MAKE High Standard MAKE
1 PLC Mitsubishi Siemens
2 Motor WanNan/China top brand Siemens / Rexroth
3 Pump Anson/Taiwan, Yuken/Japan Siemens / Rexroth
4 Servo Pump DAIKIN/Japan DAIKIN/Japan
5 Directional Valve Yuken/Japan Atos/Italy, Rexroth
6 Proportional Valve Yuken/Japan Atos/Italy, Rexroth
7 Cartridge Valve Jeou Gang/Taiwan,SUN/USA SUN, Atos, Rexroth
8 Prefill Valve TAI COLN/Taiwan Atos/Italy, Rexroth
9 Electric Units Schneider/France Schneider/France
10 Light Curtain LNTECH with CE Mark LNTECH with CE Mark
11 Touch Screen(HMI)9 Weinview/Taiwan Siemens
12 Pressure Gauge SKON/Taiwan S KON/Taiwan
13 Hydraulic Manifold MADE IN TAIWAN MADE IN TAIWAN
No worse quality components are adopted in ACCURL Presses.
