Home » Products » 700W Fiber Laser Metal Cutting Machine

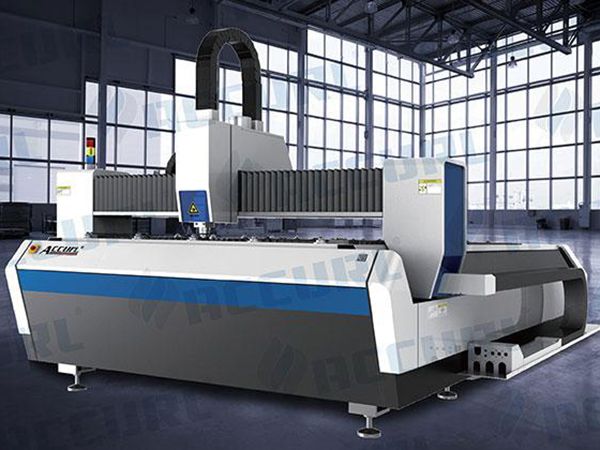

700W Fiber Laser Metal Cutting Machine

ACCURL's 700w fiber laser cutting machine team has introduced its latest in tube and profile processing technology, with a fiber laser cutting system. Technological innovation has brought us the Smart KJG series, which features an exceptional reliability and high beam quality, ensuring its place as a leader on the market.

700W Fiber Laser Metal Cutting Machine

Standard Equipment
• User friendly Cypcut Windows CAD/CAM CNC control unit.
• IPG YLS-700W Ytterbium Laser Resonator
• Unique features:
• Very easy to operate.
• Quick and easy installation.
• Low investment and operating costs.
• The most cost-efficient solution for every requirement.
• Flexible beam path
• High output power
• High optical quality
• Up to %300 faster cutting
• High wall plug efficiency (>%30)
• Copper, brass cutting ability
• Advanced Raytools cutting head (with air cross blast).
• High performance and high accuracy rack and pinion system.

Applicable Industries
• Kitchen cabinets
• Door processing
• Lighting hardware
• Chassis cabinets
• Advertising signs
• Elevator manufacturing
• Sheet metal processing
• Home appliances

Technical Specification:
Laser power IPG 700W Fiber Laser
Laser source America / Russia IPG fiber laser resonator
Processing surface(L × W) 3000mm x 1500mm
CNC control Shanghai FISCUT CypCut
Laser head Switzerland Raytools
Power supply AC380V±5% 50/60Hz (3 phase)
Total electric power 12KW
Position accuracy X, Y and Z axis +0.03mm
Repeat position accuracy X, Y and Z axle +0.02mm
Maximum position speed of X and Y axle 72m/min
Acceleration 1g
Max load of working table 800kg
Drawing programming mode AI, DWG, PLT, DXF format import directly
Machine weight 5T
*** Note: As products are constantly updated, please contact us for latest specifications. ***
Cutting Thickness Limit:
Material Cutting Thickness Limit
Carbon steel 8mm
Stainless steel 5mm
Aluminum 3mm
Brass 3mm
Copper 2mm
Detailed Pictures
  • Framework by heat treatmentFramework by heat treatment
  • IPG 500w Fiber Laser PowerIPG 700w Fiber Laser Power
  • Laser Cutting headLaser Cutting head
  • Linear guide and Rack Linear guide and Rack
  • Shimpo reduction gears from Japan Shimpo reduction gears from Japan
