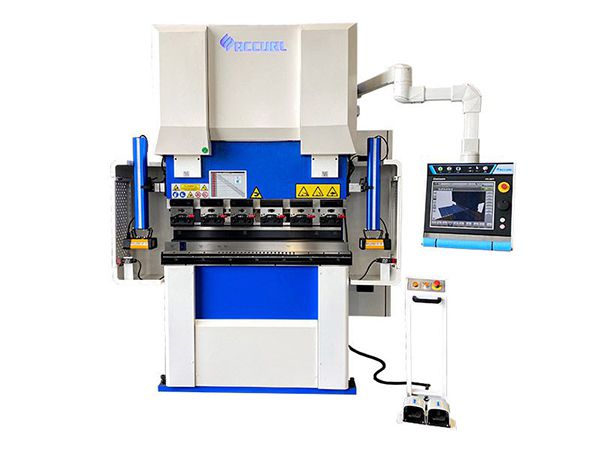

Electric Servo Press Brake, DA66T System

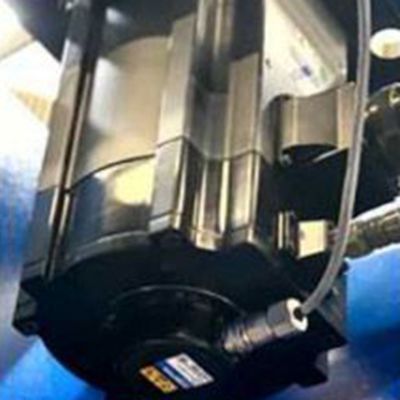

The electric servo press brake features high acceleration, deceleration and fast response times of the servo-electric drive system. Compared to conventional press brakes, considerable productivity increase can be reached. The cycle time can be reduced by 30% or even higher.
- The electric press brake features large load, large stroke, high precision and high bending efficiency.
- All operations are carried out in a fully automatic manner, including loading, unloading, bending.
- The clamping system can be changed according to the processed products.
| Model (eB ICON ) | B0825 | B1235 | B1340 | B2040 | B2060 | B2585 | B30125 |
| Bending length | 800 | 1250 | 1300 | 2050 | 2050 | 2550 | 3100 |
| Pressing force | 25 | 35 | 40 | 40 | 60 | 85 | 125 |
| Distance between side frames | 680 | 1050 | 1150 | 1850 | 1850 | 2350 | 2800 |
| Maximum opening | 370 | 420 | 420 | 420 | 420 | 470 | 500 |
| Maximum stroke | 100 | 140 | 140 | 140 | 150 | 150 | 300 |
| Throat depth (only if C-Frame) | 200 | 260 | 400 | 400 | 355 | 400 | 460 |
| Closing speed | 210 | 210 | 205 | 205 | 180 | 165 | 140 |
| Return speed | 200 | 200 | 200 | 190 | 175 | 155 | 120 |
-
-

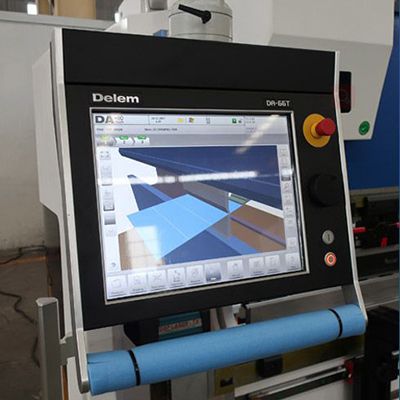

DELEM DA66T 3D CNC control system
DA66T software maximizes machine efficiency and production output of press brakes. The Profile T software facilitates offline programming and simulation of the bending process. Production preparation, makeability and tooling verification, operator training, adding notes for production and many other functions can be carried out offline.
-
-

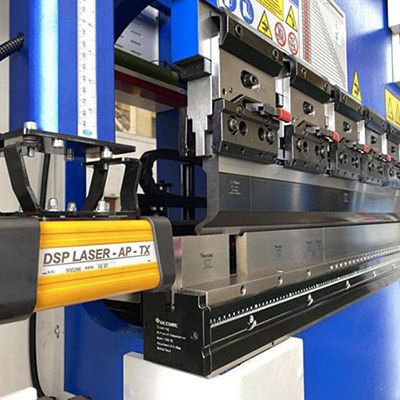

Lazer Safe's "Block Laser" System
Working speed is programmable to ensure bending is made without loss of product quality or operator safety. Lazer Safe’s “Block Laser” System provides safe high speed closing down to just 2 mm. Compared with other guarding systems or even unguarded machines, the block laser system can save up to 2 or more seconds per cycle. Fast positioning speeds ensure the back gauge will be ready when the part is presented for each operation.
-
-

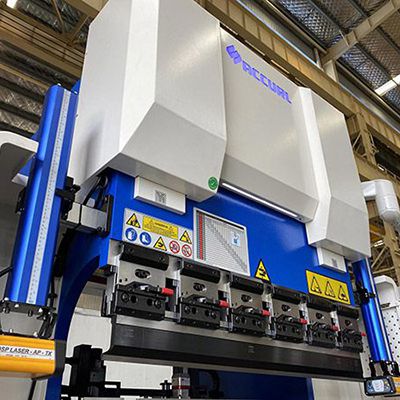

Laser guarding system
LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe's PCSS A Series, the Lazersafe is category 4 compliant and meets the world's most demanding international safety standards (with integrated CE Certified Category 4 Safety Controller).
-
-
Quick Clamping System
Quick clamping system for top tool holder allows the frontal tool ejection and automatic punch alignment, greatly reducing the machine set up.
-
-

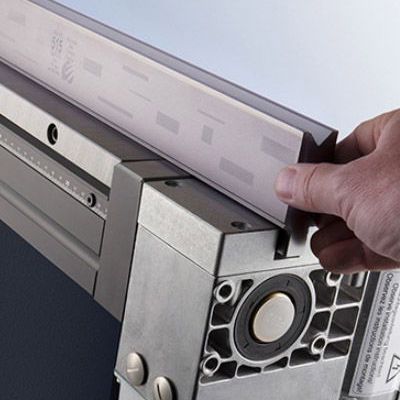

WILA New Standard Tool Holders
The Wila's "New Standard" Tooling System has become market leader for precision, quality and flexibility for the Accurl press brake. The WILA's state-of-the-art clamp systems offer an option for efficiently changing tools with Smart Tool Locator® (STL)*. This makes the tool changeover easier and safer, and Premium is available as an option.
-
-

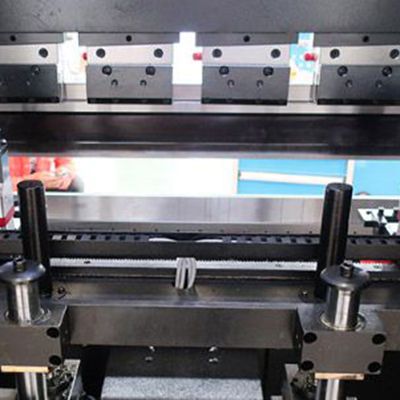

BGA-4 for X and R-Axis CNC
The press brake is equipped with BGA Series CNC backgauge system with durable construction in order to assure maximum repetition accuracy and high precision in axes positioning.
