H-frame Hydraulic Press

(Deep Drawing)

H-frame Hydraulic Press (Deep Drawing)

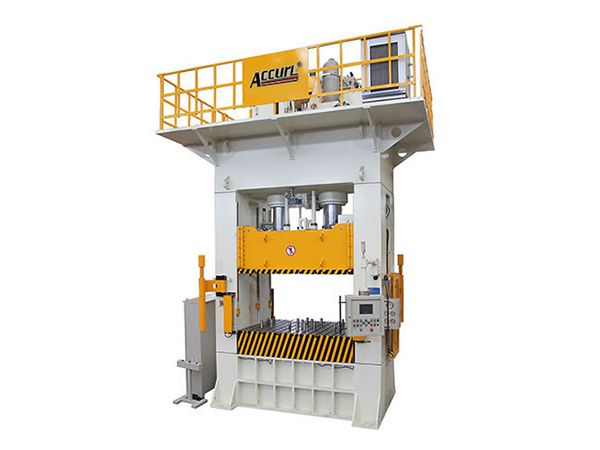

This H-frame hydraulic press is a deep drawing press that is similar in operation to our four-column hydraulic press but features a more compact design structure.

Request a Quote
Features
  • The H-frame hydraulic press is constructed from rigid high strength steel plates that help with precision power pressing during operation.
  • The machine is fitted with a Siemens HMI screen and highly accurate position and pressure sensors.
  • The hydraulic press features a user-friendly interface that allows compete user control for easy system adjustments.
  • It is equipped with a hydraulic servo valve that allows the power press to run at high speeds and protects the system from impact forces.
  • Monitoring software helps keep the sheet metal equipment operating at maximum capacity and helps keep the user and surrounding personnel safe at all times. The digital display shows operating cycle time, pressure settings, rem position, pressure release time, travel speed, travel setting, complete I/O information and safety alarms.
Specifications
Model
YL34K-100
YL34K-160
YL34K-200
YL34K-250
Capacity kN 630+200 × 2 1000+300 × 2 1000+500 × 2 1250+630 × 2
Return Force kN 37 × 2 45 × 2 60 × 2 69 × 2
Slide Stroke mm 600 600 700 700
Max. Shut Height mm 750 750 1000 1000
Hyd . Pad Capacity kN 400 630 800 800
Hyd . Pad Return Force kN 147 194 280 280
Hyd . Pad Stroke mm 200 200 250 250
Slide Speed Idle Stroke mm/s 400 400 300 450
Pressing mm/s 29 23 18 24
Return mm/s 400 400 300 430
Hyd . Pad Speed Eject mm/s 72 58 45 75
Return mm/s 200 190 130 210
Bolster LR mm 1000 1000 1200 1200
FB mm 800 800 1000 1000
Hydraulic Pad LR mm 650 650 950 950
FB mm 650 650 800 800
Outline Size LR mm 2880 2980 3280 3380
FB mm 1650 1770 2000 2100
Above Floor mm 3250 3350 3900 4300
Main Motor Power kW 30 37 37 55
Weight kg 7500 11000 14500 17500
Model
YL34K-315
YL34K-400
YL34K-500
YL34K-630
Capacity kN 1600+800 × 2 2000+1000 × 2 2500+1250 × 2 3150+1600 × 2
Return Force kN 76 × 2 165 × 2 277 × 2 408 × 2
Slide Stroke mm 800 800 1000 1200
Max. Shut Height mm 1200 1200 1400 1600
Hyd . Pad Capacity kN 1250 1250 1000*2 1000*2
Hyd . Pad Return Force kN 360 360 320*2 320*2
Hyd . Pad Stroke mm 300 300 350 400
Slide Speed Idle Stroke mm/s 500 400 500 500
Pressing mm/s 24 25 25 25
Return mm/s 500 300 225 190
Hyd . Pad Speed Eject mm/s 60 75 62 78
Return mm/s 200 260 190 240
Bolster LR mm 1500 2000 3000 3500
FB mm 1200 1500 2000 2000
Hydraulic Pad LR mm 1120 1420 2320 2920
FB mm 820 1120 1420 1420
Outline Size LR mm 3900 4500 5600 6200
FB mm 2500 3000 3500 3600
Above Floor mm 5200 5600 6200 7200
Main Motor Power kW 75 90 110 132
Weight kg 26500 42000 88000 120000
