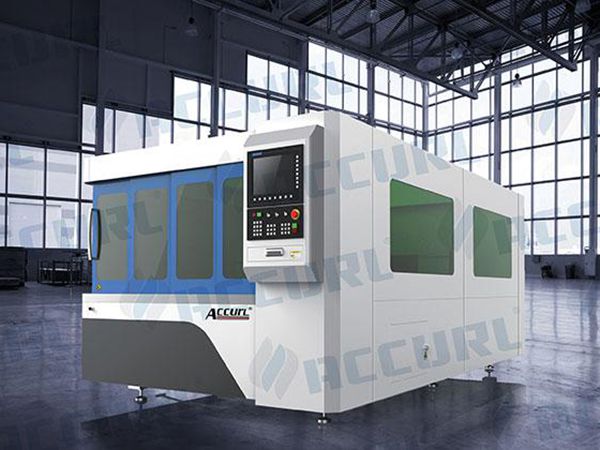

700W Fiber Laser Sheet Metal Cutting Machine

ACCURL's Genius fiber laser cutting machine team has introduced the newest fiber laser cutting system that makes use of technological innovation to create the Genius KJG series. With exceptional reliability and high beam quality, our fiber laser cutting machines continue to be leaders amongst the competition.

700W Fiber Laser Sheet Metal Cutting Machine

Features
• User friendly Cypcut Windows CAD/CAM CNC control unit.
• Very easy to operate.
• Quick and easy installation.
• Low investment and operating costs.
• The most cost-efficient solution for every requirement.
• Flexible beam path
• High output power
• High optical quality
• Up to 300% faster cutting
• High wall plug efficiency (>%30)
• Copper, brass cutting ability
• Advanced Raytools cutting head (with air cross blast).
• High performance and high accuracy rack and pinion system.
• Dual proportional valve control system for different gas pressures and special system for high

Optional Equipment
• Shuttle Table and Clean Room
• Table size 1500x4000mm
• Table size 2000x4000mm
• Pipe cutting system (φ220mm / 3000mm)
• Cutting Head from PRECITEC- Manual (500w-1500w)
• USA.IPG / nLIGHT / China.Raycus Fiber Laser Power (500w-2kw)

Fiber Laser Cutting Machine Applicable Materials
Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate, metal pipe and tubes.

Technical Specification:
Laser power 700W Fiber Laser cutting machine
Laser source America / Russia IPG fiber laser resonator
Processing surface (L × W) 3000mm x 1500mm
CNC control Shanghai FISCUT CypCut
Laser head Switzerland Raytools
Power supply AC380V±5% 50/60Hz (3 phase)
Total electric power 12KW
Position accuracy X, Y and Z axle +0.03mm
Repeat position accuracy X, Y and Z axle +0.02mm
Maximum position speed of X and Y axle 72m/min
Acceleration 1g
Max load of working table 800kg
Drawing programming mode AI, DWG, PLT, DXF format import directly
Machine weight 5T
*** Note: As products are constantly updated, please contact us for latest specifications. ***
Main Parts:
Article Name Remark
Fiber laser resonator IPG (America/Russia) / 700W
Servo motor and driver DELTA (Taiwan)
Ball screw rod HIWIN (Taiwan)
Liner guide HIWIN (Taiwan)
Gear rack YYC (Taiwan)
Laser head RAYTOOLS (Switzerland)
Chiller HAN LI (China)
Controller FISCUT (China)
Gas Proportional valve SMC (Japan)
Reduction gear box APEX (Taiwan)
Material Cutting Thickness Limit
Carbon steel 8mm
Stainless steel 5mm
Aluminum 3mm
Brass 3mm
Copper 2mm
Detailed Pictures
  • Framework by heat treatmentFramework by heat treatment
  • IPG 700w Fiber Laser PowerIPG 700w Fiber Laser Power
  • Laser Cutting headLaser Cutting head
  • Linear guide and Rack Linear guide and Rack
  • Shimpo reduction gears from Japan Shimpo reduction gears from Japan
