Tandem Press Brake
with PCSS-A Embedded Safety Controller

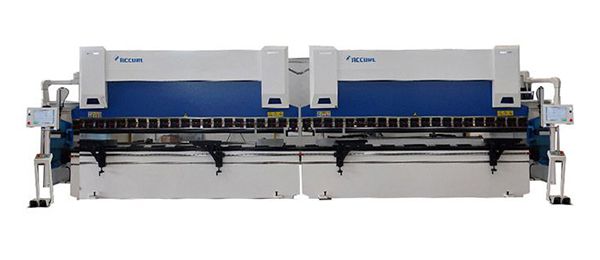

Designed with CE certified Lazersafe tandem adapter, the tandem press brake features reduced working time with high bending quality. Two press brakes are joined together to form a tandem press brake. You can freely switch between single and tandem mode.
| Model (EURO PRO) | B1240 | B25110 | B32135 | B32175 | B40135 | B40175 | B40220 | B40400 |
| Bending length | 1250 | 2500 | 3200 | 3200 | 4000 | 4000 | 4000 | 4000 |
| Pressing force | 40 | 110 | 135 | 175 | 135 | 175 | 220 | 400 |
| Distance between side frames | 950 | 2100 | 2700 | 2700 | 3300 | 3300 | 3300 | 3300 |
| Maximum opening | 380 | 430 | 430 | 430 | 430 | 430 | 460 | 560 |
| Maximum stroke | 160 | 200 | 200 | 200 | 200 | 200 | 200 | 300 |
| Throat depth (only if C-Frame) | 320 | 400 | 400 | 400 | 400 | 400 | 400 | 450 |
| Closing speed | 180 | 200 | 200 | 200 | 180 | 180 | 165 | 150 |
| Return speed | 150 | 160 | 160 | 160 | 160 | 160 | 150 | 120 |
-
-

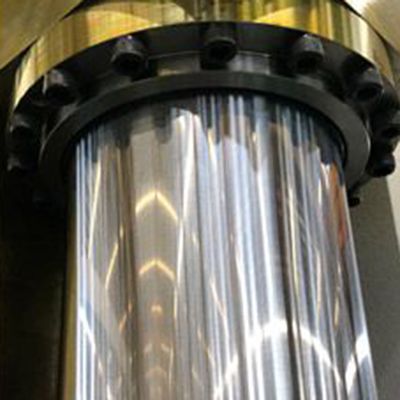

AMB (HOERBIGER hydraulic system)
ACCURL CNC press brake is designed with an advanced HOERBIGER hydraulic system (AMB). All hydraulic components are grouped together in one hydraulic system including pump, valve, pressure filter and performance module, which is centrally controlled by one control block.
-
-

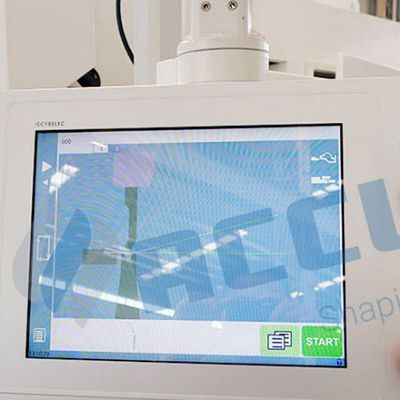

PCSS-A embedded safety controller
The PCSS-A embedded safety controller expands the possibilities for machine control with the next generation solution for tandem press brakes. The latest tandem solution features a tandem adapter that synchronizes safety functions and control across both machines and a dedicated optical system for flexible guarding in both single and tandem configurations.
-
-

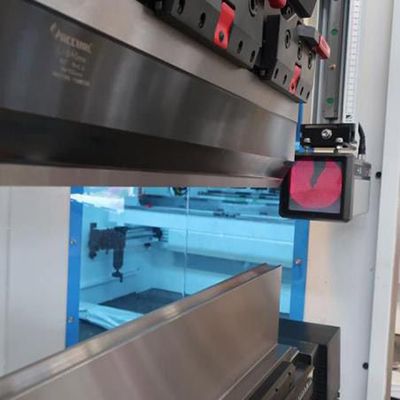

Laser guarding system
LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe's PCSS A Series, the Lazersafe is category 4 compliant and meets the world's most demanding international safety standards (with integrated CE Certified Category 4 Safety Controller).
-
-
CNC Crowning Table
This CNC crowning system enables the user to offset deformations of the beam while bending. In this way, the angle remains constant throughout the length.
-
-

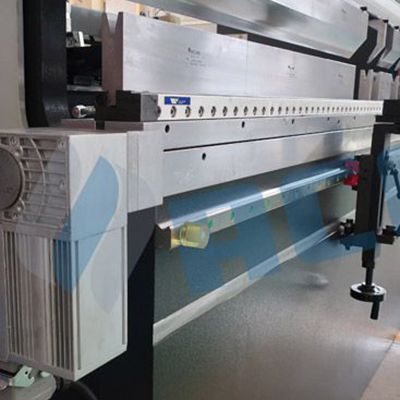

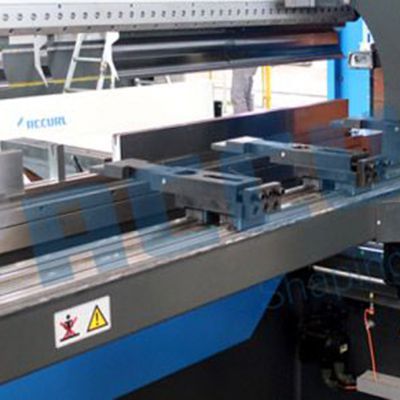

BGA-4 for X and R-Axis CNC
The press brake is equipped with BGA Series CNC backgauge system with durable construction in order to assure maximum repetition accuracy and high precision in axes positioning.
