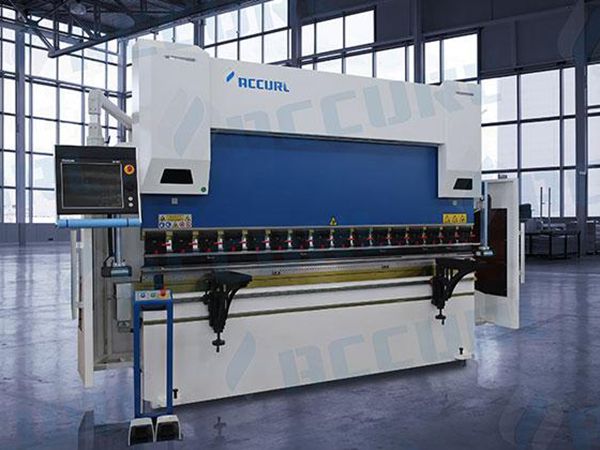

6-Axis CNC Press Brake

ACCURL® EURO-PRO Series CNC press brakes feature an automatic CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and a 3D capable graphical control unit to simulate bending sequences and collision points.

6-Axis CNC Press Brake

• Provides a combination of performance, cost effectiveness and easy to use features
• Outstanding Value! Best brake for the money on the market.
• User friendly CNC control unit and software
• Precise bending results
• Tough construction with the same solid framework we use for all ACCURL CNC press brake manufacturing
• Large daylight opening allows the entire length of the machine to be put to optimal use
• Designed and built with the objective to help you achieve low cost manufacturing
• Standard 6 axis X, R, Z1, Z2, Y1, Y2 CNC Press Brake Manufacturers

Standard Equipment:
• Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.
• 6 axes (Y1, Y2, X, R, Z1, Z2)
• Throat depth 410 mm.
• Back gauge system with X, R, Z1, Z2 axis driven by AC servo with colored graphics.
• HOERBIGER Press Brake BGA-4 for X E Z1 Z2-axis.
• CNC controlled motorized anti-deflection system.
• Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).
• Easy to clamp tool holding system with upper and lower tools.
• Ergonomic user friendly, pendant control panel.
• Back light safety guards (category-4)
• Front side covers with safety switches.
• Synchronization of Y1+Y2 axis provided by linear encoders with 0.01 mm tolerances.
• Foot pedal suitable to CE regulation.
• Sliding front support arms with T slot and mm/inch rulers.
• Standard graphic controllers can be selected from: DelemDA66T 3D color graphical touch screen controller, Cybelec Mod Eva 12 S
• Electrical panel with cooling system designed to meet CE standards & composed of Simens automatic and electrical equipment

Delem DA66T CNC Control system:
• 2D graphical touch screen programming mode.
• 3D visualization in simulation and production.
• 17" high resolution color TFT.
• Windows applications compatible.
• Delem Modusys compatibility. (module scalability and adaptivity)
• USB, peripheral interfacing.
• Open system architecture.
• User specific application support within the controllers multitasking environment.
• Sensor bending & correction interface.

Specification
Model(EURO PRO) B1560 B2580 B32110 B32135 B32175 B40175 B32220
Bending force KN 600 800 1100 1350 1750 1750 2200
Bending Length mm 1500 2500 3200 3200 3200 4200 3200
Between Columns mm 1100 2060 2700 2700 2700 3700 2700
Daylight mm 405 405 430 430 430 430 430
Slide Stroke mm 200 200 200 200 200 200 200
Throat Depth mm 370 400 400 400 400 400 400
Bolster Width mm 80 80 100 100 100 100 140
Down Speed mm/min 200 200 180 180 160 160 160
Pressing Speed mm/min 8 8 10 10 10 10 10
Return Speed mm/min 180 180 150 150 150 150 140
Back Gauge Stroke mm 500 600 800 800 800 800 800
Outline Size L mm 1825 2825 3500 3550 3500 4500 3500
W mm 1650 1650 1650 1650 1650 1650 1730
H mm 2300 2350 2650 2700 2700 2750 2900
Weight kg 4600 5600 8000 9500 10000 12000 13200

The best bending results- Users can bend longer and deeper parts using the standard Euro Pro B Series!

Detailed Pictures

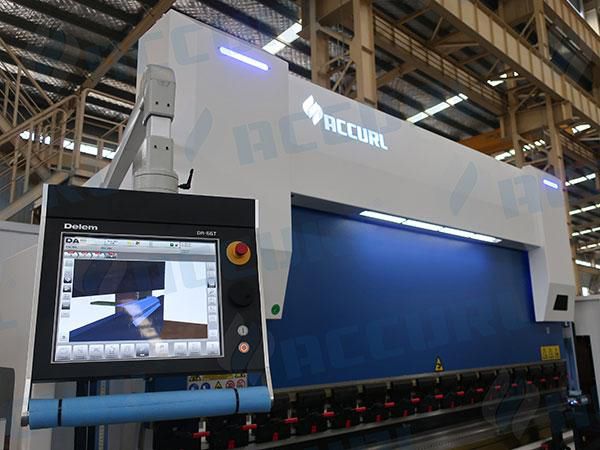

  • DELEM DA66T 3D Graphical CNC System for CNC Press brakeDELEM DA66T 3D Graphical CNC System for CNC Press brake

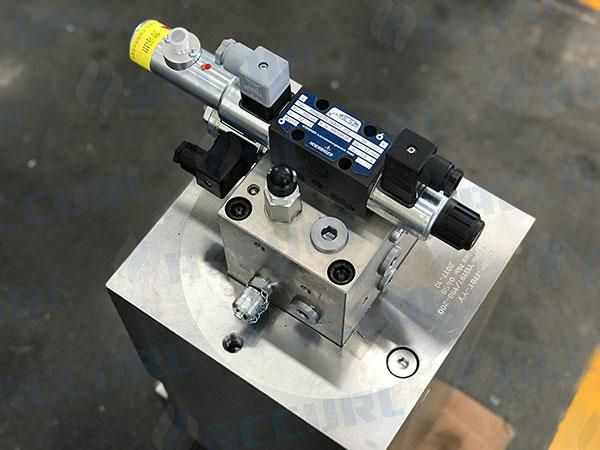

  • HOERBIGER Hydraulic system for ACURL Press BrakeHOERBIGER Hydraulic system for ACURL Press Brake

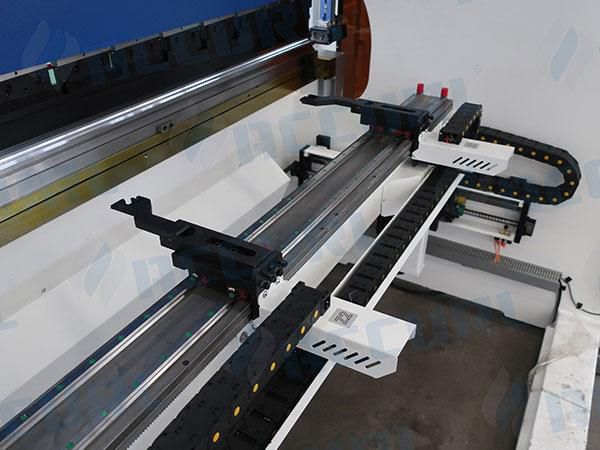

  •  Press Brake BGA-4 for X E Z1 Z2-axis Press Brake BGA-4 for X E Z1 Z2-axis

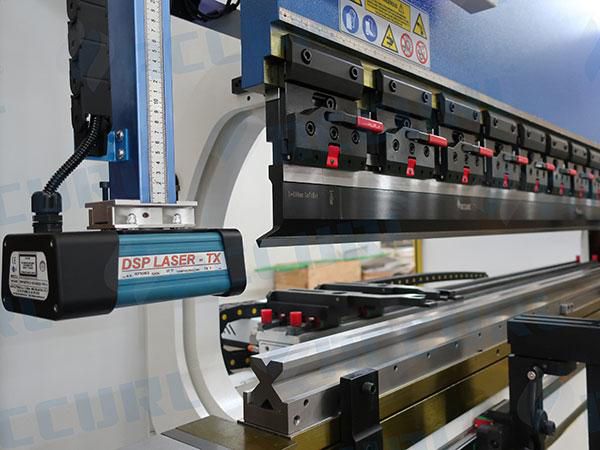

  •  Standard top and 4V-Die bottom tools Standard top and 4V-Die bottom tools
