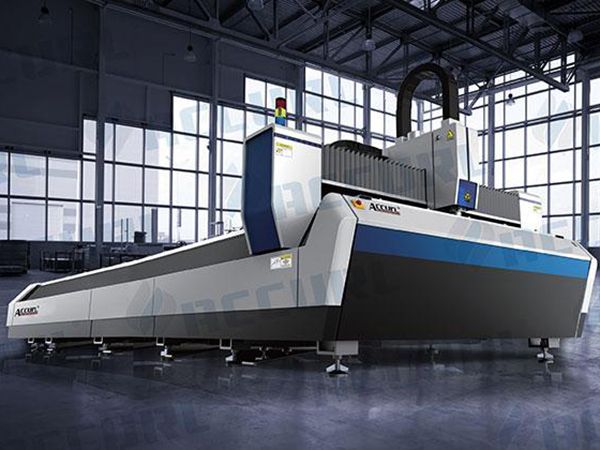

1000W IPG Fiber Laser CNC Cutting Machine

ACCURL manufactures 1000w fiber CNC laser cutting machines that utilize the latest in tube and profile processing technology for fiber laser tube cutting systems. This series is the Smart KJG series, and features an exceptional reliability and high beam quality, earning it a top spot on the market.

1000W IPG Fiber Laser CNC Cutting Machine

General Features
• 70% low electricity consumption in comparison with CO2 Laser
• Up to 300% faster cutting
• High wall plug efficiency (>30%)
• Flexible beam path
• Maintenance free
• Copper, brass cutting ability
• High output power
• High optical quality
• Compact size
• Reliability

Standard Equipment
• IPG YLS-1000W Ytterbium Laser Resonator
• Linear Driven X, U and Y Axes
• High Rigid Frame
• Empower or FAGOR CNC Controller
• Precitec Cutting Head
• Lantek Software
• Shuttle Table
• Chiller Unit
• Proportional Gas and Piping System
• Dust Filter
• Compressor
• Conveyor for Scraps

Technical Specification:
Laser power 1000W IPG Fiber Laser
Laser source Germany IPG fiber laser resonator
Processing surface (L × W) 3000mm x 1500mm
CNC control Shanghai FISCUT CypCut
Laser head Switzerland Raytools
Power supply AC380V±5% 50/60Hz (3 phase)
Total electric power 14KW
Position accuracy X, Y and Z axle +0.03mm
Repeat position accuracy X, Y and Z axle +0.02mm
Maximum position speed of X and Y axle 72m/min
Acceleration 1g
Max load of working table 1000kg
Drawing programming mode AI, DWG, PLT, DXF format import directly
Machine weight 5T
*** Note: As products are constantly updated, please contact us for latest specifications. ***
Cutting Thickness Limit:
Material Cutting Thickness Limit
Carbon steel 12mm
Stainless steel 6mm
Aluminum 4mm
Brass 3mm
Copper 3mm
Main Parts:
Article Name Remark
Fiber laser resonator IPG (Germany)/1000W
Servo motor and driver DELTA (Taiwan)
Ball screw rod HIWIN (Taiwan)
Liner guide HIWIN (Taiwan)
Gear rack YYC (Taiwan)
Laser head RAYTOOLS (Switzerland)
Chiller TONG FEI (China)
Controller FISCUT (China)
Gas Proportional valve SMC (Japan)
Reduction gear box APEX (Taiwan)
Detailed Pictures
  • Framework by heat treatmentFramework by heat treatment
  • IPG 1000w Fiber Laser PowerIPG 1000w Fiber Laser Power
  • Laser Cutting headLaser Cutting head
  • Linear guide and Rack Linear guide and Rack
  • Shimpo reduction gears from Japan Shimpo reduction gears from Japan
