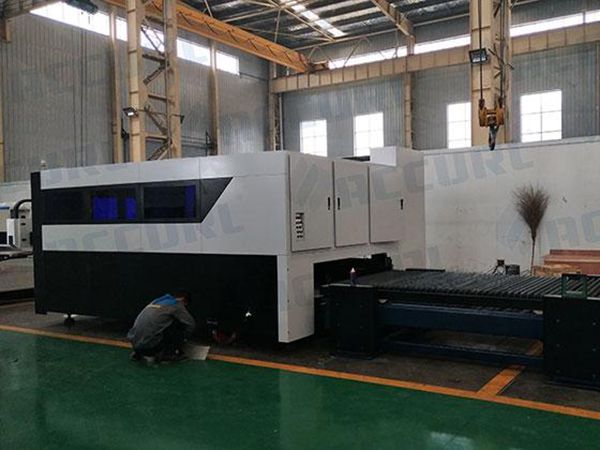

Large Format 3KW IPG Fiber Laser Cutting Machine

Incredibly fast and flexible, the ACCURL Genius 3kw fiber laser cutter is ideal for ultra-high speed cutting of thin sheet materials. It also features the ability to cut a wide range of ferrous and non-ferrous metals, while maintaining low cost operation.

Large Format 3KW IPG Fiber Laser Cutting Machine

• User friendly FAGOR 8060 CNC control unit.
• Unique features:
-Maximum simultaneous positioning speed: 160m/min.
-Acceleration speed: 25 m/ s2 (2.5G).
-Precision: ± 0.05 mm.
-Energy efficiency: greatly reduced power consumption.
-IPG YLS-3000w Resonator
• Advanced PRECITEC cutting head (with air cross blast).
• Fully enclosed to ensure maximum operator protection.
• Effective high to low pressure gas exchange system.
• Automatic time and unit cost calculation function.
• Network connection from external.
• Smoke extraction (included in series models).
• Collection of work pieces and trimmings.
• Dual proportional valve control system for different gas pressures and special system for high pressure cutting.

Introduction:
Fiber Laser Cutting Machine with Double Pallet Changer
High Speed Large Format Full Closed Type
Laser Power: 3000 watts
Pallet working table, saving time for material uploading, further improving working efficiency.
Cutting Area: 1500mm×3000mm, 2000mm×4000mm, 2000mm×6000mm
Double gear rack closed-loop system and PMAC Controller (America Delta Tau Systems Inc)

Standard Equipment:
• FAGOR 8060 CNC Controller
• IPG YLS-3000W Ytterbium Laser Resonator
• Automatic Double Pallet Changer(Shuttle Table)
• Precision Rack & Pinion Drive System (Made in Germany)
• Radan or Lantek CAD/CAM system
• Light source
• Chiller
• 3 lower protective lenses
• 3 Ceramic Nozzle Adapters
• Auto-calibrated nozzle system
• Lens with 5.9” Focus Length
• Smart Slag Collection System/ Chip Conveyor
• Fiber Beam Transmission System (Fiber Cable)
• Operates with both N2 and O2 (cutting) gases
• Home Position Alignment System
• Auxiliary Gas Selector
• Auto Reflection Warning
• Working Lights
• 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)

Technical Specification:
Model ECO-FIBER 3015 / 3KW
CNC Control Unit FAGOR 8060 CNC System
X axis (Rack & Pinion) 3000 mm
Y axis (Rack & Pinion) 1500 mm
Z axis (Ball Screw) 100 mm
Maximum cutting capacity Mild steel 20 mm
Stainless steel 10 mm
Aluminum 8 mm
Work piece dimensions 1525 x 3050 mm
Rapid traverse (X and Y axis) 105 m/min
Acceleration 2.5G (25m/s2)
Vector speed 148 m/min
Absolute positioning accuracy ± 0.08 mm
Repeatability (X and Y axis) ± 0.03 mm
Max. load capacity 2450 kg
High Performance CNC System FAGOR 8060 from Spain Brand
Laser power IPG YLS-3 kW from Germany
High Performance Servo motor/drive FAGOR from Spain Brand
Laser Cutting Head PRECITEC from Germany
Motoreducer STOBER from Germany
Detailed Pictures

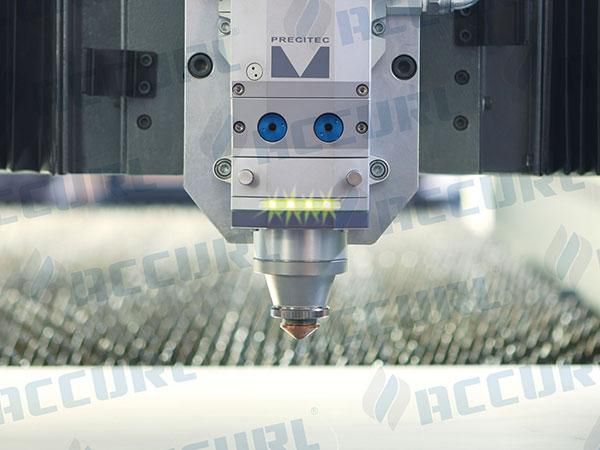

  • Germany PRECITEC Spain FAGOR Servo motor and drive Germany PRECITEC Laser Cutting Head

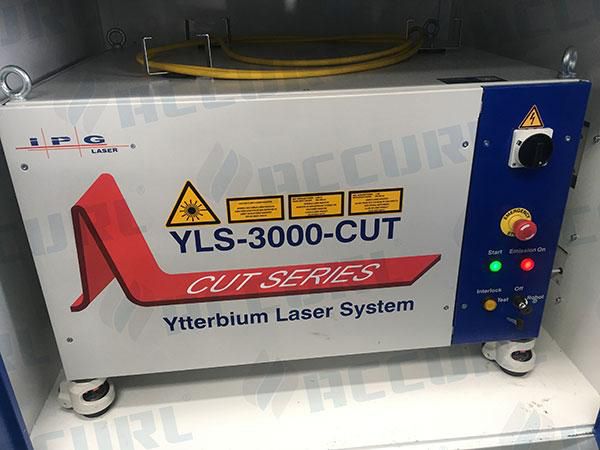

  • IPG YLS-3 kW Laser power from Germany IPG YLS-3 kW Laser power from Germany

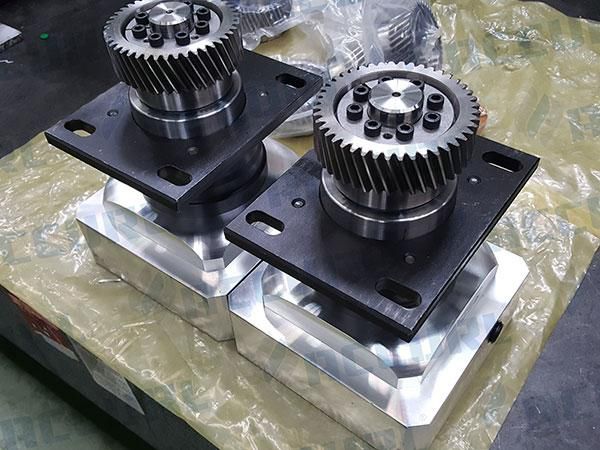

  • STOBER Precision Rack and Pinion Drive System (Made in Germany) STOBER Precision Rack and Pinion Drive System (Made in Germany)

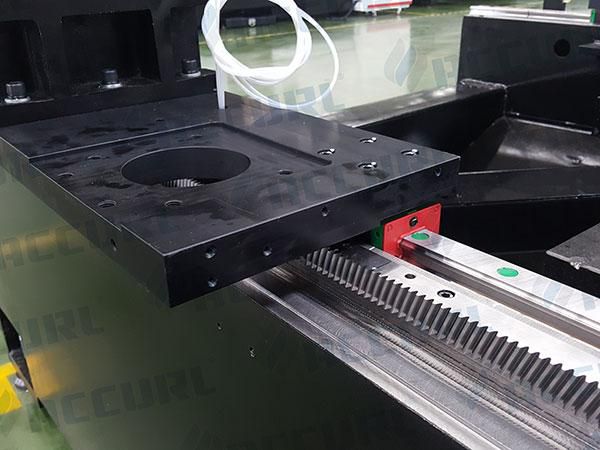

  • Linear guide and Rack Linear guide and Rack

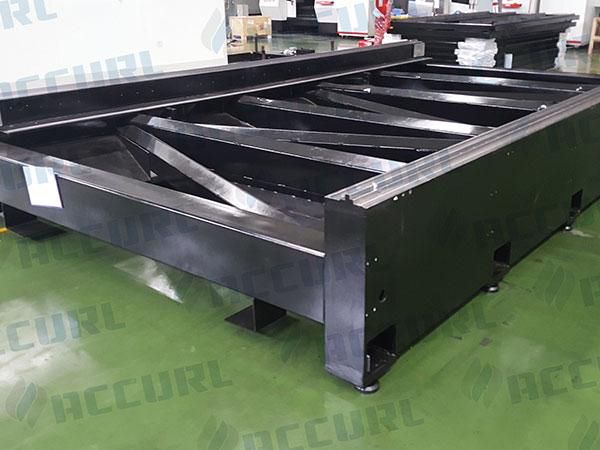

  • Framework by heat treatment Framework by heat treatment
