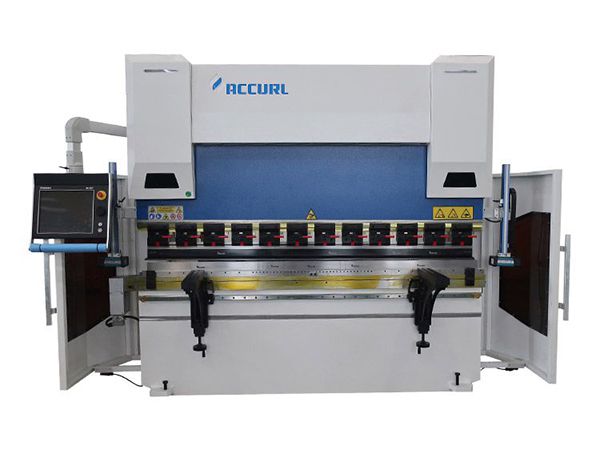

High Speed CNC Press Brake, with DA66T Controller

Featuring with DA66T CNC control system, the high speed 6+1 axis CNC press brake is a universal sheet metal bending machine available with different models with bending length ranging from 1250 to 4000mm.

CNC Press Brake, with CybTouch 12 PS System
Specifications
Model (EURO PRO) B1240 B2580 B32135 B32175 B40135 B40175 B40320 B40400
Bending length(mm) 1250 2500 3200 3200 4000 4000 4000 4000
Pressing force(tons) 40 80 135 175 135 175 320 400
Distance between side frames(mm) 950 2100 2700 2700 3300 3300 3300 3300
Maximum opening(mm) 380 410 430 430 430 430 560 560
Maximum stroke(mm) 160 160 200 200 200 200 300 300
Throat depth (only if C-Frame) 320 320 400 400 400 400 400 450
Closing speed(mm/s) 180 180 200 200 180 180 160 150
Maximum working speed*(mm/s) 10 10 10 10 10 10 10 10
Return speed(mm/s) 150 150 160 160 160 160 125 120
  • DELEM DA66T 3D CNC control system

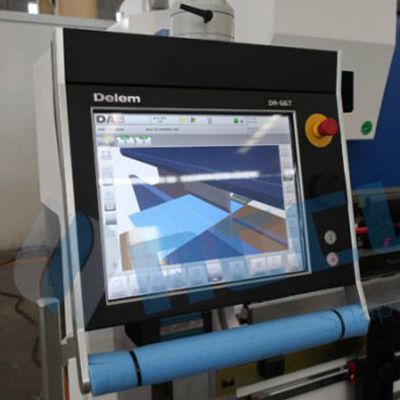

    DELEM DA66T 3D CNC control system

    DA66T software maximizes machine efficiency and production output of press brakes. The Profile T software facilitates offline programming and simulation of the bending process. Production preparation, makeability and tooling verification, operator training, adding notes for production and many other functions can be carried out offline.

  • Laser guarding system

    AMB (HOERBIGER hydraulic system)

    ACCURL CNC press brake is designed with an advanced HOERBIGER hydraulic system (AMB). All hydraulic components are grouped together in one hydraulic system including pump, valve, pressure filter and performance module, which is centrally controlled by one control block.

  • Quick clamp system

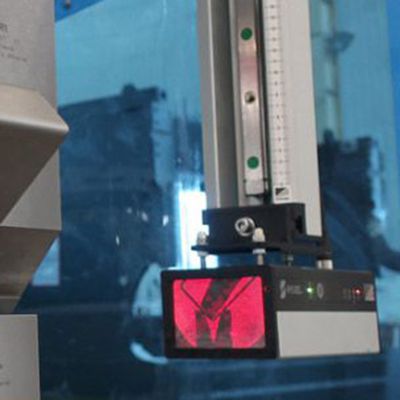

    Laser guarding system

    LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe's PCSS A Series, the Lazersafe is category 4 compliant and meets the world's most demanding international safety standards (with integrated CE Certified Category 4 Safety Controller).

  • BGA-4 for X and R-Axis CNC

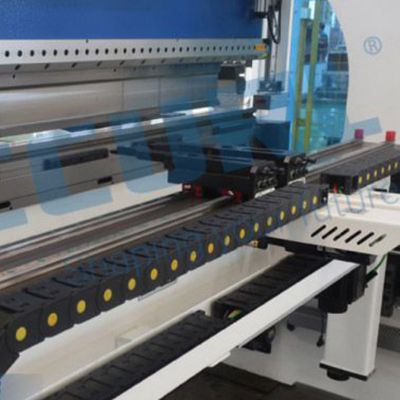

    BGA-4 for X and R-Axis CNC

    The press brake is equipped with BGA Series CNC backgauge system with durable construction in order to assure maximum repetition accuracy and high precision in axes positioning.
