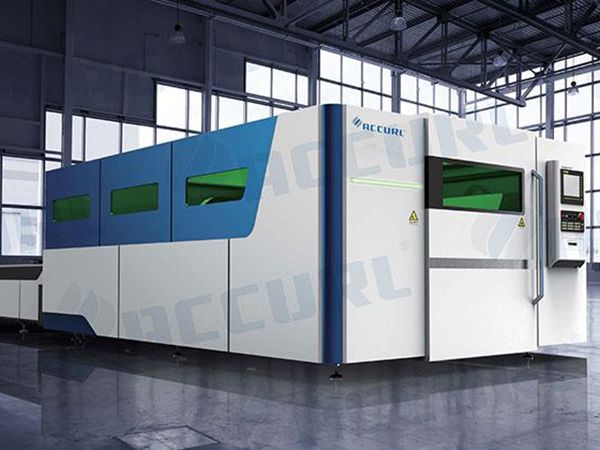

2KW IPG Fiber Laser Aluminum CNC Cutter Machine

ACCURL IPG 2000W fiber laser cutting machine features a fast cutting and energy efficiency, especially when compared to CO2 lasers. With its easy to use structure that requires little to no maintenance, its service is among the highest of fiber lasers, and s globally recognized for its efficiency.

Incredibly fast and flexible, the ACCURL ECO-FIBER 2kw fiber laser cutter is ideal for ultra-high speed cutting of thin sheet materials. It also features the ability to cut a wide range of ferrous and non-ferrous metals, while maintaining low cost operation.

2KW IPG Fiber Laser Aluminum CNC Cutter Machine

Standard Equipment:
• IPG YLS-2000W Ytterbium Laser Resonator
• FISCUT CypCut CNC Controller
• Radan or Lantek CAD/CAM system
• Switzerland Raytools head
• Shuttle table
• Chiller laser cooling system.
• Automatic gas selection system
• Smoke suction filter
• Air conditioner for automation panel
• Slag car for interrupted parts.
• Automatic sheet measurement vision system (Camera based)

Optional Equipment:
• Automatic beam centering system.
• Linear motor technology
• Laser Safety Barrier
• Precitec cutting head
• Automatic sheet metal loading and unloading system.
• Compressor

Technical Specification:
Laser power 2000W IPG Fiber Laser Cutting Machine
Laser source Germany IPG fiber laser resonator
Processing surface (L × W) 3000mm x 1500mm
CNC control Shanghai FISCUT CypCut
Laser head Switzerland Raytools
Power supply AC380V±5% 50/60Hz (3 phase)
Total electric power 22KW
Position accuracy X, Y and Z axle +0.03mm
Repeat position accuracy X, Y and Z axle +0.02mm
Maximum position speed of X and Y axle 72m/min
Acceleration 2.1G
Max load of working table 1000kg
Drawing programming mode AI, DWG, PLT, DXF format import directly
Machine weight 8T
*** Note: As products are constantly updated, please contact us for latest specifications.***
Cutting Thickness Limit:
Material Cutting Thickness Limit
Carbon steel 16mm
Stainless steel 8mm
Aluminum 8mm
Brass 6mm
Copper 6mm
Main Parts:
Article Name Remark
Fiber laser resonator IPG (Germany)/2000W
Servo motor and driver DELTA (Taiwan)
Ball screw rod HIWIN (Taiwan)
Liner guide HIWIN (Taiwan)
Gear rack YYC (Taiwan)
Laser head RAYTOOLS (Switzerland)
Chiller TONG FEI (China)
Controller FISCUT (China)
Gas Proportional valve SMC (Japan)
Reduction gear box APEX (Taiwan)
Detailed Pictures
  • Germany PRECITEC Spain FAGOR Servo motor and drive Germany PRECITEC Laser Cutting Head
  • STOBER Precision Rack and Pinion Drive System (Made in Germany) STOBER Precision Rack and Pinion Drive System (Made in Germany)
  • Linear guide and Rack Linear guide and Rack
  • Framework by heat treatment Framework by heat treatment
