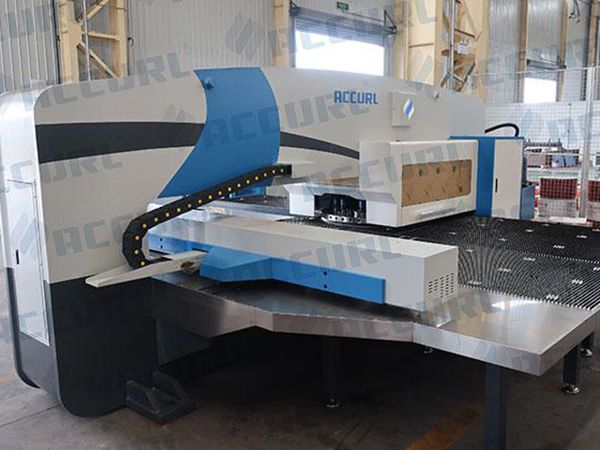

30 Ton Hydraulic CNC Turret Punch Press

30 Ton Hydraulic CNC Turret Punch Press

Complex Multi-Tools Auto Index Technology
High Performance

By offering the choice between our MAX-series machines and the T-series classical thick-turret style, Accurl proudly offers a full range of punching solutions for both performance and price range requirements.

Flexibility in Multi-Tools
ACCURL®MAX-SF Series CNC Punch Press Machine is a newly developed multi-index tool turret punch press that is equipped with an advanced servo hydraulic system. Accurl’s MAX SF Series CNC Punching machines provides the fastest, flexible and most reliable punch press to satisfy customer requirements for fast, precise sheet metal works.

32 Stations 2 Auto index
• ACCURL entry level turret offers a full set of tooling with two auto indexing stations.
• The strictly engineered mechanical parts in the H+L Hydraulic ram are manufactured according to high precision standards. The HS3 electronic stoke controls the speed and stroke of the 30 ton hydraulic punching head.
• The T-series is equipped with a thick turret tool holder, consisting of 32 stations. It comes with standard with 2 Auto Index "D" stations. An additional two auto-indexing stations are optional.

Complex Multi-Tools Auto Index Technology
• Synchronized dual servo motors for controlling the auto index functions.
• 2 D Auto Index Stations for Multi Tools, either 3 B or 8 A.
• Capable of indexing each individual tool within the 3B and 8A Multi Tool set.
• 24 various size stations including 4 Auto Index stations Multi Tools. Therefore, a total of 24 to 52 tools can be employed.
• Capable of running wheel, marking, grooving and forming Tooling.

Siemens control
• The MAX T-series comes standard with the Siemens 802D SL operator control, combining all components of a CNC (NC, PLC, HMI) and drive control in a single unit.

Standard Equipment
• Siemens CNC and high precision absolute encoder, dynamic, brushless alfa series servo motors
• 3 automatic repositioning clamps and loading switches.
• Siemens 802DSL CNC Control System
• Aluminum wor kholder
• Tool lubricating system (Airblow).
• Free standing control panel.
• Control with foot pedal.
• Tools stuck safety system
• 1 software (Lantek or RADAN software).
• 24 or 42 turret stations
• Digital oil temperature indicator.
• Software for using wheel and forming tools.
• Sheet jumping switches
• Scrap box.
• Chain protection around the machine (safety system).

Specification
Item Unit MAX-T 30T
Punching Capacity Ton 30
X Traverse Length mm 2490±10
Y Traverse Length mm 1250±10
Max Sheet Size mm 1250x4980
Max Sheet Thickness mm 6.35
Max Mass of Material kg 110
X Axis Traverse Speed m/min 80
Y Axis Traverse Speed m/min 70
Max Traverse Speed m/min 105
Punching Speed at 25mm pitch hits/min. 250
Nibbling Speed (stroke length 4mm, pitch 1mm) hits/min. 360
Tool Type Thick turret
Max Punching Diameter mm 88.9
Number of Tool Stations 32/ ※ 24
Numer of Auto Index Stations pcs(type) 2B
Turret Rotating Speed rpm 33
Auto Index Rotating Speed rpm 100
Ram Stroke Distance mm 0-31
Working Table Brush+Supporting Ball Set
Number of Sheet Clamps pcs 3
Power Supply KVA 24
Air Supply NL/min 250
Air Pressure bar 6
Size of Control Cabinet mm 1200 × 600 × 1900
Number of Controllable Axis Axis 4
RAM Memory KB 512
Serial Interface RS232 / RJ45 / PCMCIA
Punching Precision mm ±0.1
Machine Dimension (L × W × H) mm 4687 × 5102 × 2385
Net Weight (approx.) kgf 13000
• Specifications are subject to change without prior notice.
• Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
• Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

Detailed Pictures

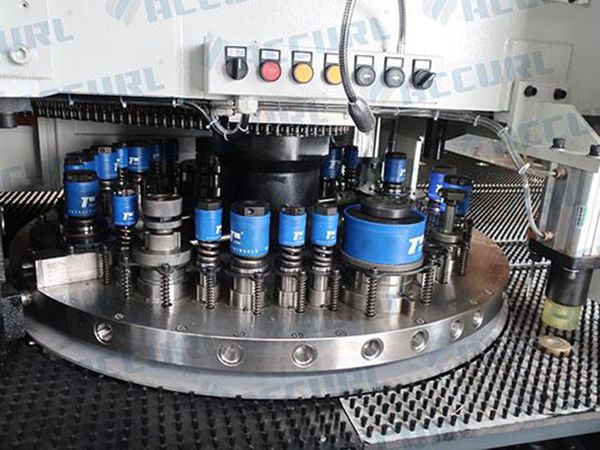

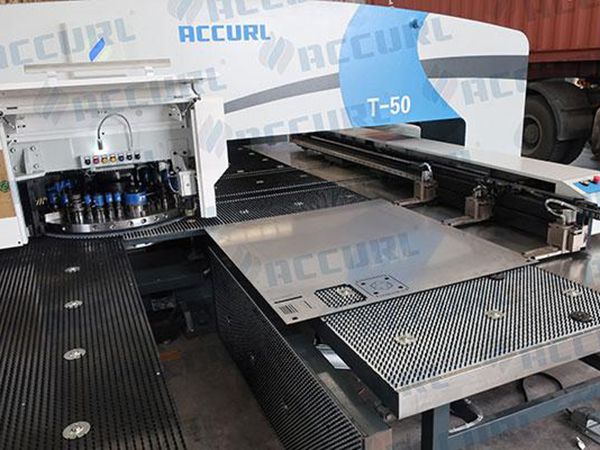

  • 32 Stations 2 Auto index for Accurl CNC Punch32 Stations 2 Auto index for Accurl CNC Punch

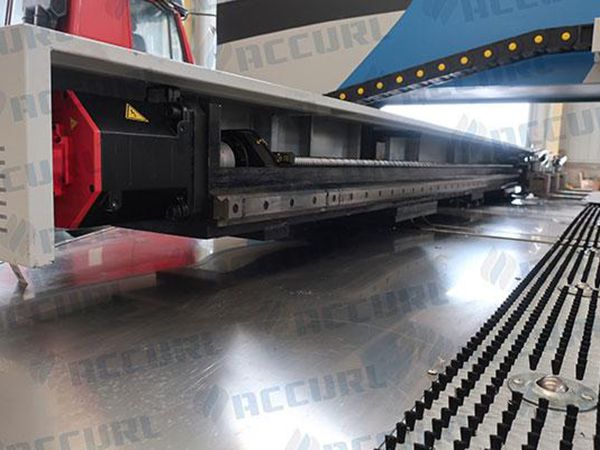

  • CNC Punch Press with Panasonic Servo MotorCNC Punch Press with Panasonic Servo Motor
  • FANUC Series Oi-PO Control System for ACCURL CNC Punch PressFANUC Series Oi-PO Control System for ACCURL CNC Punch Press
  • Heavy-duty Clamp for accurl CNC Punch pressHeavy-duty Clamp for accurl CNC Punch press
