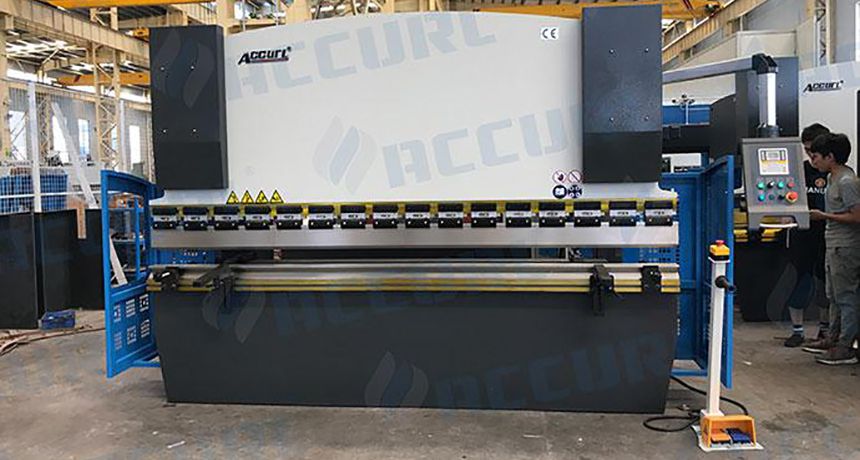

2-Axis NC Hydraulic Press Brake

Main Features:
1. Easy Bend B Series press brakes are perfect for forming small parts with low operating costs. With a torsion bar, synchronized NC two axis control capability, they perform just like larger press brakes.
2. The 2 axis NC hydraulic press brake offers a combination performance for added cost effectiveness and easy usage.
3. User friendly ESTUN E21s or Germany ELGO P40 NC control unit
4. 2-axis NC Control:
• Y precision inverter drive ram positioning
• X-axis precision inverter drive back gauge
• Manually adjustable R, Z1, Z2-axis
• Manual wave crowning System (Optional)
5. A safety fence and electric interlocker have been added to the equipment to ensure operational safety.

2-Axis NC Hydraulic Press Brake

Standard Equipment:

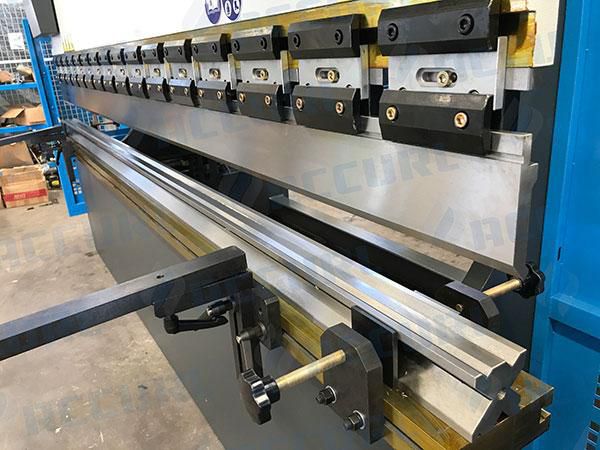

● System intermediate upper clamps with anti wedges
● Plate Support Arms
● Powered Depth Axis
● Backstop
● Light guards
● Top and Bottom Tooling
● ESTUN E21s or Germany ELGO P40 NC
● Germany Bosch-Rexroth Hydraulic

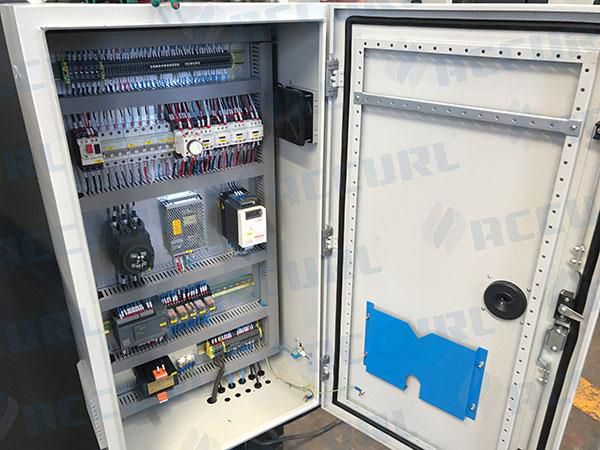

● Telemecanique/Schneider Electrics
● Hydraulic and Electrical overload protection
● Squaring Arm and Front Support Arms

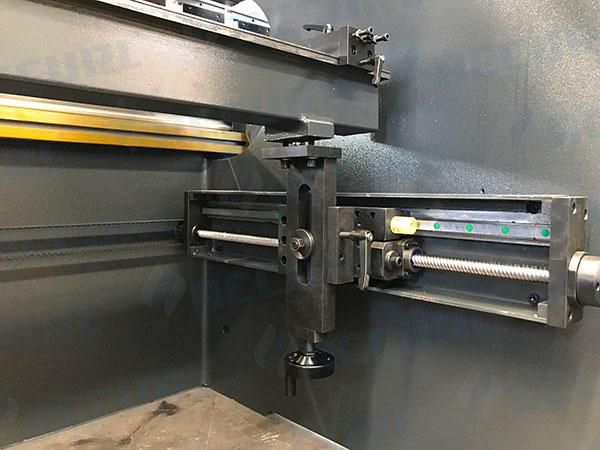

● Delta inverter with ball screw and polished rod with 0,05 mm accuracy.

Specifications
Model(AC/MB7) 40T/1600 50T/2500 63T/2500 80T/2500 80T/3200 80T/4000 100T/2500 100T/3200
Bending Capacity KN 400 500 630 800 800 800 1000 1000
Bending Length mm 1600 2500 2500 2500 3200 4000 2500 3200
Between Columns mm 1250 2000 1900 1900 2600 3350 1850 2550
Throat Depth mm 230 230 250 320 320 320 320 320
Slide Stroke mm 100 100 100 100 100 100 120 120
Stroke Adjustment mm 80 80 80 80 80 80 100 100
Max. Shut Height mm 320 320 320 360 360 360 390 390
SPM min-1 ≥ 11 ≥ 11 ≥ 10 ≥ 10 ≥ 10 ≥ 10 ≥ 10 ≥ 10
Main Motor Power kW 5.5 5.5 5.5 7.5 7.5 7.5 7.5 7.5
Net Weight kg 3000 3600 4150 4800 5580 6120 5850 6500
Outline Size (L×W×H) mm 2100×1250
×2050
3150×1350
×2240
2850×1890
×2150
3180×1750
×2350
3820×1700
×2350
4350×1700
×2400
2850×1750
×2360
3790×1700
×2350
Model(AC/MB7) 100T/4000 125T/2500 125T/3200 160T/2500 160T/3200 160T/4000 160/6000
Bending Capacity KN 1000 1250 1250 1600 1600 1600 1600
Bending Length mm 4000 2500 3200 2500 3200 4000 6000
Between Columns mm 3350 1850 2550 1950 2540 3140 4800
Throat Depth mm 320 320 320 330 330 330 330
Slide Stroke mm 120 130 130 200 200 200 200
Stroke Adjustment mm 100 130 130 200 200 200 150
Max. Shut Height mm 390 390 390 465 465 465 465
SPM min-1 ≥ 10 ≥ 10 ≥ 10 ≥ 6 ≥ 6 ≥ 6 ≥ 6
Main Motor Power kW 7.5 11 11 11 11 11 11
Net Weight kg 7800 6100 7300 8900 9720 11160 18600
Outline Size (L×W×H) mm 4590×1745
×2450
3190×1945
×2420
3790×1935
×2420
3300×2225
×2560
4100×2250
×2560
4800×2250
×2560
6400×2250
×2960
Model(AC/MB7) 200T/3200 200T/4000 200T/6000 250T/3200 250T/4200 250T/5000 250T/6000
Bending Capacity KN 2000 2000 2000 2500 2500 2500 2500
Bending Length mm 3200 4000 6000 3200 4200 5000 6000
Between Columns mm 2550 3260 4800 2540 3140 4000 5000
Throat Depth mm 350 350 350 400 400 400 400
Slide Stroke mm 230 200 200 250 250 250 250
Stroke Adjustment mm 160 160 160 180 180 180 180
Max. Shut Height mm 515 515 515 535 535 535 500
SPM min-1 ≥ 3 ≥ 3 ≥ 3 ≥ 3 ≥ 3 ≥ 3 ≥ 3
Main Motor Power kW 11 11 11 18.5 18.5 18.5 18.5
Net Weight kg 12500 14300 21300 13900 15320 17100 18600
Outline Size (L×W×H) mm 3750×2180
×2950
4450×2180
×3000
6420×2180
×2900
3840×2250
×2920
4840×2250
×2920
5640×2250
×2980
6420×2250
×2980
Model(AC/MB7) 300T/4000 300T/5000 300T/6000 400T/4000 400T/6000 500T/4000 500T/6000
Bending Capacity KN 3000 3000 3000 4000 4000 5000 5000
Bending Length mm 4000 5000 6000 4000 6000 4000 6000
Between Columns mm 2900 3900 4900 3140 5000 3050 4760
Throat Depth mm 400 400 400 400 400 400 400
Slide Stroke mm 250 250 250 320 320 320 320
Stroke Adjustment mm 180 180 180 220 220 220 220
Max. Shut Height mm 535 535 535 600 600 630 630
SPM min-1 ≥ 3 ≥ 3 ≥ 3 ≥ 2.5 ≥ 2.5 ≥ 2.5 ≥ 2.5
Main Motor Power kW 22 22 22 37 37 37 37
Net Weight kg 24400 27100 29100 30100 41100 42000 47600
Outline Size (L×W×H) mm 4400×2250
×3115
5400×2250
×3115
6400×2250
×3520
4800×2625
×3700
6800×2650
×3900
4200×4500
×4760
6200×4500
×4760
Detailed Pictures
  • 2-Axis NC Hydraulic Press Brake
  • 2-Axis NC Hydraulic Press Brake
  • 2-Axis NC Hydraulic Press Brake
  • 2-Axis NC Hydraulic Press Brake
  • 2-Axis NC Hydraulic Press Brake
