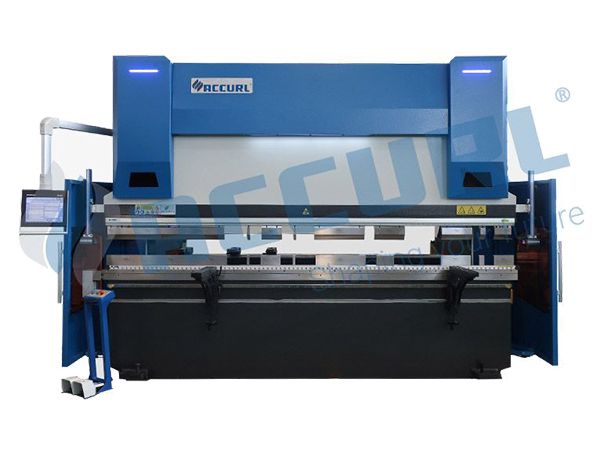

CNC Press Brake, with Delem DA58 System

EURO-PRO series press brake features an automatic CNC crowning system for improving sheet metal bending quality, a servo driven back gauge system for increased speeds, and 3D graphical control unit to simulate bending sequences and collision points. This results in increased working speeds, stroke, daylight, and pressing capacities. As a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance.

CNC Press Brake, with Delem DA58 System
Specifications
Model (EURO PRO) B2580 B25110 B32175 B32220 B40175 B40220 B40400
Bending length(mm) 2500 2500 3200 3200 4000 4000 4000
Pressing force(tons) 80 110 175 220 175 220 400
Distance between side frames(mm) 2100 2100 2700 2700 3300 3300 3300
Maximum opening(mm) 410 430 430 460 430 460 560
Maximum stroke(mm) 160 200 200 200 200 200 300
Throat depth (only if C-Frame) 320 400 400 400 400 400 450
Closing speed(mm/s) 180 200 200 180 180 165 150
Maximum working speed*(mm/s) 10 10 10 10 10 10 10
Return speed(mm/s) 150 160 160 150 160 1 50 120

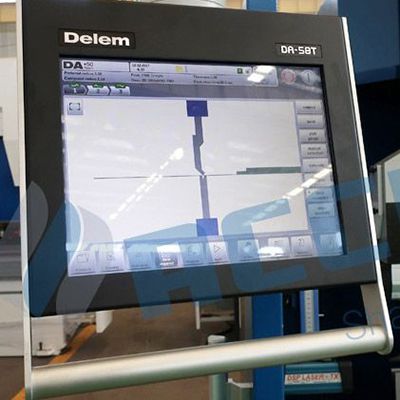

  • Delem DA58T 2D

    Delem DA58T 2D

    DA58T software maximizes machine efficiency and production output of press brakes. The Profile T software facilitates offline programming and simulation of the bending process. Production preparation, makeability and tooling verification, operator training, adding notes for production and many other functions can be carried out offline.

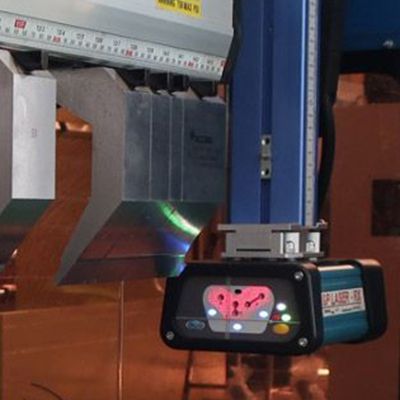

  • Laser guarding system

    Laser guarding system

    LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe's PCSS A Series, the Lazersafe is category 4 compliant and meets the world's most demanding international safety standards (with integrated CE Certified Category 4 Safety Controller).

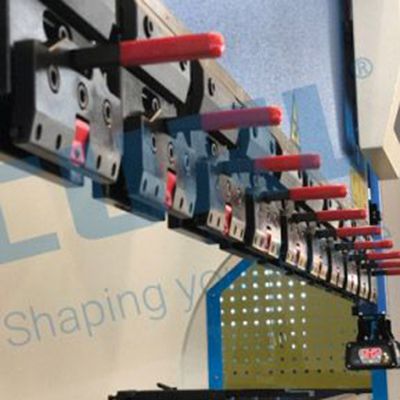

  • Europe style clamping

    Europe style clamping

    Innovative and super-fast clamping system is used for clamping punches to the upper beams of press brakes. The Universal Press Brake Concept (UPB) makes it possible install New Standard Clamping Systems on any press brake.
