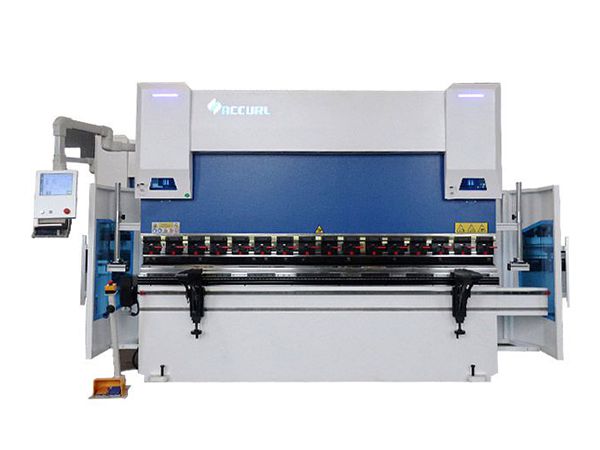

CNC Press Brake, with CybTouch 12 PS System

Designed with CybTouch 12 PS System, the CNC press brake features high rigidity, reliability and precision, making it an ideal option in the sheet metal bending industry.

CNC Press Brake, with CybTouch 12 PS System
Specifications
Model (EURO PRO) B1240 B25110 B32135 B32220 B40135 B40220 B40320
Bending length 1250 2500 3200 3200 4000 4000 4000
Pressing force 40 110 135 220 135 220 320
Distance between side frames 950 2100 2700 2700 3300 3300 3300
Maximum opening 380 430 430 460 430 460 560
Maximum stroke 160 200 200 200 200 200 300
Throat depth (only if C-Frame) 320 400 400 400 400 400 400
Closing speed 180 200 200 180 180 165 160
Return speed 150 160 160 150 160 150 125
  • AMB (HOERBIGER hydraulic system)

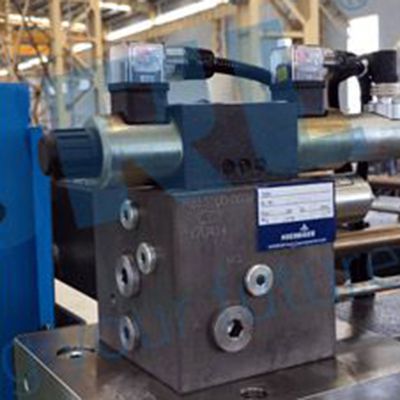

    AMB (HOERBIGER hydraulic system)

    ACCURL CNC press brake is designed with an advanced HOERBIGER hydraulic system (AMB). All hydraulic components are grouped together in one hydraulic system including pump, valve, pressure filter and performance module, which is centrally controlled by one control block.

  • Laser guarding system

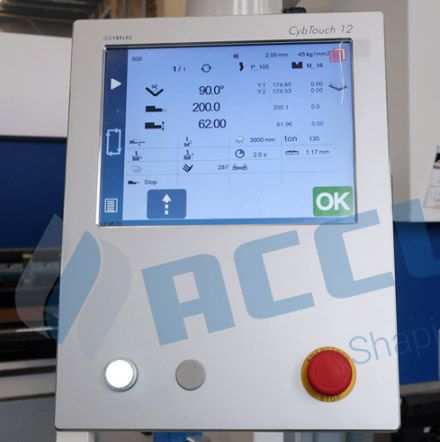

    CybTouch 12 PS 2D CNC control system

    The Profile T software offers advanced programming in 2D in line with the Cyb-Touch controller software. The steps from the start of programming to the desired program including its transfer to the control are clearly embedded in the user interface. Programming the product graphically shows a true scale representation of the intended product. Realistic product visualization gives feedback on feasibility, collisions, required tools and tool adapters for production.

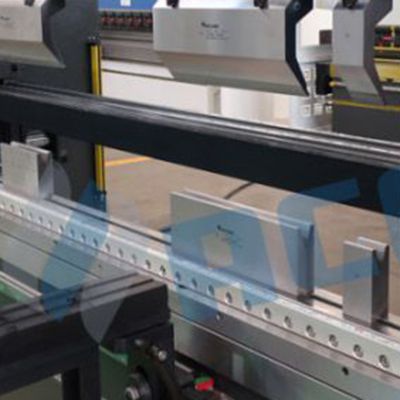

  • Quick clamp system

    Quick clamp system

    Innovative and super-fast clamping system is used for clamping punches to the upper beams of press brakes. The Universal Press Brake Concept (UPB) makes it possible install New Standard Clamping System on any press brake.
