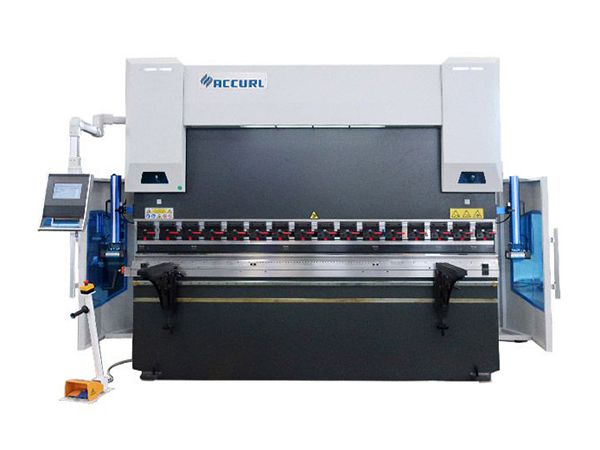

CNC Press Brake, with ESA S660W System

Environmentally friendly and energy saving, Accurl CNC press brakes can meet almost every bending need. If you want to bend metal, you can choose your desired model from the parameter table. In addition, we can also provide customized machine model.

CNC Press Brake, with ESA S660W System
Specifications
Model (EURO PRO) B2580 B25110 B32135 B32220 B40135 B40175 B40320 B40400
Bending length(mm) 2500 2500 3200 3200 4000 4000 4000 4000
Pressing force(tons) 80 110 135 220 135 175 320 400
Distance between side frames(mm) 2100 2100 2700 2700 3300 3300 3300 3300
Maximum opening(mm) 410 430 430 460 430 430 560 560
Maximum stroke(mm) 160 200 200 200 200 200 300 300
Throat depth (only if C-Frame) 320 400 400 400 400 400 400 450
Closing speed(mm/s) 180 200 200 180 180 180 160 150
Maximum working speed*(mm/s) 10 10 10 10 10 10 10 10
Return speed(mm/s) 150 160 160 150 160 160 125 120

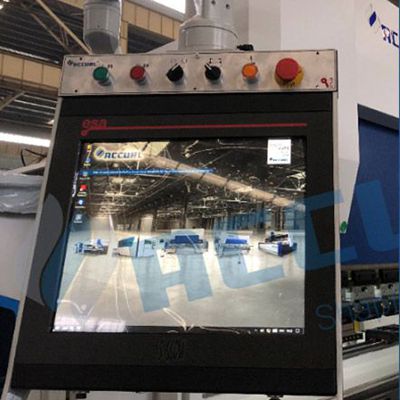

  • ESA S660w 3D CNC control system

    ESA S660w 3D CNC control system

    The Profile T software offers advanced programming in 3D in line with the ESA S660w CNC System. The steps from the start of programming to the desired program including its transfer to the control are clearly embedded in the user interface. Programming the product graphically shows a true scale representation of the intended product. Realistic product visualization gives feedback on feasibility, collisions, required tools and tool adapters for production.

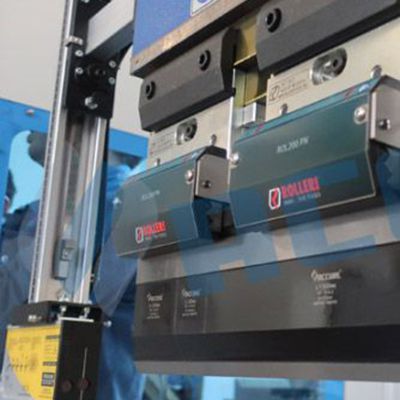

  • Europe style clamping system

    Europe style clamping system

    Innovative and super-fast clamping system is used for clamping punches to the upper beams of press brakes. The Universal Press Brake Concept (UPB) makes it possible install New Standard Clamping System on any press brake.

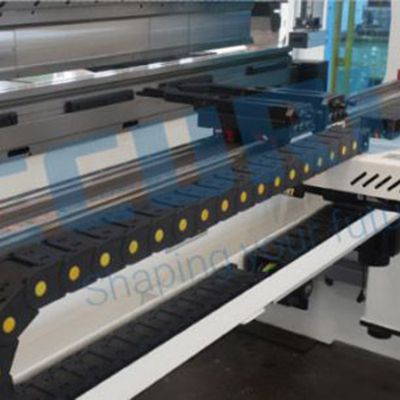

  • BGA-4 for X and R-Axis CNC

    BGA-4 for X and R-Axis CNC

    The press brake is equipped with BGA Series CNC backgauge system with durable construction in order to assure maximum repetition accuracy and high precision in axes positioning.
