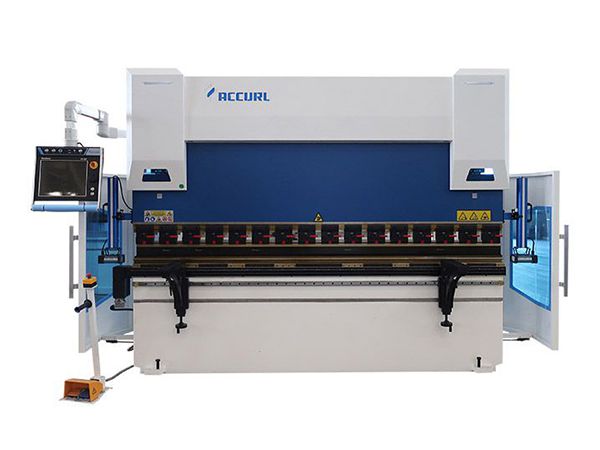

Euro Pro Series CNC press brake is manufactured according to the European standards, with high machine performance and quality. There are seven models available to meet different sheet metal bending needs. Designed with DELEM DA66T 3D CNC control system, this sheet metal bending machine features high precision and efficiency during the bending process.
|Distance between side frames(mm)||2100||2100||2700||2700||3300||3300||3300|
|Throat depth (only if C-Frame)||320||400||400||400||400||400||450|
|Maximum working speed*(mm/s)||10||10||10||10||10||10||10|

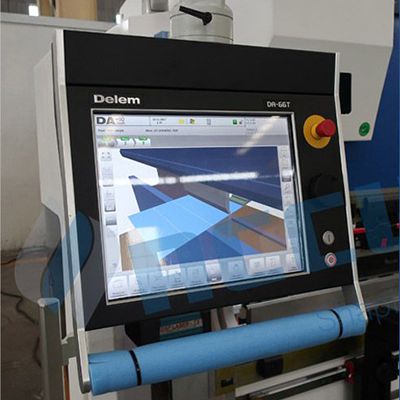

DA66T software maximizes machine efficiency and production output of press brakes. The Profile T software facilitates offline programming and simulation of the bending process. Production preparation, makeability and tooling verification, operator training, adding notes for production and many other functions can be carried out offline.

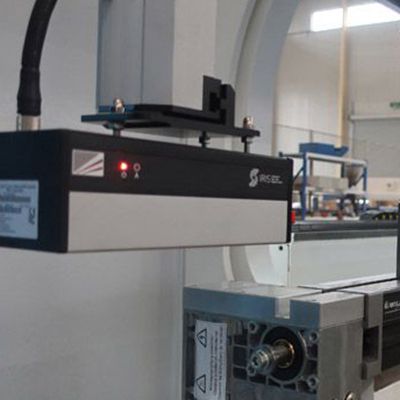

LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe's PCSS A Series, the Lazersafe is category 4 compliant and meets the world's most demanding international safety standards (with integrated CE Certified Category 4 Safety Controller).

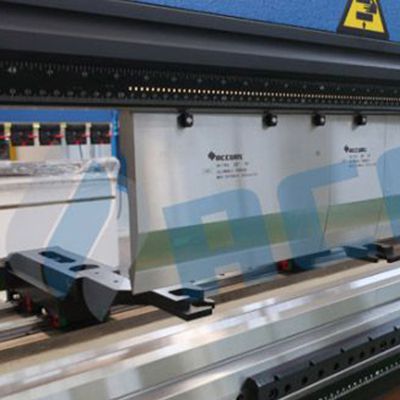

Quick clamp system Innovative and super-fast clamping system is used for clamping punches to the upper beams of press brakes. The Universal Press Brake Concept (UPB) makes it possible install New Standard Clamping System on any press brake.
