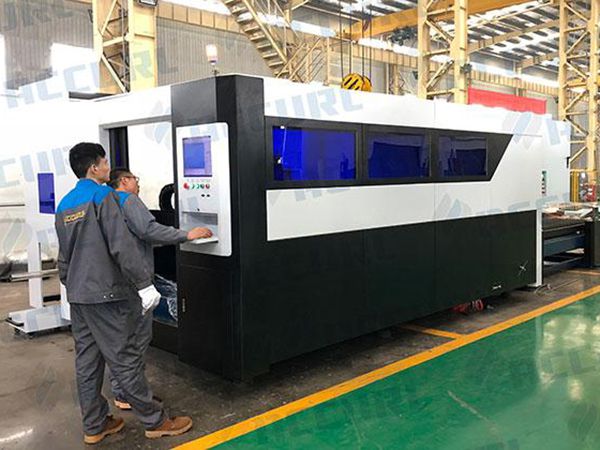

1KW IPG Fiber Laser CNC Aluminum Cutting Machine

ACCURL's 1000Watt fiber laser cutting machine features a fast cutting and energy efficiency, especially when compared to CO2 lasers. With its easy to use structure that requires little to no maintenance, its service is among the highest of fiber lasers, and s globally recognized for its efficiency.

1KW IPG Fiber Laser CNC Aluminum Cutting Machine

Features:
• User friendly FISCUT CypCut CNC control unit
• Very easy to operate.
• Quick and easy installation.
• Low investment and operating costs.
• The most cost-efficient solution for every requirement.
• Flexible beam path
• High output power
• High optical quality
• Up to %300 faster cutting
• High wall plug efficiency (>%30)
• Copper, brass cutting ability
• Advanced Raytools cutting head (with air cross blast).
• High performance and high accuracy rack and pinion system.
• Dual proportional valve control system for different gas pressures and special system for high

Standard Equipment:
• FISCUT CypCut CNC Controller
•IPG YLS-1000W Ytterbium Laser Resonator
•Automatic Double Pallet Changer(Shuttle Table)
• Precision Rack & Pinion Drive System (Made in Germany)
• Radan or Lantek CAD/CAM system
• Light source
• Chiller
• 3 lower protective lenses
• Fiber Beam Transmission System (Fiber Cable)
• Operates with both N2 and O2 (cutting) gases
• Home Position Alignment System
• Auxiliary Gas Selector
• Auto Reflection Warning
• Working Lights
• 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)

Technical Specification:
Laser power 1000W IPG Fiber Laser Cutting Machine
Laser source Germany IPG fiber laser resonator
Processing surface (L × W) 3000mm x 1500mm
CNC control Shanghai FISCUT CypCut
Laser head Switzerland Raytools
Power supply AC380V±5% 50/60Hz (3 phase)
Total electric power 14KW
Position accuracy X, Y and Z axle +0.03mm
Repeat position accuracy X, Y and Z axle +0.02mm
Maximum position speed of X and Y axle 72m/min
Acceleration 2.1G
Max load of working table 1000kg
Drawing programming mode AI, DWG, PLT, DXF format import directly
Machine weight 5T
*** Note: As products are constantly updated, please contact us for latest specifications. ***
Cutting Thickness Limit:
Material Cutting Thickness Limit
Carbon steel 12mm
Stainless steel 6mm
Aluminum 4mm
Brass 3mm
Copper 3mm
Main Parts:
Article Name Remark
Fiber laser resonator IPG (Germany)/1000W
Servo motor and driver DELTA (Taiwan)
Ball screw rod HIWIN (Taiwan)
Liner guide HIWIN (Taiwan)
Gear rack YYC (Taiwan)
Laser head RAYTOOLS (Switzerland)
Chiller TONG FEI (China)
Controller FISCUT (China)
Gas Proportional valve SMC (Japan)
Reduction gear box APEX (Taiwan)
Detailed Pictures
  • Germany PRECITEC Spain FAGOR Servo motor and drive Germany PRECITEC Laser Cutting Head

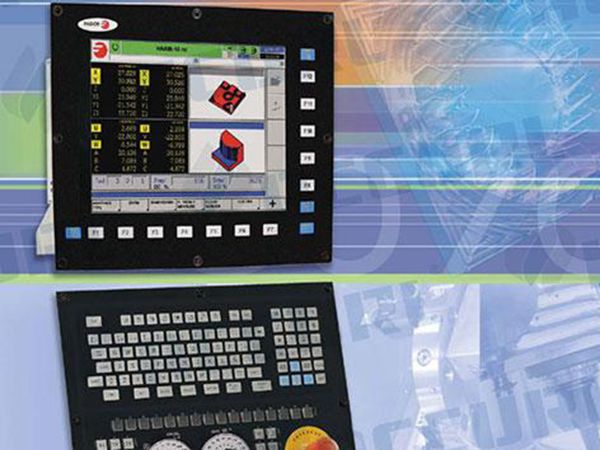

  • Spain FAGOR 8060 CNC SystemSpain FAGOR 8060 CNC System

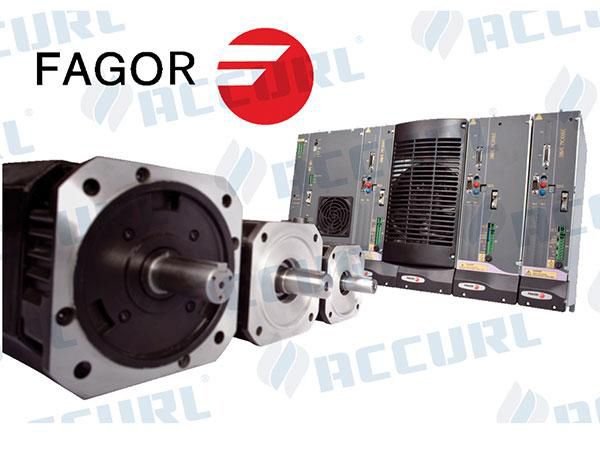

  • Spain FAGOR Servo motor and driveSpain FAGOR Servo motor and drive
  • STOBER Precision Rack and Pinion Drive System (Made in Germany) STOBER Precision Rack and Pinion Drive System (Made in Germany)
  • Linear guide and Rack Linear guide and Rack
  • Framework by heat treatment Framework by heat treatment

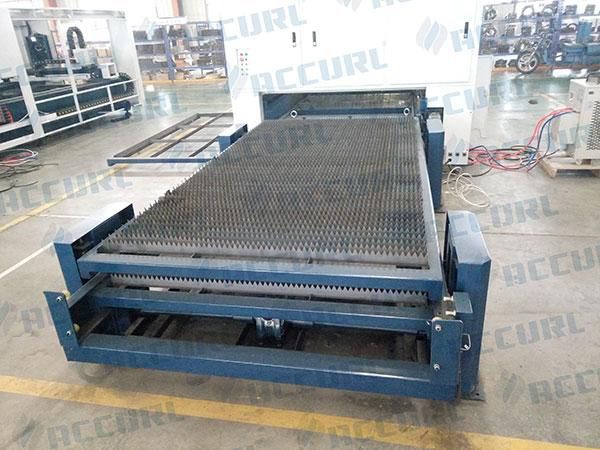

  • Automatic Double Pallet Changer(Shuttle Table) Automatic Double Pallet Changer(Shuttle Table)
