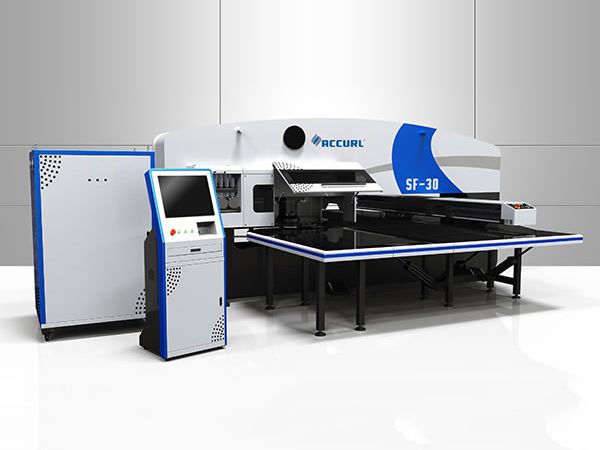

Hydraulic CNC Turret Punch Press MAX SF-30T
By offering the choice between of our well known TP-H series machines classical thick-turret style, Accurl proudly offers a full range of punching solutions both in performance and price range.
General Features
1.Accurl Turret Punch, presses are produced as a closed type rigid steel constructionsin to a robust structure to allow minimum deflection during operation.
2.Operating System is CNC and hydraulic.
3.Accurl Turret Punch 4 axes controlling; X, Y axes for movement of sheet, T axes:Turret rotation, C axis: Auto-index station rotation for indexing tools.
4.The 32 station Turret as to allow punching complicated, multi anddifferent size holes parts in a single operation.
5.Auto –index stations can punch to required angle for various angle shape parts with CNC controller.
6.Precision forming and roller tools can be use on the Turret, therefore TP Turret punch provides
7.Complete solutions with effective costs.
Design to Production;
Metalix CNCCAD CAD/CAM software offersan integrated system cover to the user whichincludes the complete cycle of CNC operation.
Punch Technology;
• Special Tool drawing
• Auto-index functions
• Auto clamp positioning
• Automatic Sheet Repositioning
• CNCCAD provides automatic or manualnesting for effective use of sheet metal
• Roller Tools usable
• Common cut function
• Ribbon cutting for splitting sheet
• Auto index reducing cycle time functionswith rotations to nearest position
• Tools punch sequence selection
Standard Equipments
• 4 Axes CNC System
• Siemens 808D CNC unit, servo motors and drivers
• Rexroth and HL hydraulic unit
• 32 Stations Turret10 A Stations16 B Stations2 C Stations4 D Station (2 of them Auto Index)
• Repositioning of Clamps
• Automatic reference
• CAD/CAM program
• Automatic Clamping
Optional Equipments
• Tool Adaptors
• Extra D index station
• Thin &Thick Turret Tools
Technical Parameters of the Hydraulic Driven CNC Turret Punch Press:
| Item / Model | |
|
|
|
||
| Nominal Force | kN | 300 | 300 | 300 | 300 | 500 |
| Max. Sheet Thickness | mm | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 |
| Max. Tool Size | mm | Φ88.9 | Φ88.9 | Φ88.9 | Φ88.9 | Φ88.9 |
| Max. Sheet Size (One-time repositioning) | mm | 1250×2500 | 1250×4000 | 1250×5000 | 1500×5000 | 1250×5000 |
| Punching Accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Max. Hit Rate | h.p.m | 600/900 | 600/900 | 600/900 | 600/900 | 300 |
| Number of Stations | set | 32 | 32 | 32 | 32 | 32 |
| Number of Indexing Tool | set | 2 | 2 | 2 | 2 | 2 |
| Quantity of Controlling Axes | pcs | 4(X, Y, T, C) | 4(X, Y, T, C) | 4(X, Y, T, C) | 4(X, Y, T, C) | 4(X, Y, T, C) |
| Machine Weight | kg | 14000 | 15000 | 16000 | 17000 | 21000 |
| Overall Dimensions | mm | 4965×2800 | 4965×4400 | 4965×5200 | 5210×5200 | 4965×5200 |
| ×2110 | ×2110 | ×2110 | ×2110 | ×2110 | ||
