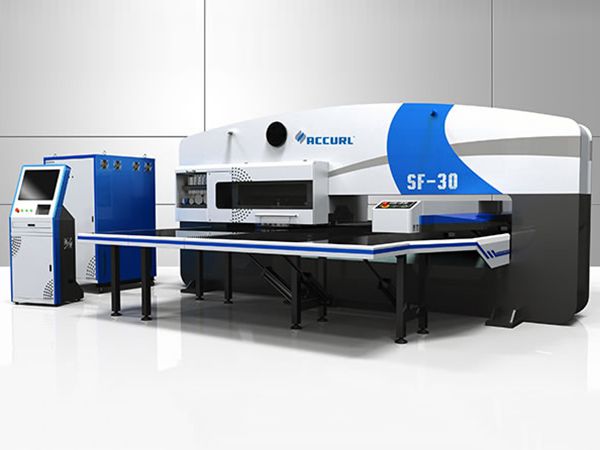

Servo Driven CNC Turret Punch Press Smart-SF-30

Servo Driven CNC Turret Punch Press

Servo Driven CNC Turret Punch Press Smart-SF-30

General Features

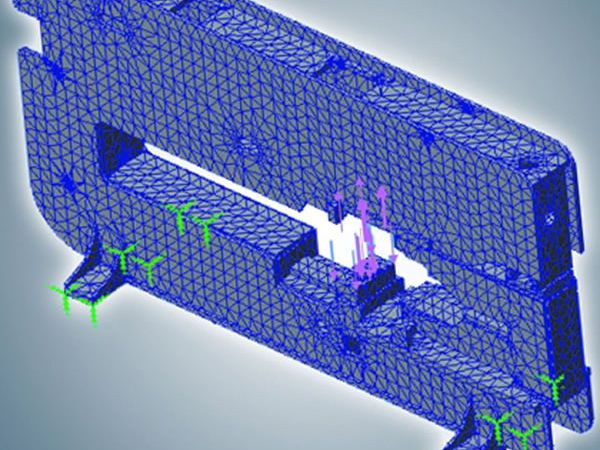

1.Accurl Turret Punch, presses are produced as a closed type rigid steel constructionsin to a robust structure to allow minimum deflection during operation.
2.Operating System is CNC and hydraulic.

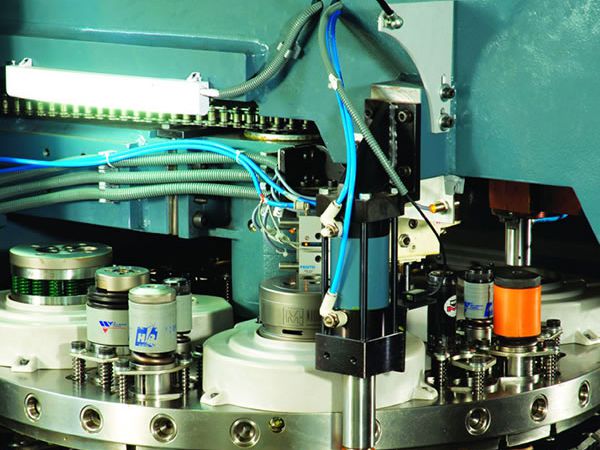

3.Accurl Turret Punch 4 axes controlling; X, Y axes for movement of sheet, T axes:Turret rotation, C axis: Auto-index station rotation for indexing tools.

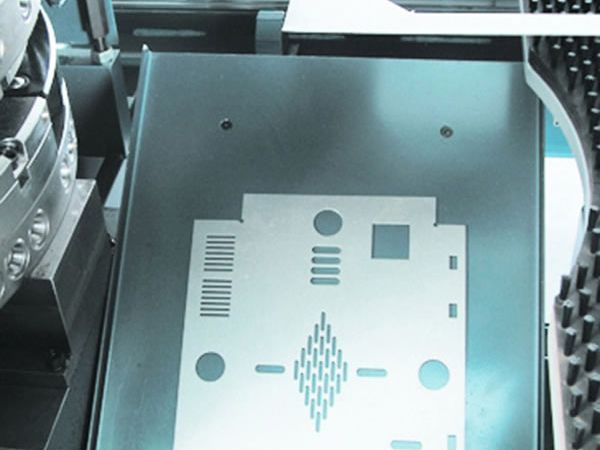

4.The 32 station Turret as to allow punching complicated, multi anddifferent size holes parts in a single operation.
5.Auto –index stations can punch to required angle for various angle shape parts with CNC controller.
6.Precision forming and roller tools can be use on the Turret, therefore TP Turret punch provides
7.Complete solutions with effective costs.

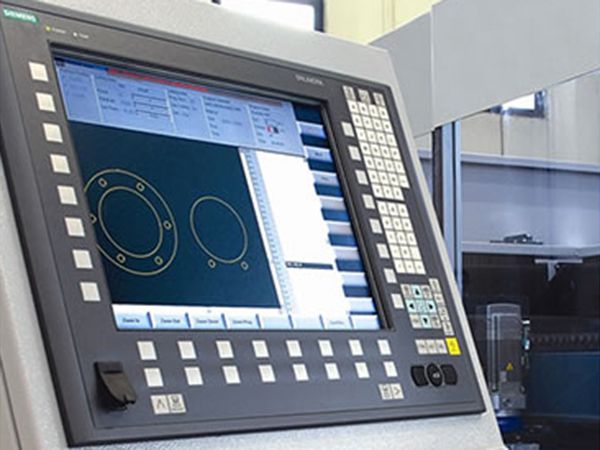

Design to Production;
Metalix CNCCAD CAD/CAM software offersan integrated system cover to the user whichincludes the complete cycle of CNC operation.

New Drive Ram Mechanism
The ram drive of TP-MAX125 has incorporated CFRP in the part of toggle mechanism connected directly to the servomotor making it lighter in weight and more rigid. The new drive mechanism and the replacement of the alternating movement decreases vibration by 65%. In addition, a reduction of motor heat saves energy in cooling and the resuscitation of electric energy when braking.

Standard Equipments
• 4 Axes CNC System
• ANUC PC CNC unit, servo motors and drivers
• Rexroth and HL hydraulic unit
• 32 Stations Turret10 A Stations16 B Stations2 C Stations4 D Station (2 of them Auto Index)
• Repositioning of Clamps
• Automatic reference
• CAD/CAM program
• Automatic Clamping

Optional Equipments
• Tool Adaptors
• Extra D index station
• Thin &Thick Turret Tools

Technical Parameters of Servo Driven CNC Turret Punch Press:

Item / Model SPH-MAX1250 SPH-MAX1250X
Nominal Force kN 200 300
Max. Sheet Thickness mm 6.35 6.35
Max. Tool Size mm Φ88.9 Φ88.9
Max. Sheet Size(One-time repositioning) mm 1250×5000 1250×5000
Punching Accuracy mm ± 0.1 ± 0.1
Driving System Drive Type Servo V.R. Servo V.R.
AC Motor Power kW 16 16
Max. Sheet Weight kg 150 150
Max. Marking Rate h.p.m 1800 1800
Max. Punching Rate (10mm stroke) 1mm pitch h.p.m 1000 1000
25mm pitch 500 500
Max. Feed Rate m/min 110 110
Quantity of Rotary Station 40(4)/50(2IT/2MT) 32 (2)
Rotary Station Exchangeable Tool Type C/D/MT6A/E -
Quantity of Secondary Indexing Sub-tools 12 -
Quantity of Control Shaft pcs 6+1(X/Y1/Y2/T/C/C1/A) 5(X, Y, T, C, A)
Machine Weight kg 16000 16000
Overall Dimensions mm 4965×5200×2110 4965×5200×2110
