1KW~6KW High Power Fiber Laser CNC Cutting Machine

1KW~6KW High Power Fiber Laser CNC Cutting Machine

The outstandingly flexible Accurl eco-fiber 1kw~6kw fiber laser cutter is specially designed for ultra-high speed cutting operations for thin sheet materials. The automated cutting equipment can cut through ferrous and non-ferrous materials with excellent low cost operation.

User-friendly Fagor 8060 CNC control unit.
Unique features:
Maximum simultaneous positioning speed: 160m/min.
Acceleration speed: 25 m/ s2 (2.5G).
Precision: ± 0.05 mm.
Energy efficiency: greatly reduced power consumption.
IPG YLS-1000w Resonator

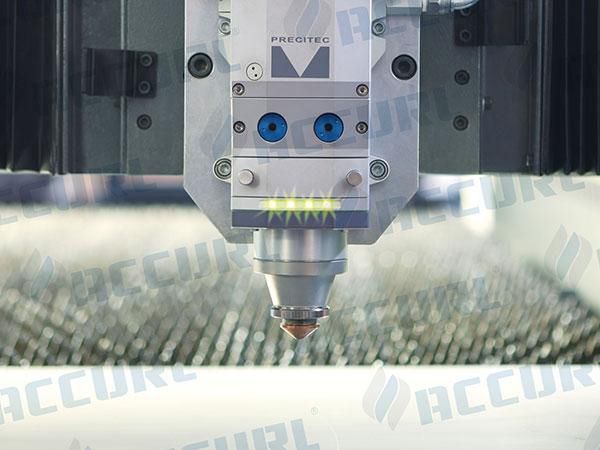

Advanced PRECITEC cutting head (with air cross blast).

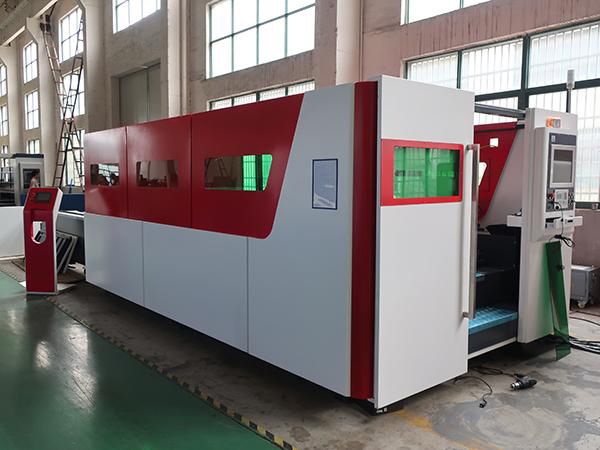

Fully enclosed designed for maximum operator protection.
Effective high to low pressure gas exchange system.
High pressure cutting head with high precision capacitive sensor/
Automatic mechanized Nesting power output control function.
Automatic time and unit cost calculation function.
External network connectivity
Smoke extraction unit (included in series models).
Workpiece and trimming collection unit.
Dual proportional valve control system for different gas pressures and a high pressure cutting system.

Standard Equipment:

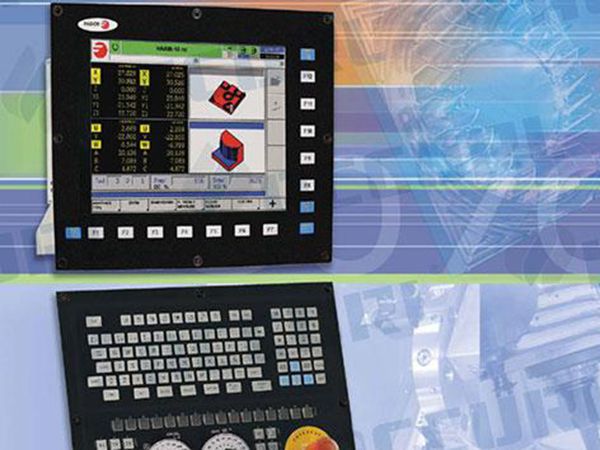

FAGOR 8060 CNC Controller
IPG YLS-1KW~6KW Ytterbium Laser Resonator

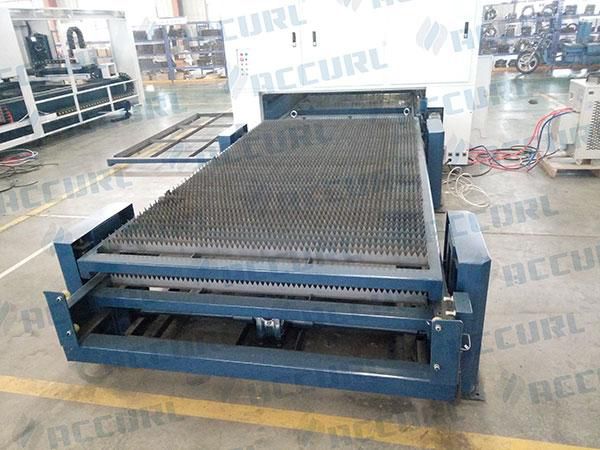

Automatic double pallet changer (Shuttle Table)

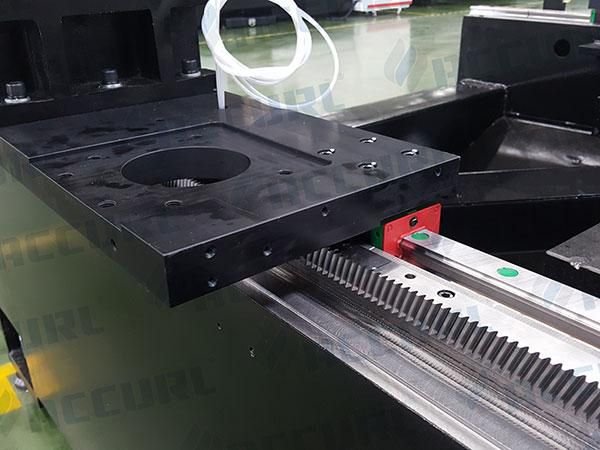

Precision Rack & Pinion Drive System (Made in Germany)
Radan or Lantek CAD/CAM system

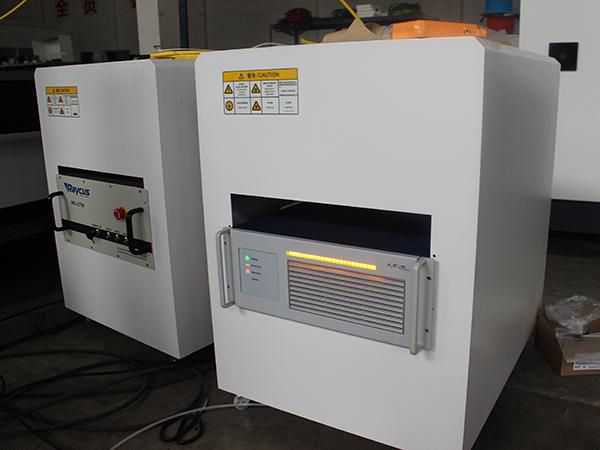

Light source
Chiller
3 lower protective lenses
3 Ceramic Nozzle Adapters
Auto-calibrated nozzle system
Lens with 5.9” Focus Length
Smart Slag Collection System/ Chip Conveyor
Fiber Beam Transmission System (Fiber Cable)
Operates with both N2 and O2 (cutting) gases
Home Position Alignment System
Auxiliary Gas Selector
Auto Reflection Warning
Working Lights
5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)

Specification
Model ECO-FIBER 3015 / 1KW
CNC Control Unit FAGOR 8060 CNC System
X axis (Rack & Pinion) 3000 mm
Y axis (Rack & Pinion) 1500 mm
Z axis (Ball Screw) 100 mm
Maximum cutting capacity Mild steel 10 mm
Stainless steel 4 mm
Aluminum 3 mm
Work piece dimensions 1525 x 3050 mm
Rapid traverse (X and Y axis) 105 m/min
Acceleration 2.5G (25m/s2)
Vector speed 148 m/min
Absolute positioning accuracy ± 0.08 mm
Repeatability (X and Y axis) ± 0.03 mm
Max. load capacity 2450 kg
High Performance CNC System FAGOR 8060 from Spain Brand
Laser power IPG YLS-1 kW from Germany

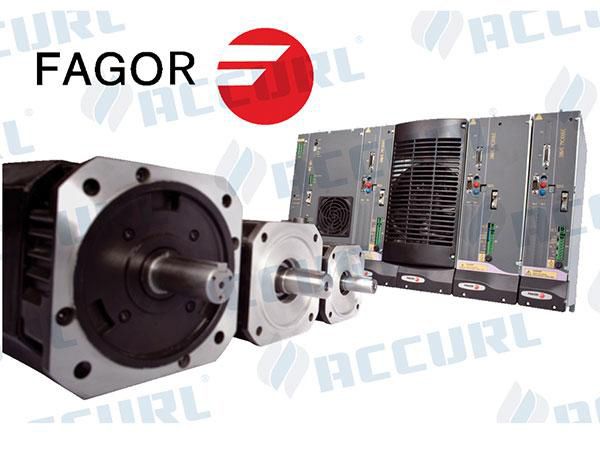

High Performance Servo motor/drive FAGOR from Spain Brand
Laser Cutting Head PRECITEC from Germany

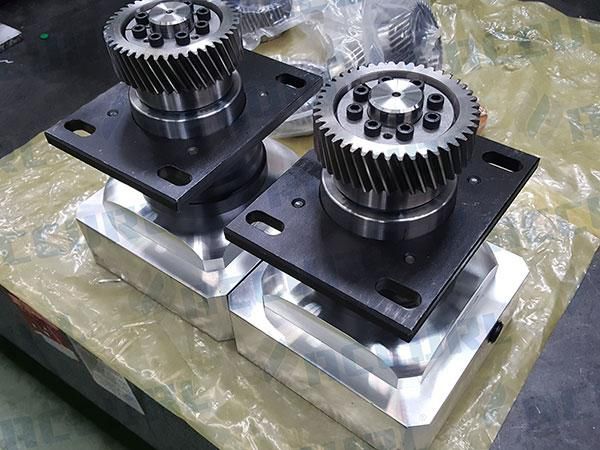

Motoreducer STOBER from Germany
Model ECO-FIBER 3015 / 2KW
CNC Control Unit FAGOR 8060 CNC System
X axis (Rack & Pinion) 3000 mm
Y axis (Rack & Pinion) 1500 mm
Z axis (Ball Screw) 100 mm
Maximum cutting capacity Mild steel 16 mm
Stainless steel 8 mm
Aluminum 6 mm
Work piece dimensions 1525 x 3050 mm
Rapid traverse (X and Y axis) 105 m/min
Acceleration 2.5G (25m/s2)
Vector speed 148 m/min
Absolute positioning accuracy ± 0.08 mm
Repeatability (X and Y axis) ± 0.03 mm
Max. load capacity 2450 kg
High Performance CNC System FAGOR 8060 from Spain Brand
Laser power IPG YLS-2 kW from Germany
High Performance Servo motor/drive FAGOR from Spain Brand
Laser Cutting Head PRECITEC from Germany
Motoreducer STOBER from Germany
Model ECO-FIBER 3015 / 3KW
CNC Control Unit FAGOR 8060 CNC System
X axis (Rack & Pinion) 3000 mm
Y axis (Rack & Pinion) 1500 mm
Z axis (Ball Screw) 100 mm
Maximum cutting capacity Mild steel 20 mm
Stainless steel 10 mm
Aluminum 8 mm
Work piece dimensions 1525 x 3050 mm
Rapid traverse (X and Y axis) 105 m/min
Acceleration 2.5G (25m/s2)
Vector speed 148 m/min
Absolute positioning accuracy ± 0.08 mm
Repeatability (X and Y axis) ± 0.03 mm
Max. load capacity 2450 kg
High Performance CNC System FAGOR 8060 from Spain Brand
Laser power IPG YLS-3 kW from Germany
High Performance Servo motor/drive FAGOR from Spain Brand
Laser Cutting Head PRECITEC from Germany
Motoreducer STOBER from Germany
Model ECO-FIBER 3015 / 4KW
CNC Control Unit FAGOR 8060 CNC System
X axis (Rack & Pinion) 3000 mm
Y axis (Rack & Pinion) 1500 mm
Z axis (Ball Screw) 100 mm
Maximum cutting capacity Mild steel 25 mm
Stainless steel 12 mm
Aluminum 10 mm
Work piece dimensions 1525 x 3050 mm
Rapid traverse (X and Y axis) 105 m/min
Acceleration 2.5G (25m/s2)
Vector speed 148 m/min
Absolute positioning accuracy ± 0.08 mm
Repeatability (X and Y axis) ± 0.03 mm
Max. load capacity 2450 kg
High Performance CNC System FAGOR 8060 from Spain Brand
Laser power IPG YLS-4 kW from Germany
High Performance Servo motor/drive FAGOR from Spain Brand
Laser Cutting Head PRECITEC from Germany
Motoreducer STOBER from Germany
Model ECO-FIBER 3015 / 6KW
CNC Control Unit FAGOR 8060 CNC System
X axis (Rack & Pinion) 3000 mm
Y axis (Rack & Pinion) 1500 mm
Z axis (Ball Screw) 100 mm
Maximum cutting capacity Mild steel 32 mm
Stainless steel 16 mm
Aluminum 16 mm
Work piece dimensions 1525 x 3050 mm
Rapid traverse (X and Y axis) 105 m/min
Acceleration 2.5G (25m/s2)
Vector speed 148 m/min
Absolute positioning accuracy ± 0.08 mm
Repeatability (X and Y axis) ± 0.03 mm
Max. load capacity 2450 kg
High Performance CNC System FAGOR 8060 from Spain Brand
Laser power IPG YLS-6 kW from Germany
High Performance Servo motor/drive FAGOR from Spain Brand
Laser Cutting Head PRECITEC from Germany
Motor reducer STOBER from Germany
Detailed Pictures
  • 1KW~6KW High Power Fiber Laser CNC Cutting Machine
  • 1KW~6KW High Power Fiber Laser CNC Cutting Machine
  • 1KW~6KW High Power Fiber Laser CNC Cutting Machine
  • 1KW~6KW High Power Fiber Laser CNC Cutting Machine
  • 1KW~6KW High Power Fiber Laser CNC Cutting Machine
  • 1KW~6KW High Power Fiber Laser CNC Cutting Machine
  • 1KW~6KW High Power Fiber Laser CNC Cutting Machine
  • 1KW~6KW High Power Fiber Laser CNC Cutting Machine
