Four-Column Hydraulic Press

(Double Action Drawing)

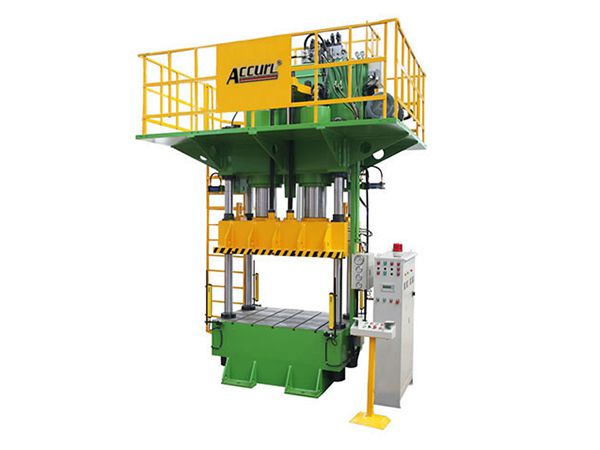

Four-Column Hydraulic Press

This particular four-column hydraulic press is a double action deep drawing press used to create more complex deep drawn stampings. The double-acting components of the hydraulic press help create deep drawn metal parts without wrinkles and greatly increase the speed of the metal forming line.

Request a Quote
Features
  • The four-column hydraulic press uses 2-way cartridge valves to maintain high control over flow rate.
  • The electrical system of the deep drawing press is PLC controlled for convenient operation.
  • The press is noted for its high speed operation under no-load conditions.
  • This series of four-column hydraulic press is specially designed for a variety of sheet metal drawing functions, such as forming, flanging, bending, and stamping.
  • The double action press works reliably during high speed operation and displays large amounts of power with maximum energy efficiency.
Specifications
Model
YL28- 100/150
YL28- 160/250
YL28- 200/315
YF28- 400/650
YL28- 500/820
YL28- 630/1030
Capacity kN 1500 2500 3150 6300 8200 10300
Drawing Slide Drawing Force kN 1000 1600 2000 4000 5000 6300
Pressing Slide Pressing Force kN 125 × 4=500 225 × 4=900 288 × 4=1152 630 × 4=2520 800 × 4=3200 1000 × 4=4000
Ejecting Force kN 190 280 400 630 1000 1250
Drawing Slide Return Force kN 165 210 240 500 900 850
Pressing Slide Return Force kN 29 × 4=116 41 × 4=164 66 × 4=264 134 × 4=536 150 × 4=600 240 × 4=960
Max. Hydraulic Pressure MPa 25 25 25 25 25 25
Pressing SlideCenter Hole mm φ350 φ450 φ550 800 × 800 1400 × 800 1600 × 1000
Max. Drawing Slide Shut Height mm 900 1100 1250 1500 1600 1800
Max. Pressing Slide Shut Height mm 650 800 900 1050 1100 1250
Max. Drawing Slide Stroke mm 500 560 710 800 800 900
Max. Pressing Slide Stroke mm 500 560 710 800 800 900
Ejecting Stroke mm 200 200 250 350 350 400
Drawing Slide LR mm 800 1120 1200 1600 2200 2500
FB mm 800 1000 1200 1600 1600 1800
Pressing Slide LR mm 800 1120 1200 1600 2200 2500
FB mm 800 1000 1200 1600 1600 1800
Drawing Slide Speed Idle Stroke mm/s 80 100 120 120 130 150
Pressing mm/s 8-20 8-20 8-20 5-12 7-15 7-15
Return mm/s 120 140 150 85 80 105
Pressing Slide Speed Idle Stroke mm/s 70 80 90 100 110 130
Pressing mm/s 16-40 15-35 15-35 8-20 9-23 9-23
Return mm/s 170 170 135 90 120 95
Bolster LR mm 800 1120 1200 1600 2200 2500
FB mm 800 1000 1200 1600 1600 1800
Outline Size LR mm 2700 3200 3600 4100 4800 5300
FB mm 1400 1500 1700 1800 2000 2200
Above Floor mm 3300 3900 4300 4800 5200 5700
Motor Power kW 5.5+5.5+3
=14		 7.5+7.5+3
=18		 15+7.5+4
=26.5		 15+15+4
=34		 22+22+7.5
=51.5		 30+30+7.5
=67.5
Weight kg 7200 12500 17500 38000 62000 85000
