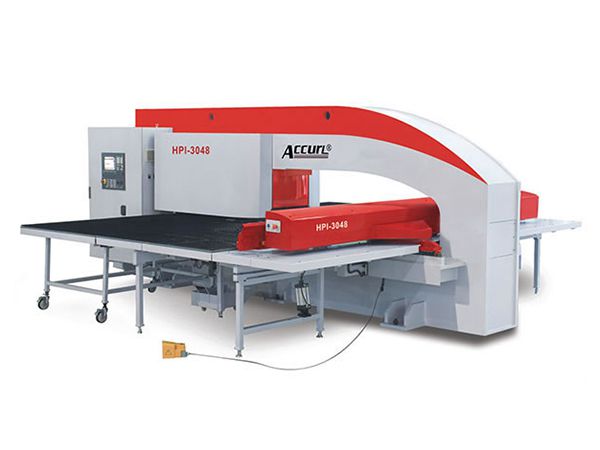

CNC Turret Punching Press Machine MVD-HPI-3048

Punching solutions both in performance and price range

By offering the choice between of our well known Q-series machines and the HPI-series classical thick-turret style, Haco proudly offers a full range of punching solutions both in performance and price range.

The HPI-series CNC turret punch press offers an O-frame and is characterized by rigidity and high geometric precision. It features a capacity of 30 metric tons and is able to work in mild steel thicknesses up to 6,5 mm.

CNC Turret Punching Press Machine MVD-HPI-3048

30 stations
The well engineered mechanical parts in the H+L Hydraulic ram are manufactured according to high precision standards. The HS3 electronic stoke control of this CNC punching machine is controlling the speed and stroke of the 30 tons hydraulic punching head.

The HPI-series CNC machine tool is equipped with a thick turret tool holder, consisting of 30 stations. It comes with standard with 2 Auto Index "D" stations. An additional two auto-indexing stations are optional.

Siemens control
The HPI-series turret press is comes standard with the Siemens 802D SL operator control, combining all components of a CNC (NC, PLC, HMI) and drive control in a single unit.

Plate clamps for easy sheet movement
An important aspect during punching/nibbling operations is supporting the sheet while the X- and Y- axis are moving. The tables are not connected to the Y-axis and are not moving. The floating plate clamps move the sheet over the table. The table of the HPI-series offer a combination of balls and brushes, for easy and silent sheet movement.

CE-approved
When designing the ATT-series, the safety aspect has been specifically taken care of. This is done by means of a CE-approved optical detection-system that is placed around the machine working area.

Features
1. This metalworking equipment has a 30 Ton hydraulic punching force
2. Deep throat Y = 1500mm
3. O-Frame for maximum rigidity and precision
4. Thick turret style tooling
5. Automatic sheet repositioning
6. Up to 4 auto index stations
7. The metal fabrication equipment adopt CNC control of Siemens
8. Combined balls-brushes table for optimal sheet movement
9. Complies with safety rules

Specifications
Model MVD-HPI-30
Punching Capacity kN 300 300 300 300 300
Max. Machining Sheet (Repositioning) mm 1250 1250 1250 1500 1500
2500 4000 5000 4000 5000
Slide Stroke mm 32 32 32 32 32
Max. Plate Thk mm 6.35 6.35 6.35 6.35 6.35
Max. Punching Dia . mm Φ88.9 Φ88.9 Φ88.9 Φ88.9 Φ88.9
Die Qty. pc 30 30 30 30 30
Punching Accuracy mm ± 0.10 ± 0.10 ± 0.10 ± 0.10 ± 0.10
Slide SPM mm 600/*900 600/*900 600/*900 600/*900 600/*900
Max. Speed m/min 106 106 106 106 106
Frame Straight Straight Straight Straight Straight
O-Type O-Type O-Type O-Type O-Type
Throat Depth mm 1275 1275 1275 1525 1525
Control Axis pc 4 4 4 4 4
Turret Speed r/min 30 30 30 30 30
Max. Punching Dia . Of Rotary Station mm Φ88.9 Φ88.9 Φ88.9 Φ88.9 Φ88.9
Power kw 25 25 25 25 25
Max. Weight kg 156 156 210 210 235
Air Pressure MPa 0.55 0.55 0.55 0.55 0.55
Outline Size (FB×LR×H) mm 5050×2700×2010 5050×4200×2010 5050×5200×2010 5650×4200×2010 5650×5200×2010
Weight t 19.5 20 20.5 21.5 22

The perfect CNC turret punching machine

With our 22 or 30 tons high speed servo hydraulic punching head, sheet dimensions 2000 x 1500 mm and rotation axis for all tools, the Haco Q3 is the perfect CNC turret punching machine. The large fully-brushed sheet support tables and the standard repositioning cylinders, allow for standard sheet sizes to be processed easily.

The user friendly TPS 84S Graphics controller offers everything you need to fit the high demands in contemporary punching. The high speed control, fast processing and intuitive user interface results in an innovative system capable of handling simple as well as complex tasks. From the initial idea to the production of parts, the TPS 84S Graphics is your ideal partner.

Standard features
1. High speed servo-controlled punching head
2. 6 axis CNC TPC69T Graphics touch screen control with graphical programming
3. 4 Repositioning cylinders (2 upper, 2 lower)
4. 3 Hydraulic sheet clamps
5. 4 Vibration dampers
6. 12 or 20 tool stations complete with tool holders
7. Slug suction device
8. Part chute door 300x470mm
9. Quick tool set for tool alignment
10. CE optical safety light
11. Automatic oil spray machine

Specifications
Model MP7-30 Mechanical MP8-30 Hydraulic MP10-30 Hydraulic
Capacity kN 300 300 300 300 300 300 300 300
Max. Machining Sheet (Repositioning) mm 1250×2500 1250×4000 1250×2500 1250×4000 1250×2500 1250×4000 1250×5000 1500×5000
Max. Weight kg 156 156 156 156 156 156 210 235
Max. Speed m/min 106 106 106 106 106 106 106 106
Max. Plate Thk mm 6.35 6.35 6.35 6.35 6.35 6.35 6.35 6.35
Max. Punching Dia . mm φ88.9 φ88.9 φ88.9 φ88.9 φ88.9 φ88.9 φ88.9 φ88.9
Die Qty. 32/ ※ 24 32/ ※ 24 32/ ※ 24 32/ ※ 24 32/ ※ 24 32/ ※ 24 32/ ※ 24 32/ ※ 24
Machining Accuracy mm ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1
Punching Frequency hpm 270 270 450/ ※ 600 450/ ※ 600 600/ ※ 450 600/ ※ 450 600/ ※ 450 600/ ※ 450
Frame
C-Double Frame C-Double Frame C-Double Frame C-Double Frame Straight Straight Straight Straight
O-type O-type O-type O-type
Control Axis 4/ ※ 3 4/ ※ 3 4/ ※ 3 4/ ※ 3 4/ ※ 3 4/ ※ 3 4/ ※ 3 4/ ※ 3
Max. Punching Dia . Of Rotary Station mm φ50.8 φ50.8 φ50.8 φ50.8 φ50.8 φ50.8 φ50.8 φ50.8
Air Pressure MPa 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55
Weight t 14 14.5 14.5 15 19.5 20 20.5 22
Outline Size mm 5340×2700
×2150
5340×4200
×2150
5340×2700
×2150
5340×4200
×2150
5400×2700
×2200
5400×4200
×2200
5400×4200
×2200
6100×4200
×2200
