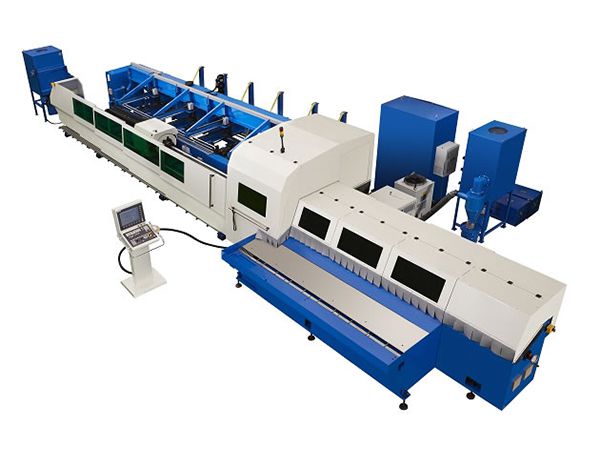

Fiber Laser Tube Cutting Machine

Fiber Laser Tube Cutting Machine

Laser Cutting for Tubes
ACCURL introduces its newest generation in tube and profile processing technology – the fiber laser tube cutting system. With over 30 years of experience in design and manufacturing of tube cutting machines, ACCURL is specialized in providing solutions for tube and pipe industries. The new laser tube cutting line is an ultimate solution that combines multiple machining processes in one system for maximum the flexibility, automation and performance.

  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine

Working Process of Fiber Laser Tube Cutting Machine
1. Automatic Tube Bundle Loading
2. Automatic Material Alignment
3. Automatic Feeding and Rotation

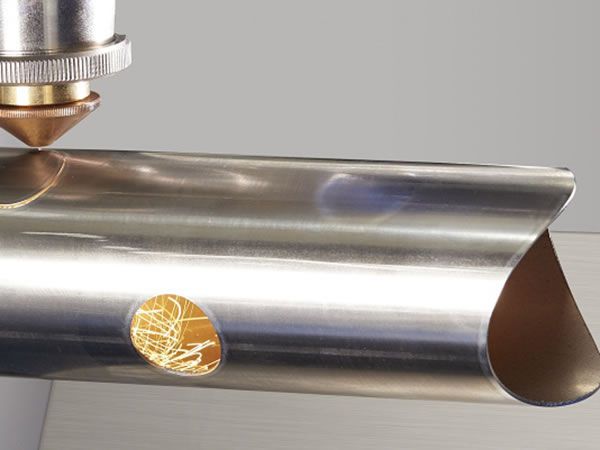

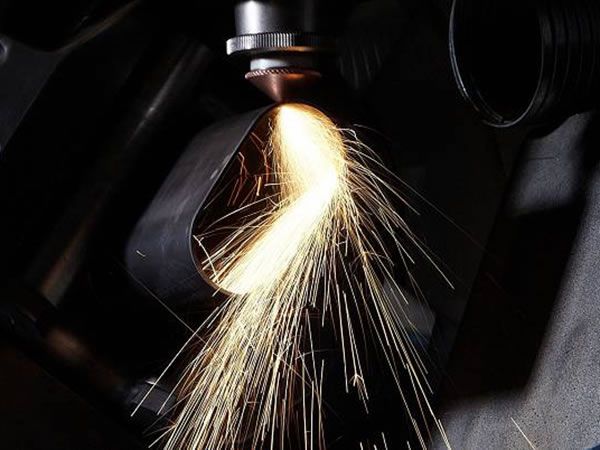

4. Fiber Laser Tube Cutting
5. Unloading

Features of Fiber Laser Tube Cutting Machine
1. Applicable for tubes of O.D. up to 152 mm
2. Cutting lengths up to 2000mm or 3000mm (longer lengths are also available according to request)
3. Wall thickness from 0.6 - 6.0mm (mild steel)
4. Automatic bundle loading system with material alignment
5. Automatic unloading system with conveyor
6. Equipped with 1.0 kW (standard) or 2.0 kW (optional) laser resonator
7. Multi-axis CNC controls with touch screen interface
8. SOCO CAD-CAM system for tubes and profiles with built-in nesting
9. SOCO i2 ( intelligent interface) 3D operation software

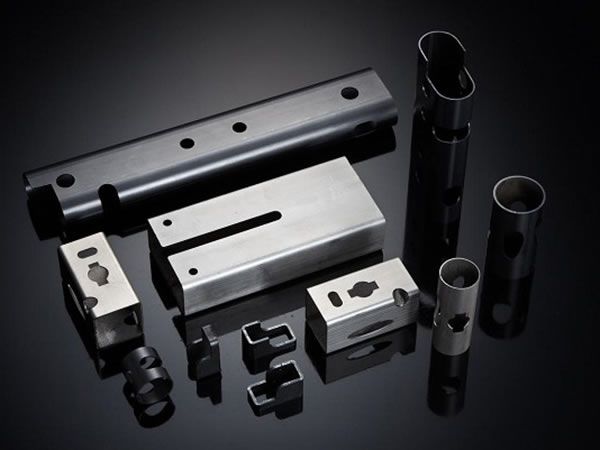

10. Cutting for round, square, rectangle and various profile shapes
11. Enclosed workstation for maximum safety
12. Automatic distance control
13. Laser resonator cooling and fume extraction systems
14. Automatic compensation after measuring of material
15. Seam detection before laser cutting ( optional )
16. Mandrel for spatter extraction ( optional )
17. Feeding & unloading length detection ( optional )
18. Automatic laser cutting path planning ( optional )

Application Range (mm)
1. Round tube: O.D.20 - 152
2. Square tube: 20 x 20 – 120 x 120
3. Rectangular tube: 20 x 20 and Max.O.D.150
4. Oval tubes
5. L-shaped and C-shaped profiles
6. Mild steel, stainless steel and aluminum materials

Specifications
Item Capacity
Rectangular Tube 20 x 20 - Max. Outer Circle O.D.150mm
Round Tube O.D.20 - 150mm
Square Tube 20 x 20 - 120mm x 120mm
