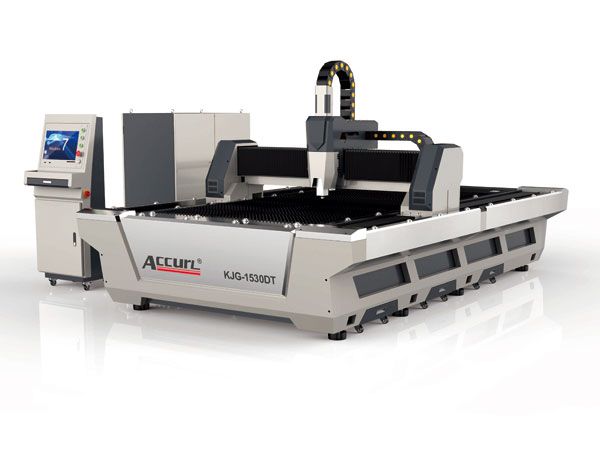

Laser Cutting Machine

ACCURL cutting machine is equipped with advanced laser generator, self-developed Gantry CNC machine and high strength welded structure. After being annealed under high temperature and processed by CNC milling machine, this laser cutting machine enjoys high rigidity and excellent stability. In addition, it is also outfitted with imported high precision and fast speed guide rail, as well as aluminum beam which possesses high strength and light weight. This lase cutting machinery is most often used for cutting metal sheets less than 8mm thick in high speed and high precision.

Laser Cutting Machine

Advantages of ACCURL Fiber Laser Cutting Machine
1. Compared to commonly used machines, this laser cutting equipment realizes 20%-30% saving on power.
2. It realizes high flexibility and precision for simple or complex parts.
3. The imported laser generator ensures a working time of over 100,000hrs.
4. The imported servo motor and gearing system leads to high precision cutting.
5. The machine ensures high quality cutting and requires no extra finishing process.
6. High working efficiency has been achieved, with a cutting speed of 10 meters per minute.
7. Non-contact cutting means no contamination of materials.
8. It's able to cut nearly all kinds of metal sheets.

Technical Parameters

Model KJG-1530DT -500I KJG-1530DT -700I KJG-1530DT -1000I
Medium of laser Continuous-wave ytterbium doped fiber
Laser wavelength 1070nm
Laser output power 500W 700W 1000W
Cutting area(mm) (L×W) 3000mm×1500mm
Max. cutting speed (m/min) 18 m/min 20 m/min 24 m/min
Min. width < 0.1mm < 0.1mm < 0.125mm
Cutting depth 0.2mm---5mm 0.2mm---6mm 0.2mm---8mm
Drive Imported servo motor
Transmission Imported Y-axis dual-drive gear rack, imported X-axis gear rack
Operation temp. 10 ~ 40℃
Electricity 380V/50Hz.60Amp
Cooling Mode Water cooling
Continuous working time 24 hours
Warranty 2 years on laser source
Weight About 3000kg
Size(mm) 4270mm×2420mm×1750mm (L×W×H)

Applicable Materials
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

Applicable Industry
It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamp and lantern manufacture, metal processing, ironware construction, etc.

Detailed Pictures

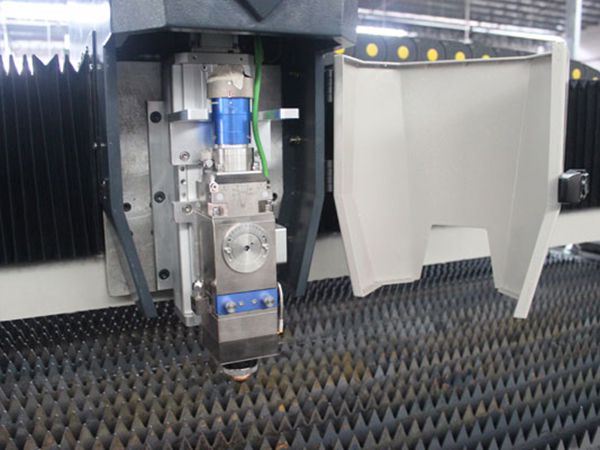

  • Laser Cutting Machine

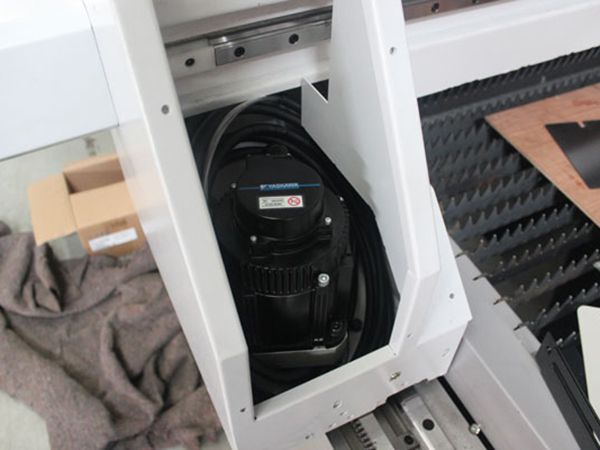

  • Laser Cutting Machine

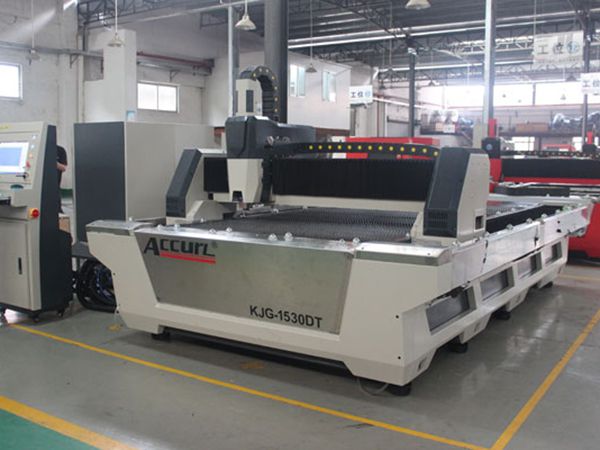

  • Laser Cutting Machine

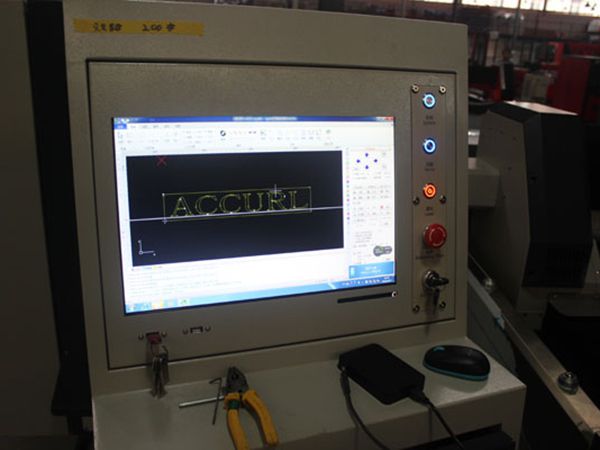

  • Laser Cutting Machine
