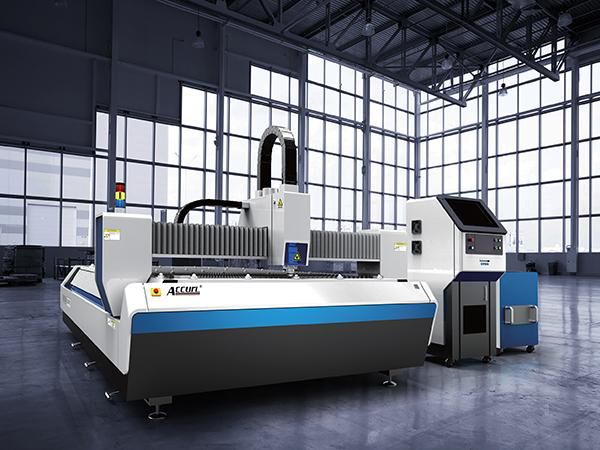

500W 700W 1000W Fiber Laser Cutting Machine (Sheet Metal Cutting)

500W 700W 1000W Fiber Laser Cutting Machine (Sheet Metal Cutting)

This incredibly fast and flexible fiber laser cutting machine is designed for ultra-high speed cutting of thin sheet metal materials. The laser cutter is able to cut through a wide range of ferrous and non-ferrous metals with excellent efficiency, minimizing the cost of operating the equipment.

User friendly Cypcut Windows CAD/CAM CNC control unit.
Unique features:
Maximum simultaneous positioning speed: 160m/min.
Acceleration speed: 14 m/ s2 (1.5G).
Precision: + - 0.05 mm.
Energy efficiency: greatly reduced power consumption.
IPG Resonator. Power output from 500w
RayTools cutter cutting head with power output up to 2kw.
Fully enclosed designed for maximum operator protection.
Effective high to low pressure gas exchange system.
High pressure cutting head with high precision capacitive sensor/
Automatic mechanized Nesting power output control function.
Automatic time and unit cost calculation function.
External network connectivity
Smoke extraction unit (included in series models).
Workpiece and trimming collection unit.
Dual proportional valve control system for different gas pressures and a high pressure cutting system.

Standard Equipment

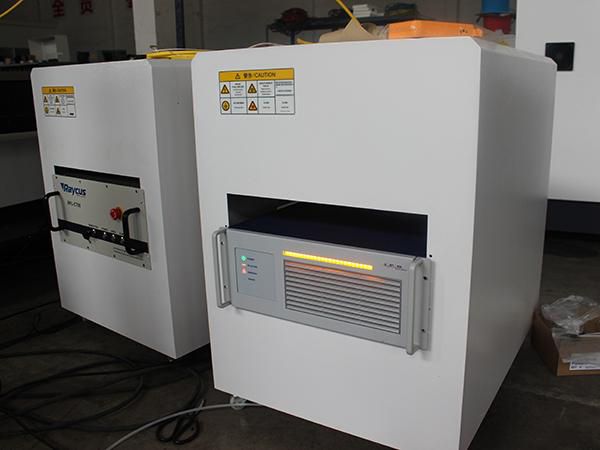

IPG YLR-500W,700W,1000W Ytterbium Laser Resonator
Linear Driven X, U and Y Axes

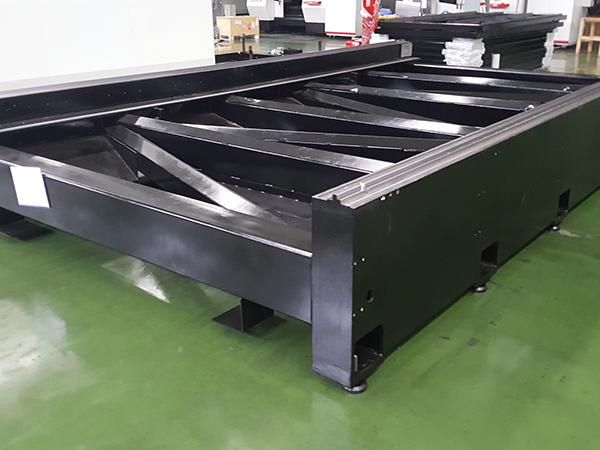

High Rigid Frame
Empower or FAGOR CNC Controller

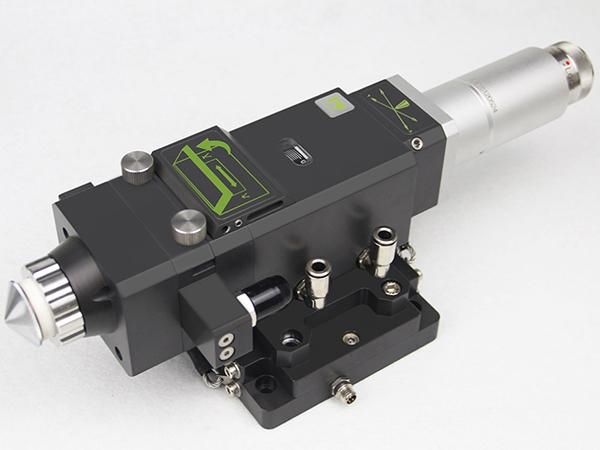

Precitec Cutting Head
Lantek Software
Shuttle Table
Chiller Unit
Proportional Gas and Piping System
Dust Filter
Compressor
Conveyor for Scraps

Specification
Model KJG-1530 / IPG 500w
Maximum cutting capacity Mild steeL 6mm
Stainless steel 2.5mm
Aluminum 1.5mm
Copper 1.0mm
Laser Power YLR-500Watt
Max running speed 40/min
Work piece dimensions 1500 x 3000mm
Rapid traverse (X and Y axis) 105 m/min
Acceleration 1.2G (12m/s2)
Absolute positioning accuracy ± 0.03 mm
Max. load capacity 1550 kg
Fume extractor 1000 m3/hour
Laser Cutting Head RayTools BM110 from Switzerland
Feed rate Programmable up to 30 m/min.
Applied Materials Thin mild steel, Stainless steel, Aluminum, Copper plate
Model KJG-1530 / IPG 700w
Maximum cutting capacity Mild steeL 8mm
Stainless steel 3mm
Aluminum 2mm
Copper 1.0mm
Laser Power YLR-700Watt
Max running speed 40/min
Work piece dimensions 1500 x 3000mm
Rapid traverse (X and Y axis) 105 m/min
Acceleration 1.2G (12m/s2)
Absolute positioning accuracy ± 0.03 mm
Max. load capacity 1550 kg
Fume extractor 1000 m3/hour
Laser Cutting Head RayTools BM110 from Switzerland
Feed rate Programmable up to 30 m/min.
Applied Materials Thin mild steel, Stainless steel, Aluminum, Copper plate
Model KJG-1530 / IPG 1000w
Maximum cutting capacity Mild stee 10mm
Stainless steel 4mm
Aluminum 3mm
Copper 1.5mm
Laser Power YLR-1000Watt
Max running speed 40/min
Work piece dimensions 1500 x 3000mm
Rapid traverse (X and Y axis) 105 m/min
Acceleration 1.2G (12m/s2)
Absolute positioning accuracy ± 0.03 mm
Max. load capacity 1550 kg
Fume extractor 1000 m3/hour
Laser Cutting Head RayTools BM110 from Switzerland
Feed rate Programmable up to 30 m/min.
Applied Materials Thin mild steel, Stainless steel, Aluminum, Copper plate

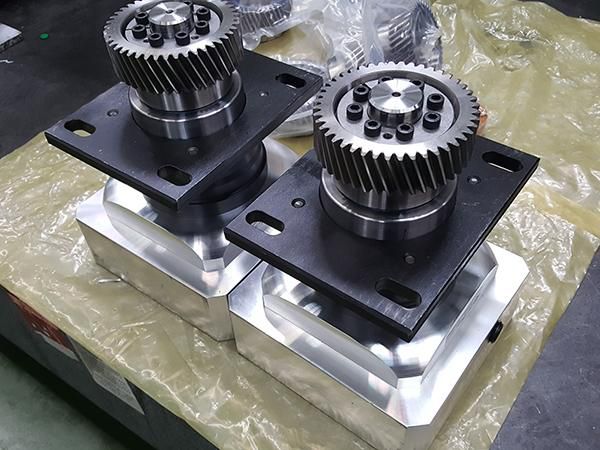

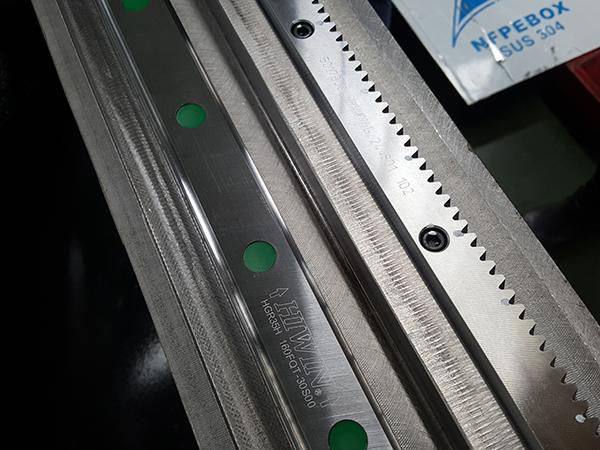

Detailed Pictures
  • 500W 700W 1000W Fiber Laser Cutting Machine (Sheet Metal Cutting)
  • 500W 700W 1000W Fiber Laser Cutting Machine (Sheet Metal Cutting)
  • 500W 700W 1000W Fiber Laser Cutting Machine (Sheet Metal Cutting)
  • 500W 700W 1000W Fiber Laser Cutting Machine (Sheet Metal Cutting)
  • 500W 700W 1000W Fiber Laser Cutting Machine (Sheet Metal Cutting)
