When a Polish manufacturer went to market for an automated pole manufacturing solution, Accurl met their needs with the 40' fiber laser and tandem system.

The solution included a CNC plasma cutting machine and MB8 600 ton 6000mm tandem press brakes, which can produce nine 40' light poles per hour without any operator. Here are some other components of the system:

1. 6'6” x 40' x CNC plasma cutting machine
2. 3D cutting head
3. Vacuum load-unload system
4. Blank orientation forming area
5. Transfer conveyors
6. Feed system for tandem brake
7. Pole discharge system
8. Run out conveyor for formed pole

Functions
1. Bending steel poles

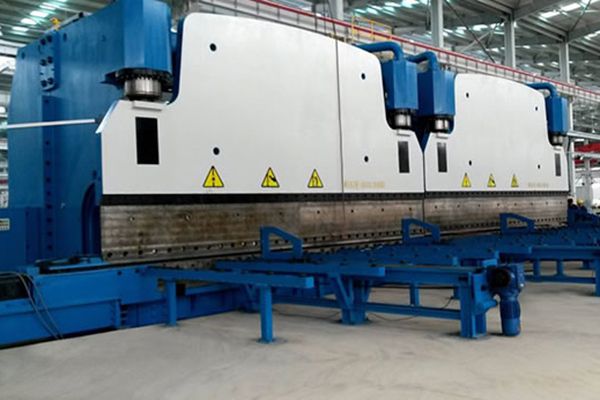

2. Hydraulic CNC tandem press brake with 16mm thickness and 16m length.
3. Select and use Delem DA52S CNC control system
4. Model: 2-MB8-2×600 ton 6000 CNC tandem press brake
5. Bending force: 16000KN
6. Max width of steel sheet to bend: 16000mm
7. Max thickness of steel sheet to bend: 16mm

Optional Devices
1. Motorized front sheet supporter + front feeder
2. Side material unloading system
3. Side material pusher
4. Front crane to lift the material
5. Different kind of mould
