CNC Plasma Cutting Machine (Cutting Metal and Steel using HyPerformance Plasma Source)

CNC Plasma Cutting Machine (Cutting Metal and Steel using HyPerformance Plasma Source)

Thes CNC plasma cutting machines are designed for cutting steel and other metals with high efficiency using a Hyperformance plasma source. The plasma cutting machine provides flexible cutting solutions with its high powered plasma cutting head which offers excellent performance at a low operating cost. The CPL series is designed for long-term use without consumable part or accuracy loss.

Standard Configuration:
Hypertherm EDGE® Pro CNC
HyPerformance® HPR130XD®,® HPR260XD®,® HPR400XD® , ® HPR800XD® plasma source
Arc Glide™ THC automatic height control system
Dual side AC servo Y motorization with direct planetary gear box, helical rack and pinion drive system
X and Y axis precision linear rail guide ways in
High speed torch lifter with automatic arc voltage height control
Fully enclosed hose and cable carriers
Integrated downdraft table with multi zone CNC control
TurboNest® Cad/Cam Software
Magnetic torch anti-collision protection system
Laser guided plate alignment

Optional Equipment:
Hypertherm Hydefinition Plasma HPR260XD, HPR400XD, HPR800XD
Hypertherm automatic gas console
Oxy cutting station with automatic ignition system
Manual angle cutting apparatus for oxygen and plasma
True Hole™ Technology with EDGE® Pro CNC Controller
5 axis plasma cutting technology:
Esa Kvara cnc controller
Automatic gas console
Lantek Expert II software
Angle cutting head
Lantek Expert II Cad/Cam software
According to the working conditions cooling fan or heater can be add to the electrical panel
Conformity of European Union CE

HPRXD Plasma Selections Working Data
HPR130XD HPR260XD HPR400XD HPR800XD
Mild steel cut capacity
Dross free 16 mm 32 38 38
Production pierce 32 mm 38 50 50
Maximum cutting capacity 38 mm 64 80 80
Stainless steel cut capacity
Production pierce 20 mm 32 45 75
Maximum cutting capacity 25 mm 50 80 160
Aluminum cut capacity
Production pierce 20 mm 32 45 75
Maximum cutting capacity 25 mm 50 80 160
Specification
Type Width Length Height Cutting Width Cutting Length
mm mm mm mm mm
CPL- 1530 2550 4550 2250 1500 3000
CPL- 1540 2550 5650 2250 1500 4000
CPL- 2040 3700 5650 2250 2000 4000
CPL- 2540 4250 5650 2250 2500 4000
CPL- 2560 4250 8050 2250 2500 6000

*ACCURL offers consumables, parts and Hypertherm materials at very competitive prices.

Detailed Pictures

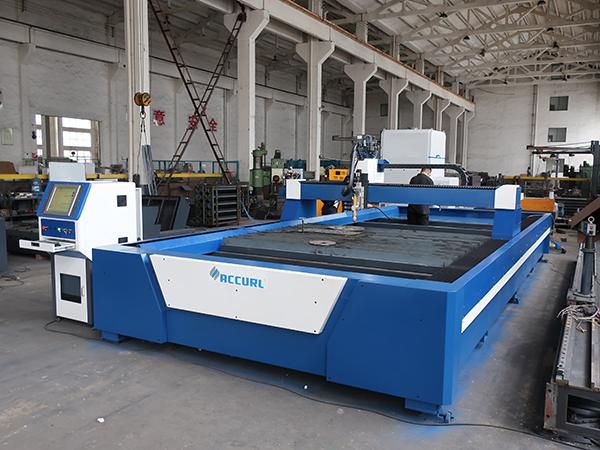

  • CNC Plasma Cutting Machine HPR130XD CNC Plasma Cutting Machine HPR130XD

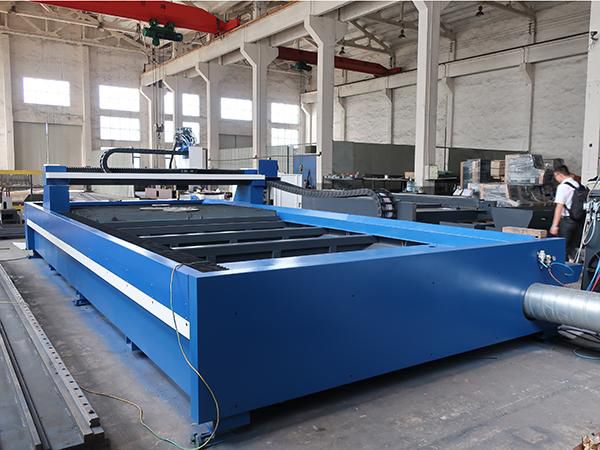

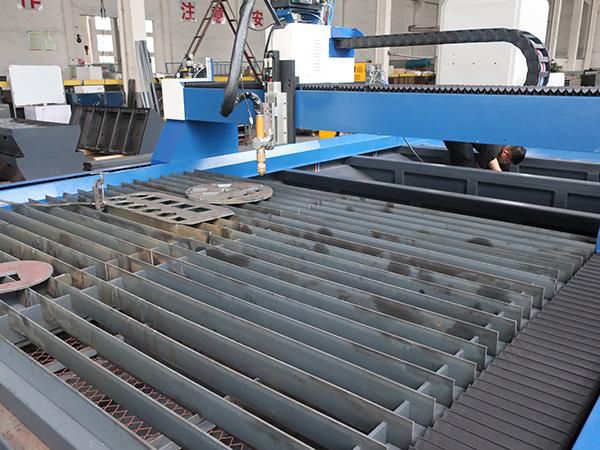

  • Cutting table for plasma cutting machineCutting table for plasma cutting machine

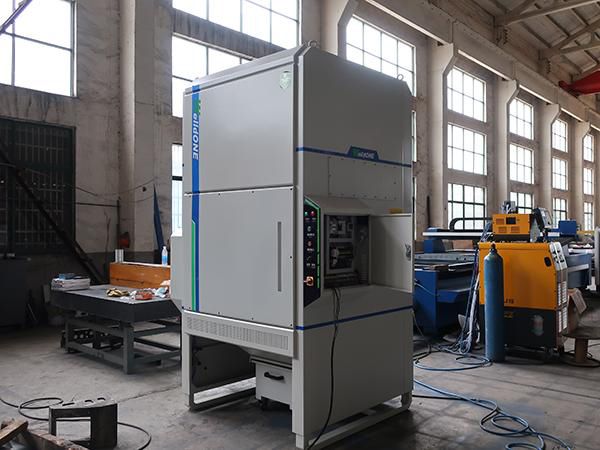

  • Gas-dust extraction filter for plasma cutting machineGas-dust extraction filter for plasma cutting machine

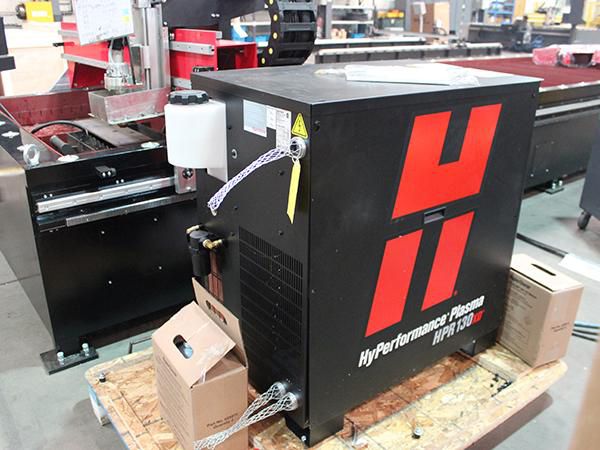

  • HyPerformance HPR130XD Plasma SourceHyPerformance HPR130XD Plasma Source
